3.3. Console PFC800E000

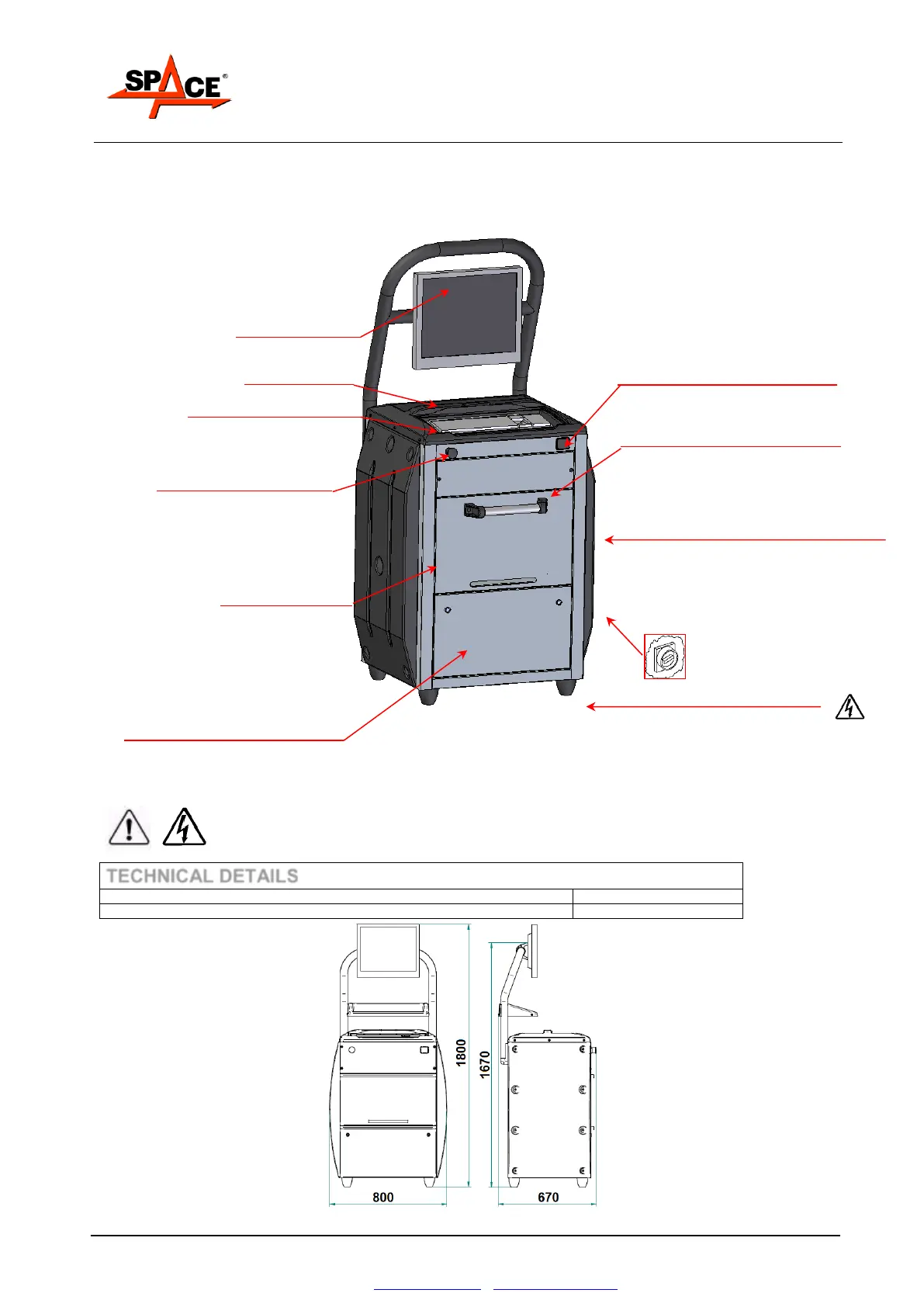

Figure 8
IMPORTANT!: The rear door leading to the switchboard and the front panel leading to the CPU
board and power board can only be opened by authorized personnel these
compartments contain high-voltage components which can prove hazardous to
unskilled operators.
1) Monitor for displaying the choice and
sequence of test stages, initial setting,
real-time display of the test and of the
results; monitor size 22”.
Correct luminosity and contrast are
factory set.
2) 102-key PC type keyboard
10) Remote-control infrared receiver
6) Pictograms affixed to the machine:
Shock hazard
9) On the rear is door with a lock to key on
which the main switch is present, (part. 8)
Inside of which the switchboard is housed
for the powering of the entire system and
the starter of the motors.
7) On the front is a panel with a lock to key.
Inside the door is a shelf with the CPU board
for managing the signals from the different
measurement devices and the power
supply board.
8) Main switch / emergency device (in
the back side)
11) An IBM compatible PC can be
accessed featuring HD, an SVGA
graphic card, an RS232 serial port
3) Roller stop button. Once this has been
pressed, to reset operation, it must be
turned clockwise.
5) Printer housed behind the central door.
The test results are printed on an ink jet
printer for A4 format sheets.
