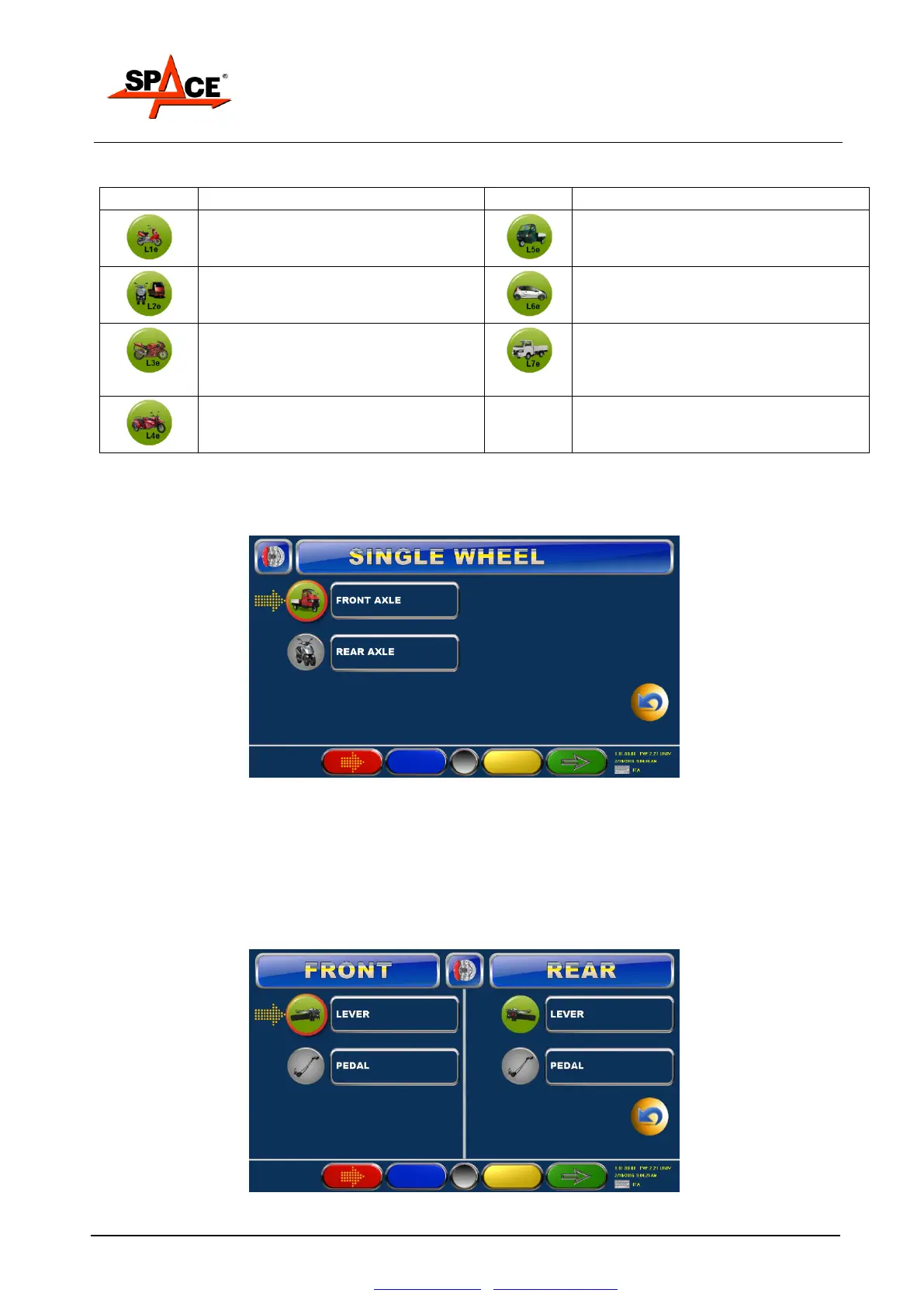

Legend of Figure 58 :
CAT
DESCRIPTION
CAT
DESCRIPTION
L1e: 2 wheels vehicle with cubic
capacity <= 50 cc or max speed <= 45
km/h
L5e: 3 symmetrical wheels vehicles with
cubic capacity > 50 cc or max speed >
45 km/h
L2e: 3 wheels vehicle with cubic
capacity <= 50 cc or max speed <= 45
km/h
L6e: light quadricycles <= 350 kg <= 50
cc or max speed <= 45 km/h ,
maximum nominal power <= 4 kW
L3e: 2 wheels vehicle with cubic
capacity > 50 cc or max speed > 45
km/h
L7e: light quadricycles <= 400 kg (550
kg for freight transport) <= 15 kW
L4e: vehicle with 3 asymmetrical
wheels with cubic capacity > 50 cc or
max speed > 45 km/h
Select the category and press “START/F4”” to confirm and proceed.
8.1.3. Type of three wheels vehicle
Figure 59
 Select with “F1 the TYPE of THREE WHEELS VEHICLE:
 One front wheel and two rear wheels
 Two front wheels and one rear wheel.
Press “F4” to confirm and proceed.
8.1.4. Service commands for the front and the rear axle
Figure 60
