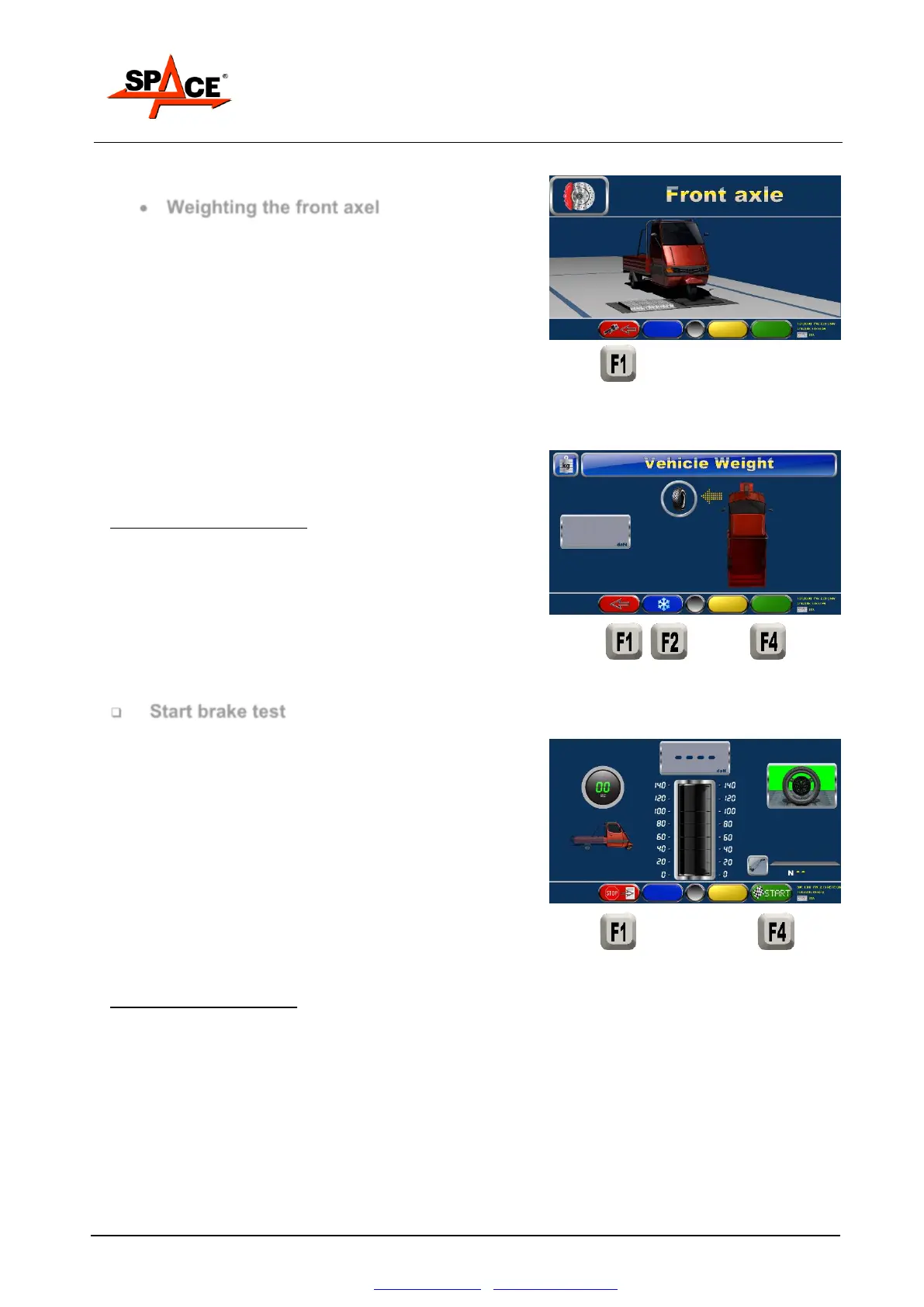

8.2. Brake test on the front axel

Weighting the front axel
Cover the roller not used in the test of the single wheel,
drive the vehicle on the roller, as shown by the program.
NOTE: It’s possible to set the system so that it’s used
the left or the right roller for this test.
 Press “F1” to abort the test
Wait for the axel weight to be shown.
After few seconds of stable weight, the system will
automatically store the axel weight.
POSSIBLE SELECTIONS:
 The operator can press “F2” to stop the automatic
continuation of the test and proceed manually.
 Press “F1” to abort the test.
 Press “START/F4” to proceed.
Figure 64
Figure 65

Start brake test
The icon of the right roller is green because the roller is
still.
 Press “START” to start the rollers. The roller icon
becomes red when it start to move.
The test stops and the forces at the locking are stored
when:
 Roller locking for the slipping of the wheel.
 Reaching of the maximum effort on the pedal or at the
lever.
 Manual stop with the keyboard on the effort lever
measurer, remote control or keyboard with F1 or
STOP.
POSSIBLE SELECTION:
The operator can see the summary page pressing “F1”.
Figure 66
