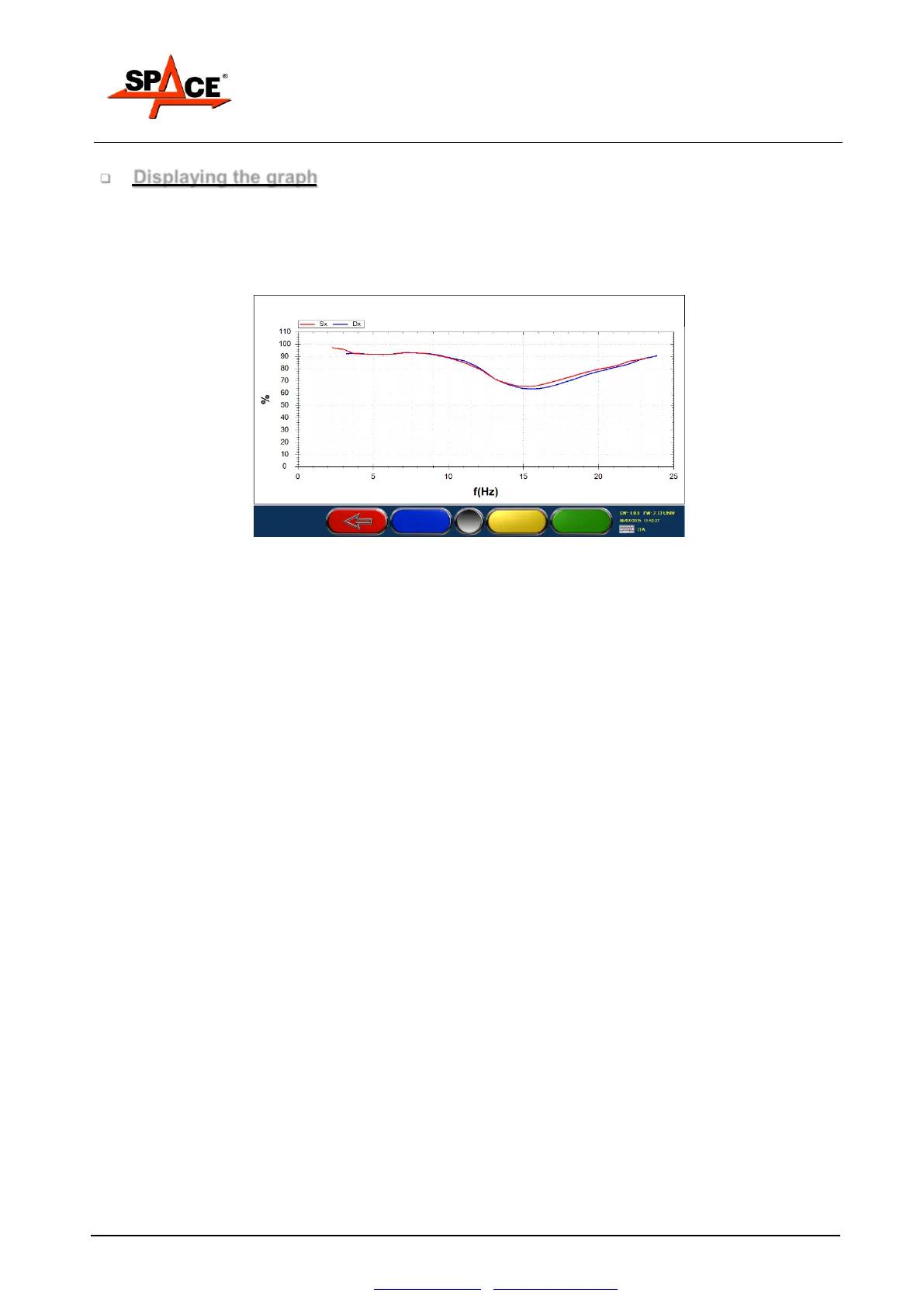

Displaying the graph
The adherence graph shows: the evolution of the percentage measurements detected on the left
and right wheels depending on the frequency of platform movement.
The lowest point of the curve shows the frequency at which minimum weight on the wheel is
detected; this frequency, called resonance frequency, is normally 12 18 Hz.
Figure 48
To exit from graph display, press the STOP/F1 key on the remote control. The monitor will once
again show the page with the numeric results of the suspension test.
At this point, the operator can store the test just performed by pressing ENTER/F3 or repeat it by
pressing START/F4.
