Chapter 3: LED Indicators
ATM TeraMetrics Module LEDs
74 | SmartBits 600x/6000x Installation Guide
ATM TeraMetrics Module LEDs
Every SmartBits ATM TeraMetrics module has its own LEDs, which are located on the
left side of each module’s front panel (see Figure 3-3). Although the LEDs are similar for
all modules, some vary according to the features of each module. Ethernet module LEDs
are described in Table 3-3.

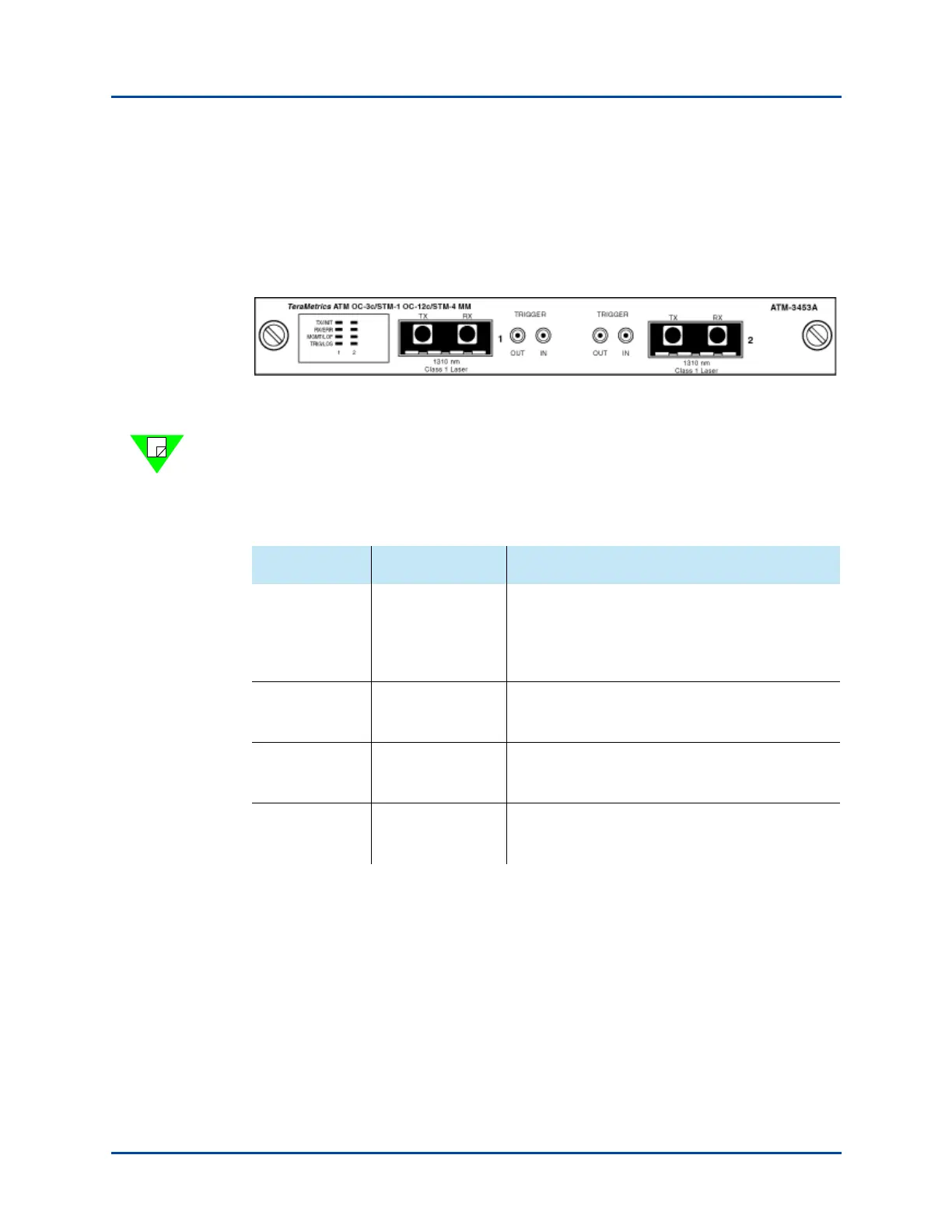

Figure 3-3. Example of LED Locations on an ATM TeraMetrics Module
Note: ATM TeraMetrics modules are listed in Table 1-3 on page 18. For complete
descriptions of the ATM TeraMetrics modules, refer to the SmartBits System Reference
manual.
Table 3-3. LED Functions for ATM TeraMetrics Modules
LED Color/Status Description
TX/INIT Green
Red
Frame is transmitting. LED flashes briefly for each
frame transmitted. If continuous transmission,
light is in steady on condition.
Link is not ready.
RX/ERR Green
Red
Receiving frame.
SONET/SDH alarm active.
MGMT/LOF Green
Red
Receiving management frame.|
Loss of Frame.
TRIG/LOS Green
Red
Trigger event.
Loss of signal.
