Chapter 3: LED Indicators
LEDs on Ethernet SmartMetrics/TeraMetrics XD Modules
SmartBits 600x/6000x Installation Guide | 77
LEDs on Ethernet SmartMetrics/TeraMetrics XD Modules
Every SmartBits Ethernet Dual-media XD module has its own LEDs, which are located on
the left side of each module’s front panel (see Figure 3-5). The LEDs for the Ethernet
Dual-media modules have their own features and are described in Table 3-5.

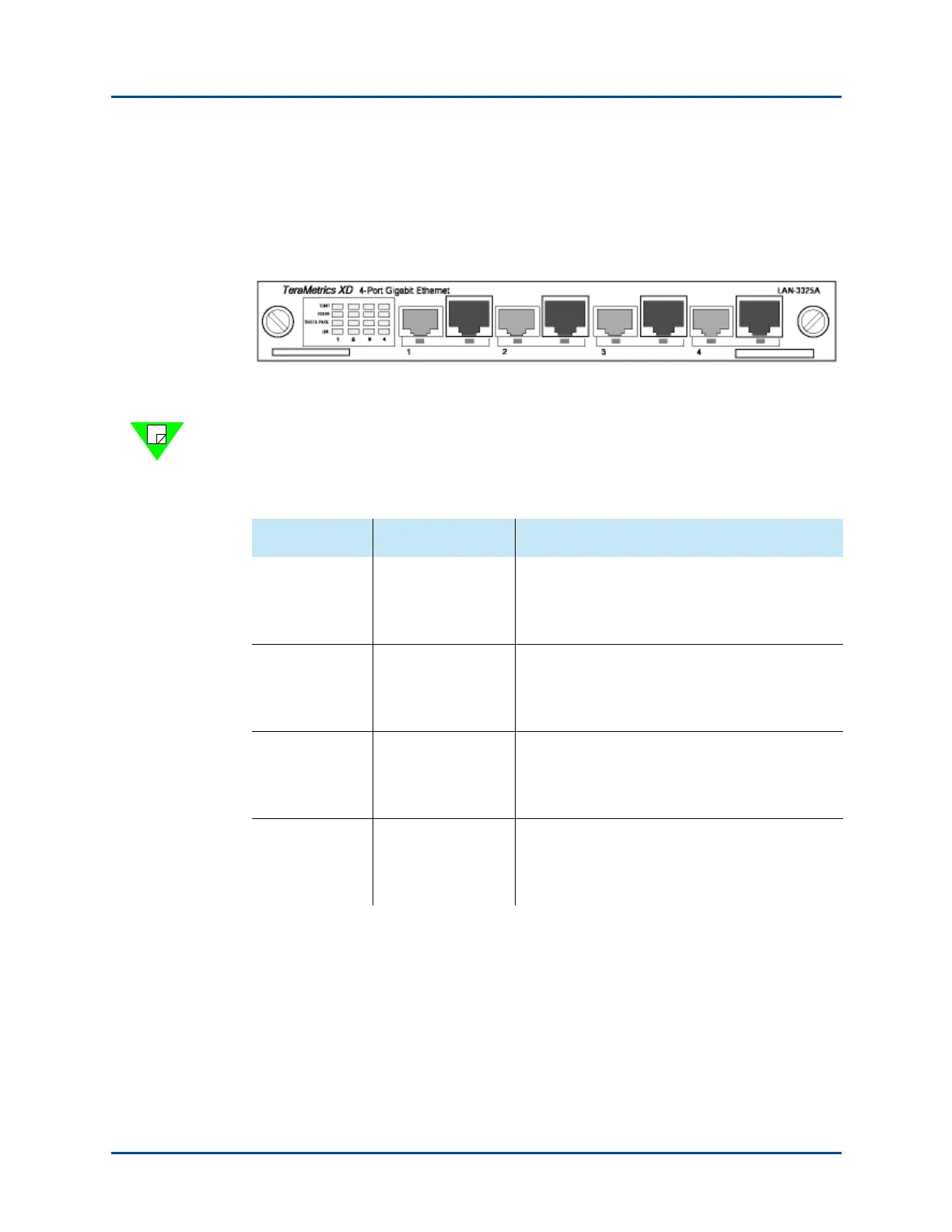

Figure 3-5. Example of LED locations on an Ethernet Dual-media XD Module
Note: SmartMetrics/TeraMetrics XD modules are listed in Table 1-3 on page 18. For
complete descriptions of the XD modules, refer to the SmartBits System Reference
manual.
Table 3-5. LED Descriptions for Ethernet Dual-media Modules
LED Color/Status Description
TX/INIT Red
Green
Off
Port not initialized.
Transmitting frame.
Ready.
RX/ERR Red
Green
Off
Receiving CRC errors.
Receiving frame.
Collision.
TRIG/COLL-
PAUSE
Yell ow
Green
Off
Collision/paused.
Receiving trigger.
No pause condition or trigger.
LINK Yellow
Green
Off
Autonegotiation in progress.
Link initialized.
No link.
