Chapter 3: LED Indicators
Ethernet Module LEDs
SmartBits 600x/6000x Installation Guide | 75
Ethernet Module LEDs
Every SmartBits Ethernet module has its own LEDs, which are located on the left side of
each module’s front panel (see Figure 3-4). Although the LEDs are similar for all
modules, some vary according to the features of each module. Ethernet module LEDs are
described in Table 3-4.

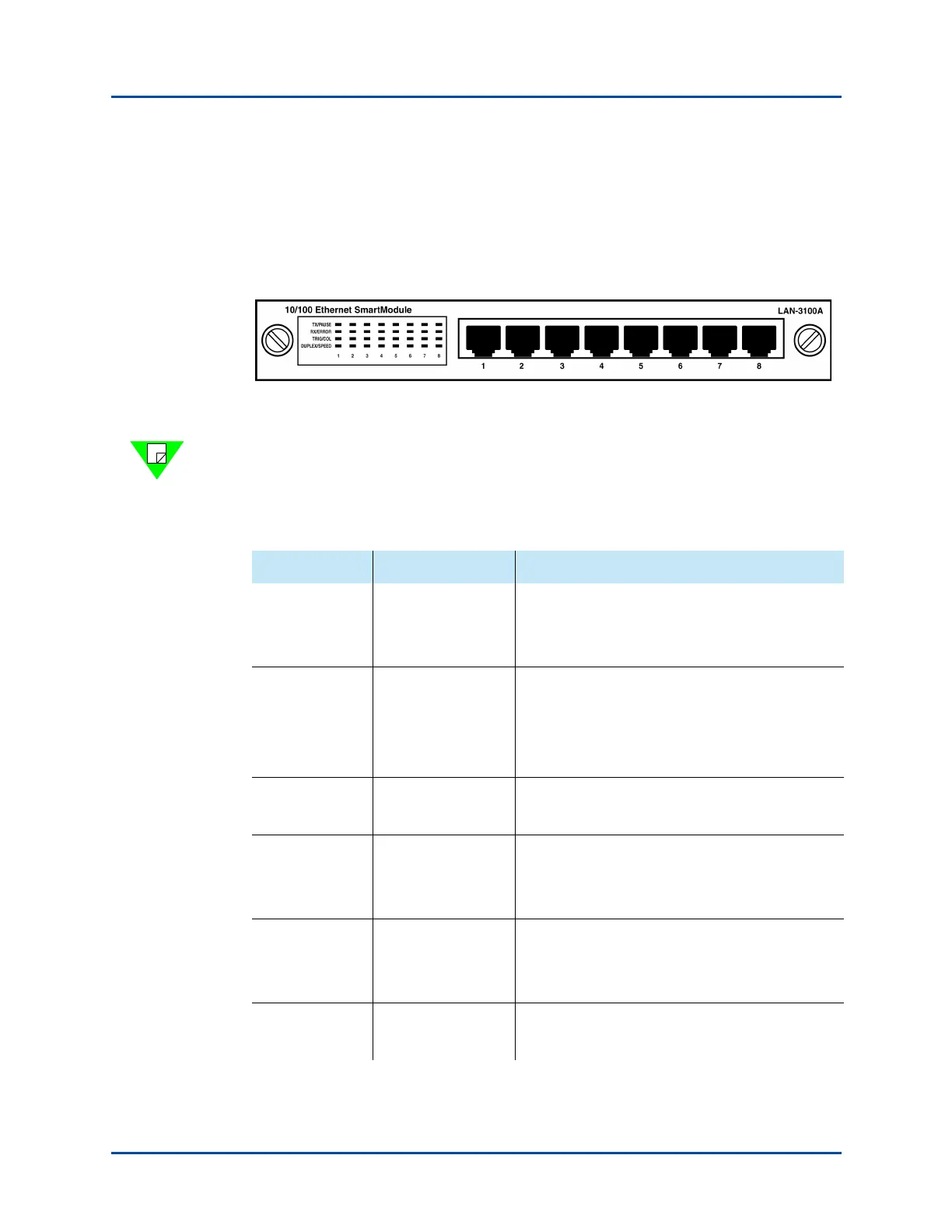

Figure 3-4. Example of LED Locations on an Ethernet Module
Note: Ethernet modules are listed in Table 1-3 on page 18. For complete descriptions of
the Ethernet modules, refer to the SmartBits System Reference manual.
Table 3-4. Ethernet Module LEDs
LED Color/Status Description
100M PAUSE Green
Yell ow
Off
100 Base-TX operation.
Receiving PAUSE frames.
10 Base-T operation.
DUPLEX/
SPEED
Green
Yell ow
Green
Yell ow
Solid green for 100 Mbps Full Duplex.
Solid yellow for 100 Mbps Half Duplex.
Flashes green for 10 Mbps Full Duplex.
Flashes yellow for 10 Mbps Half Duplex.
LINK Green
Yell ow
Full-duplex with valid link.
No link detected.
LINK/DPLX Green
Yell ow
Red
Full-duplex with valid link.
Half duplex with valid link.
No link detected.
LINK SPEED Green
Red
Off
Link up at 1 Gbps.
Link up at 2 Gbps.
No GBIC or loss of signal.
LINK 1000
LINK 100
Green
Yell ow
Autonegotiated at 1000 Mbps.
Autonegotiated at 100 Mbps.
