Chapter 3: LED Indicators
Fibre Channel Module LEDs
SmartBits 600x/6000x Installation Guide | 79
Fibre Channel Module LEDs
Every SmartBits Fibre Channel module has its own LEDs, which are located on the left
side of each module’s front panel (Figure 3-7). Although the LEDs are similar for all
modules, some vary according to the features of each module. Fibre Channel module
LEDs are described in Table 3-7.

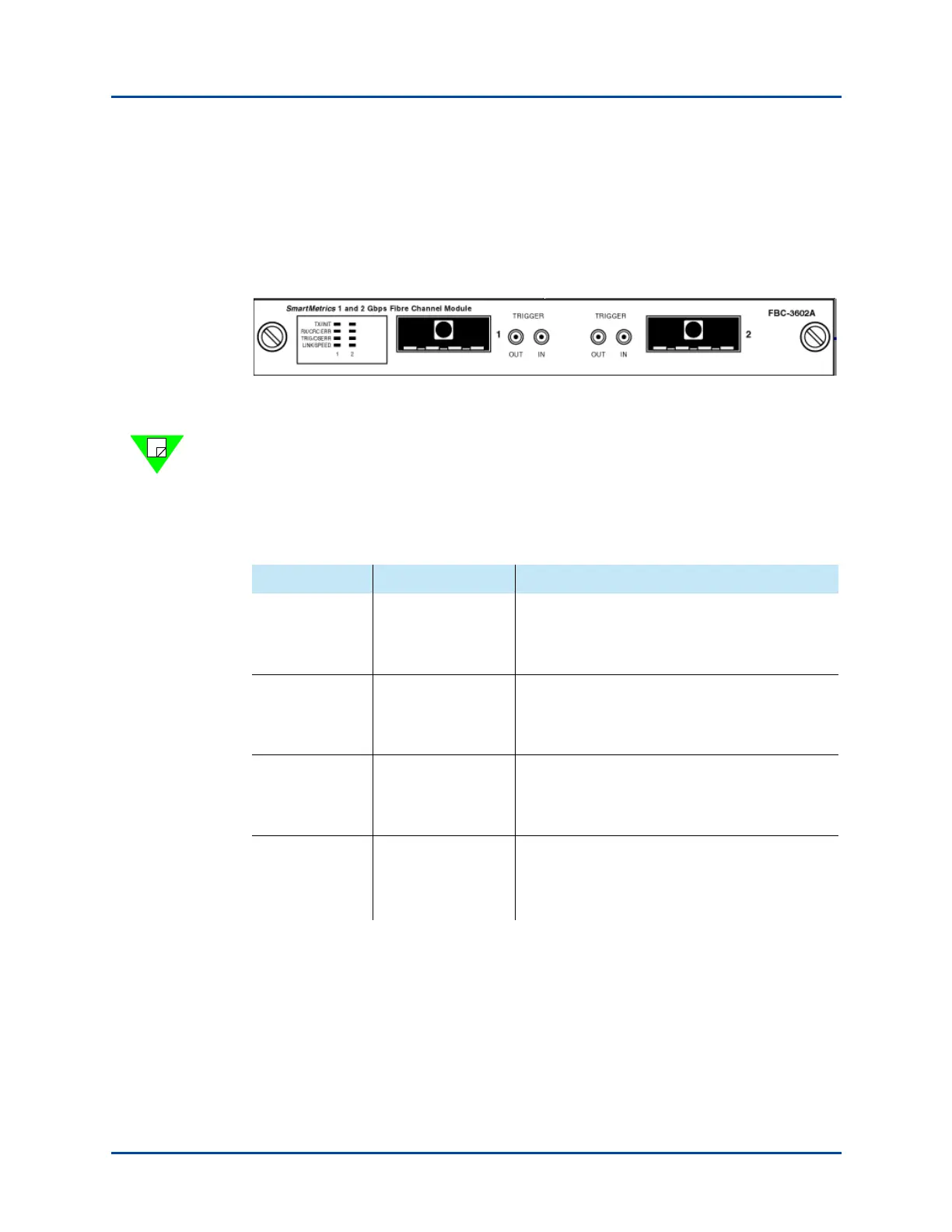

Figure 3-7. Example of LED Location on a Fibre Channel Module
Note: Fibre Channel modules are listed in Table 1-3 on page 18. For complete
descriptions of the Fibre Channel modules, refer to the SmartBits System Reference
manual.
Table 3-7. Fibre Channel Module LEDs
LED Color/Status Description
TX/INIT Red
Green
Off
Port not initialized.
Frame is transmitting.
Ready.
RX/CRCERR Red
Green
Off
Receiving CRC errors.
Receiving frame.
Not receiving.
TRIG/OSERR Red
Green
Off
Receiving encoding errors.
Receive trigger.
No OS error or trigger.
LINK SPEED Green
Red
Off
Link up at 1 Gbps.
Link up at 2 Gbps.
No GBIC or loss of signal.
