Chapter 3: LED Indicators
SmartBits 600x/6000x Chassis Front Panel LEDs
70 | SmartBits 600x/6000x Installation Guide
SmartBits 600x/6000x Chassis Front Panel LEDs
Every SmartBits 600x/6000x chassis has LEDs located on the front panel of the chassis
(see Figure 3-1). On the SmartBits 600x chassis, the LEDs are located on the left side on
the front panel; on the SmartBits 6000x chassis, they are located on the lower left side of
the front panel.
The functions of the LEDs are the same for the SmartBits 600x/6000x chassis with the
exception of the SmartBits 6000C chassis which has an additional TEMP LED.

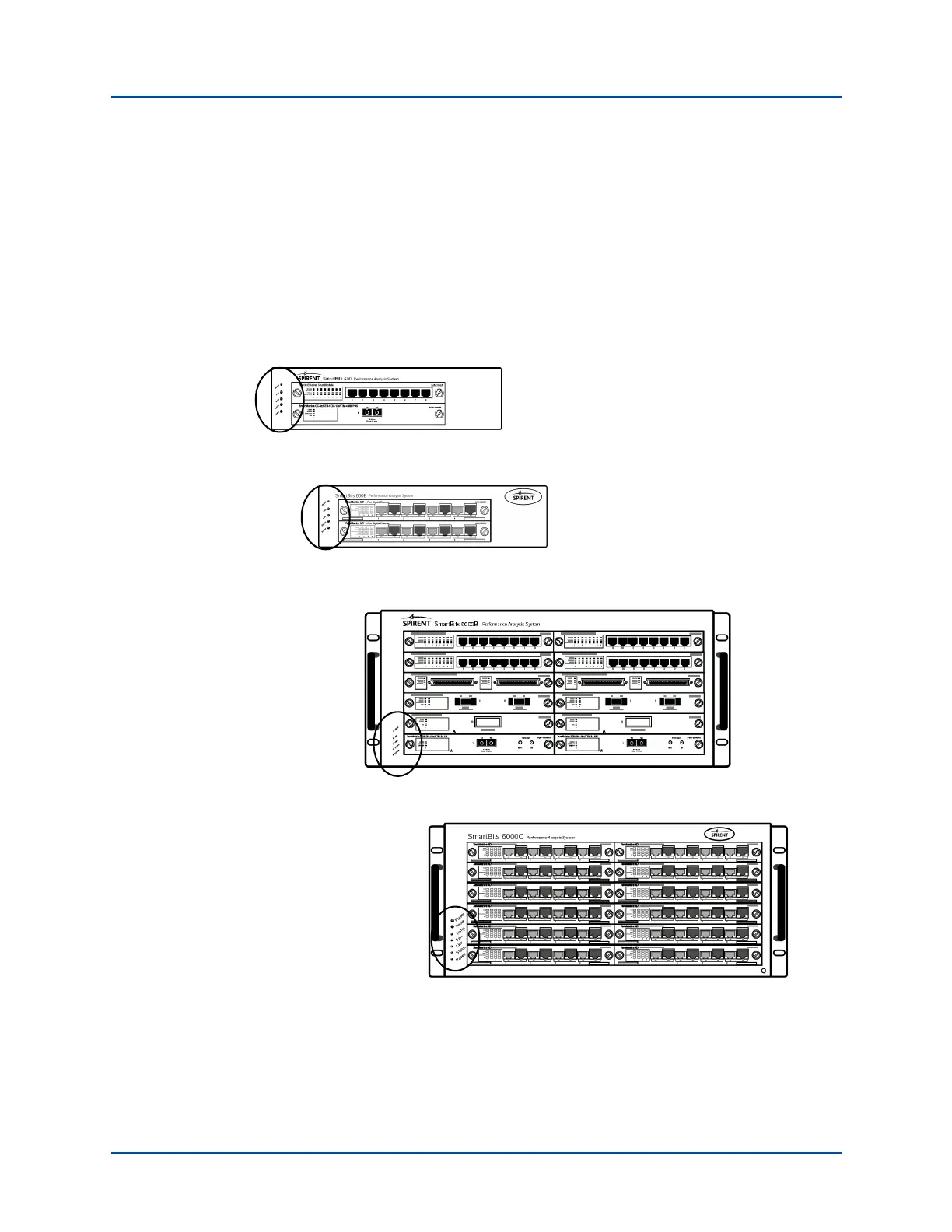

Figure 3-1. SmartBits 600x/6000x Chassis LED Locations (Front Panel)
SmartBits 600
SmartBits 6000B
SmartBits 6000C
SmartBits 600B
