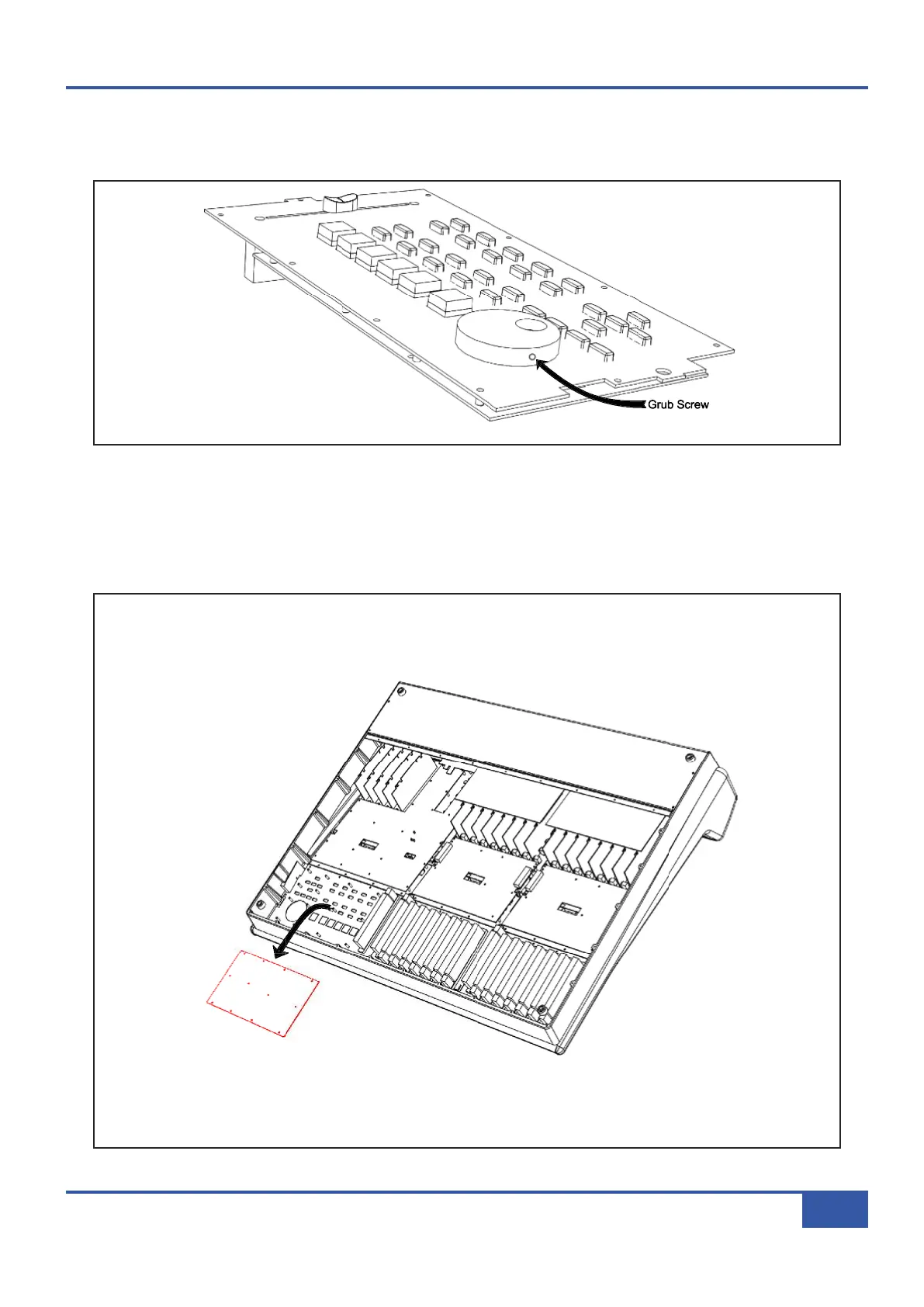

• Using a 2mm Hex driver loosen the grub screw in the jog wheel and then remove. Take care not to lose the plastic washer
underneath the jog wheel.
• Follow instruction #1 for the removal of the base plate.
• Disconnect Loom J and the two master fader connections from the motion control assembly.
• Remove the 12 screws securing the motion control assembly to the front plate.
• Replace with new assembly and reassemble, take care when refitting the jog wheel to ensure free rotation.
