ST STM32F103 series Reference Manual

Flexible static memory controller (FSMC) RM0008
513/1128 DocID13902 Rev 15
Mode 2/B - NOR Flash

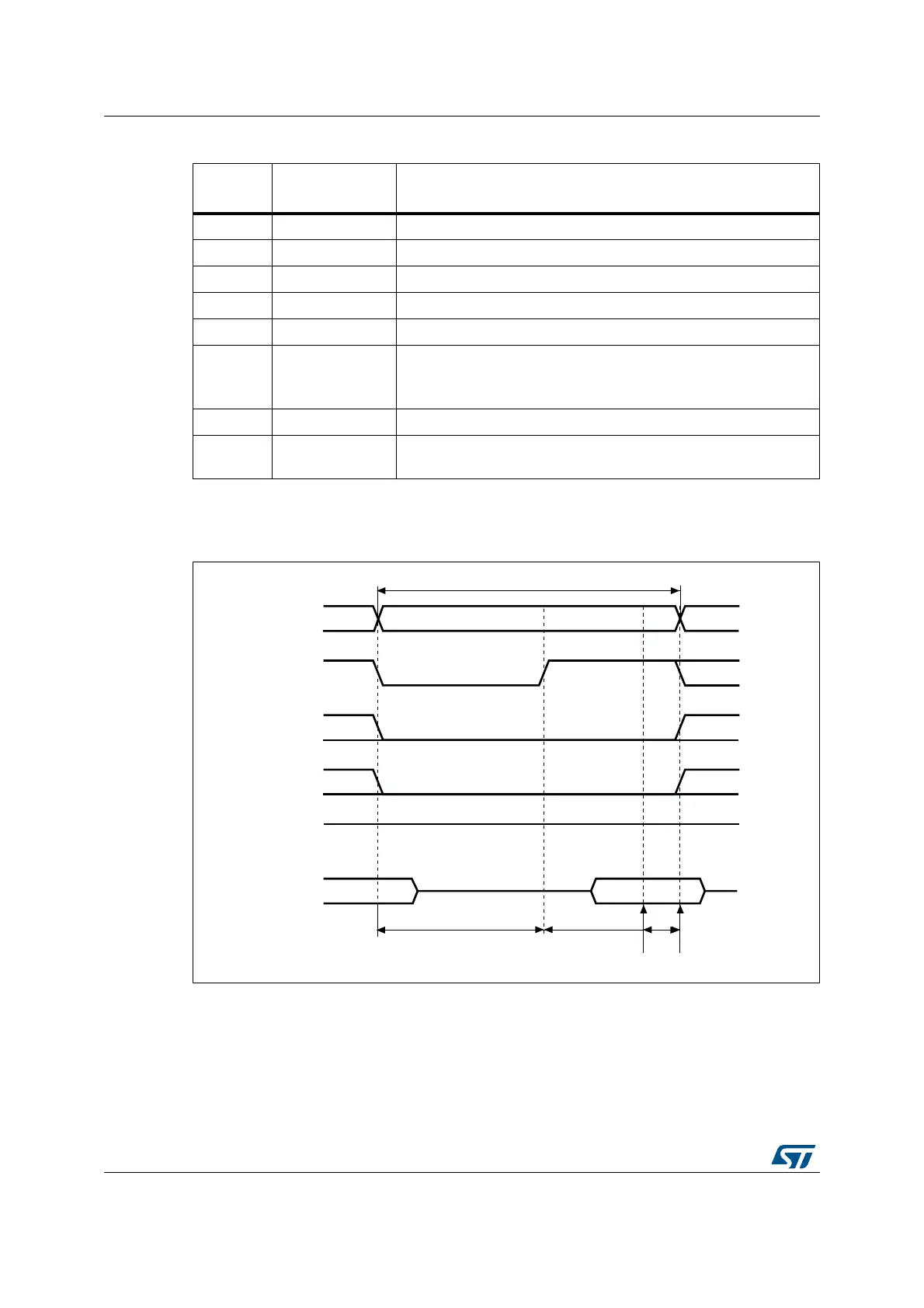

Figure 191. Mode2 and mode B read accesses
Table 113. FSMC_BWTRx bit fields
Bit
number
Bit name Value to set
31:30 Reserved 0x0
29-28 ACCMOD 0x0
27-24 DATLAT Don’t care
23-20 CLKDIV Don’t care
19-16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK)
15-8 DATAST
Duration of the second access phase (DATAST+1 HCLK cycles for
write accesses, DATAST+3 HCLK cycles for read accesses).
This value cannot be 0 (minimum is 1).
7-4 ADDHLD Don’t care
3-0 ADDSET
Duration of the first access phase (ADDSET+1 HCLK cycles) for
write accesses.
A[25:0]
NOE
(ADDSET +1) (DATAST + 1)
Memory transaction
Data strobe
NEx
D[15:0]
HCLK cycles HCLK cycles
NWE
NADV
data driven
by memory
ai14724c
High
2 HCLK
cycles
Data sampled
