RM0008 General-purpose timers (TIM9 to TIM14)
460
16.2.2 TIM10/TIM11 and TIM13/TIM14 main features
The features of general-purpose timers TIM10/TIM11 and TIM13/TIM14 include:
• 16-bit auto-reload upcounter
• 16-bit programmable prescaler used to divide the counter clock frequency by any factor
between 1 and 65536 (can be changed “on the fly”)
• independent channel for:
– Input capture
– Output compare
– PWM generation (edge-aligned mode)
– One-pulse mode output
• Interrupt generation on the following events:
– Update: counter overflow, counter initialization (by software)
– Input capture
– Output compare

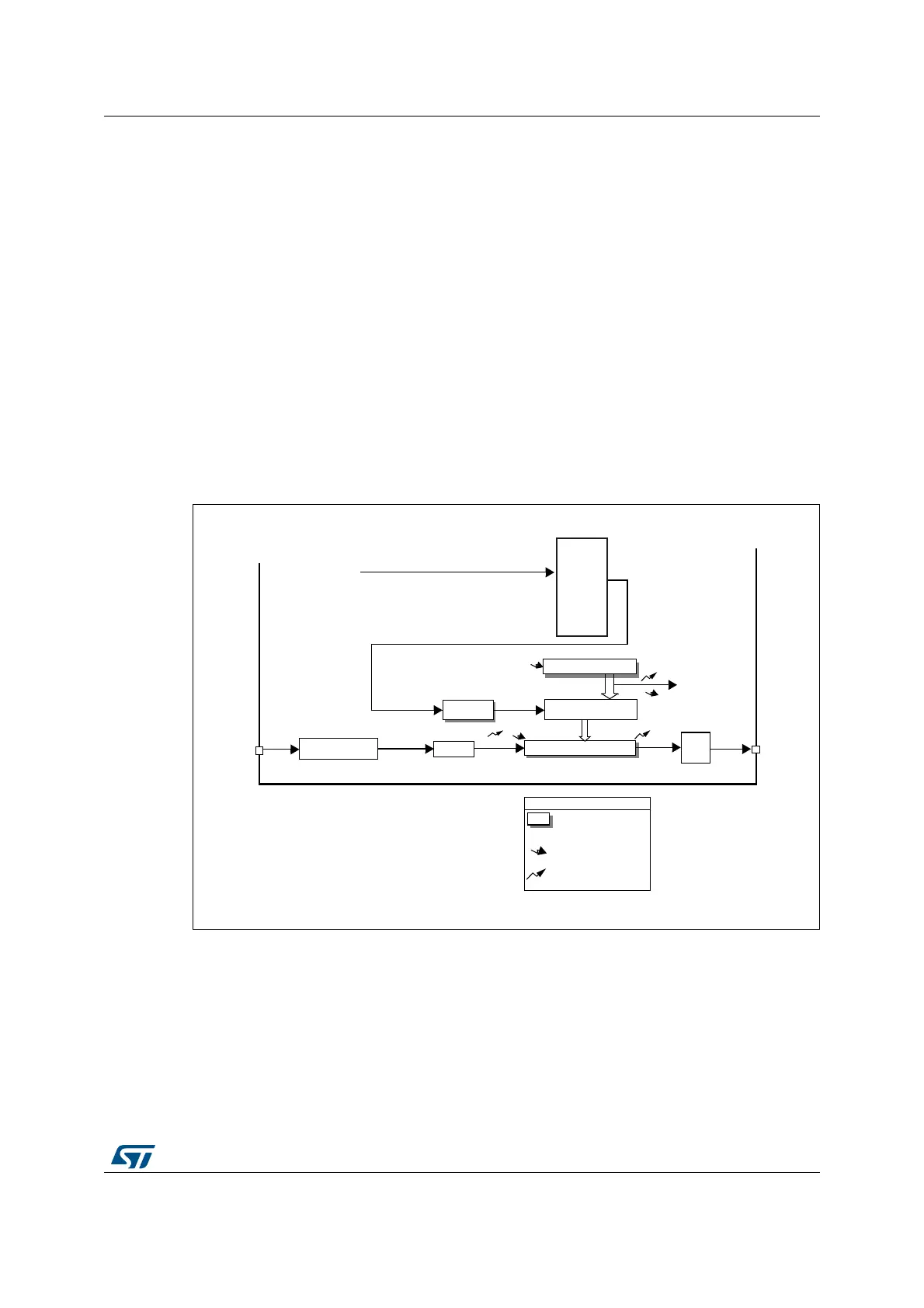

Figure 147. General-purpose timer block diagram (TIM10/11/13/14)
