DocID13902 Rev 15 514/1128

RM0008 Flexible static memory controller (FSMC)

555

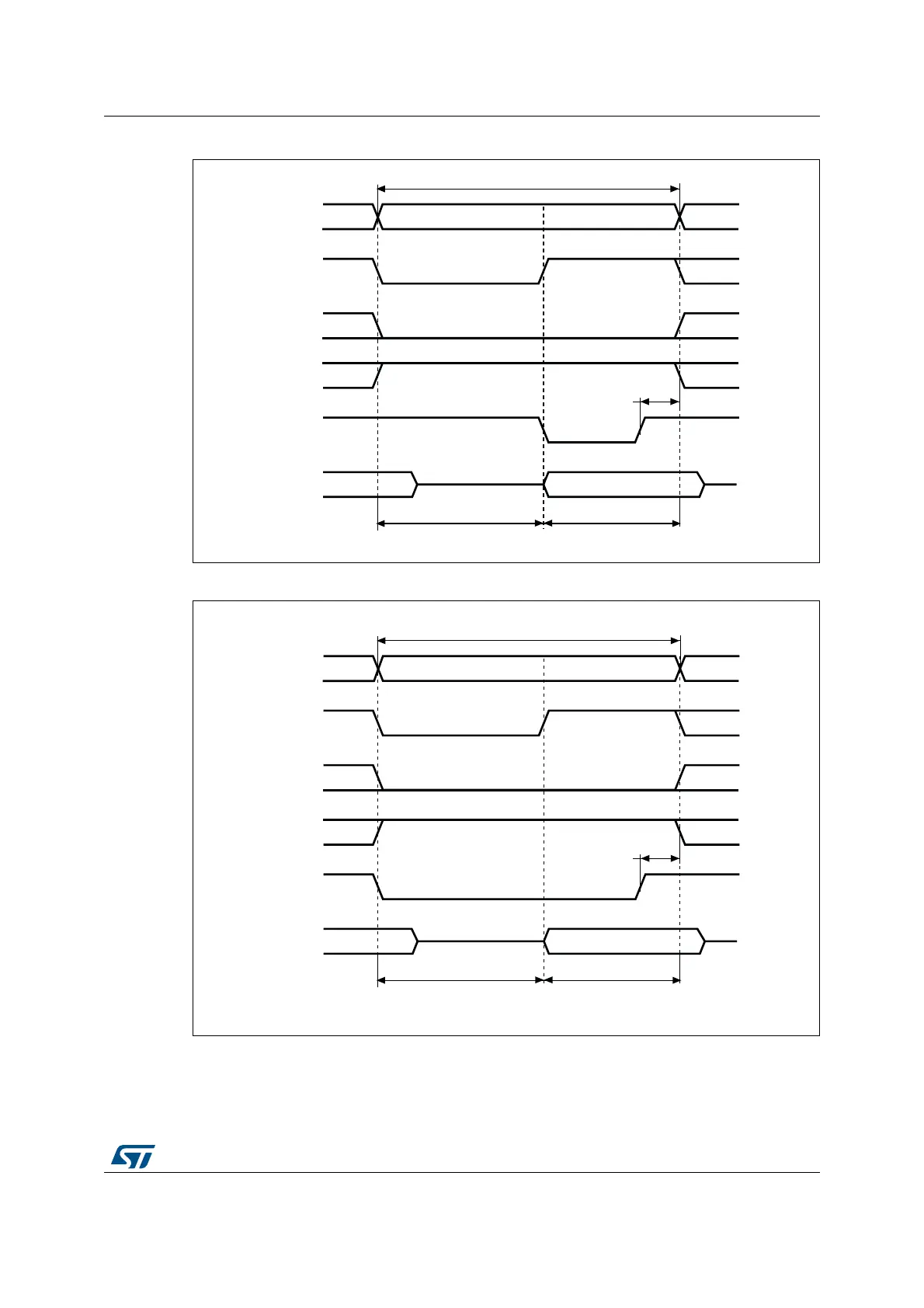

Figure 192. Mode2 write accesses

Figure 193. Mode B write accesses

The differences with mode1 are the toggling of NWE and the independent read and write

timings when extended mode is set (Mode B).

A[25:0]

NOE

(ADDSET +1) (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai14723b

1HCLK

A[25:0]

NOE

(ADDSET +1) (DATAST + 1)

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven by FSMC

ai15110b

1HCLK
