Serial peripheral interface (SPI) RM0008

719/1128 DocID13902 Rev 15

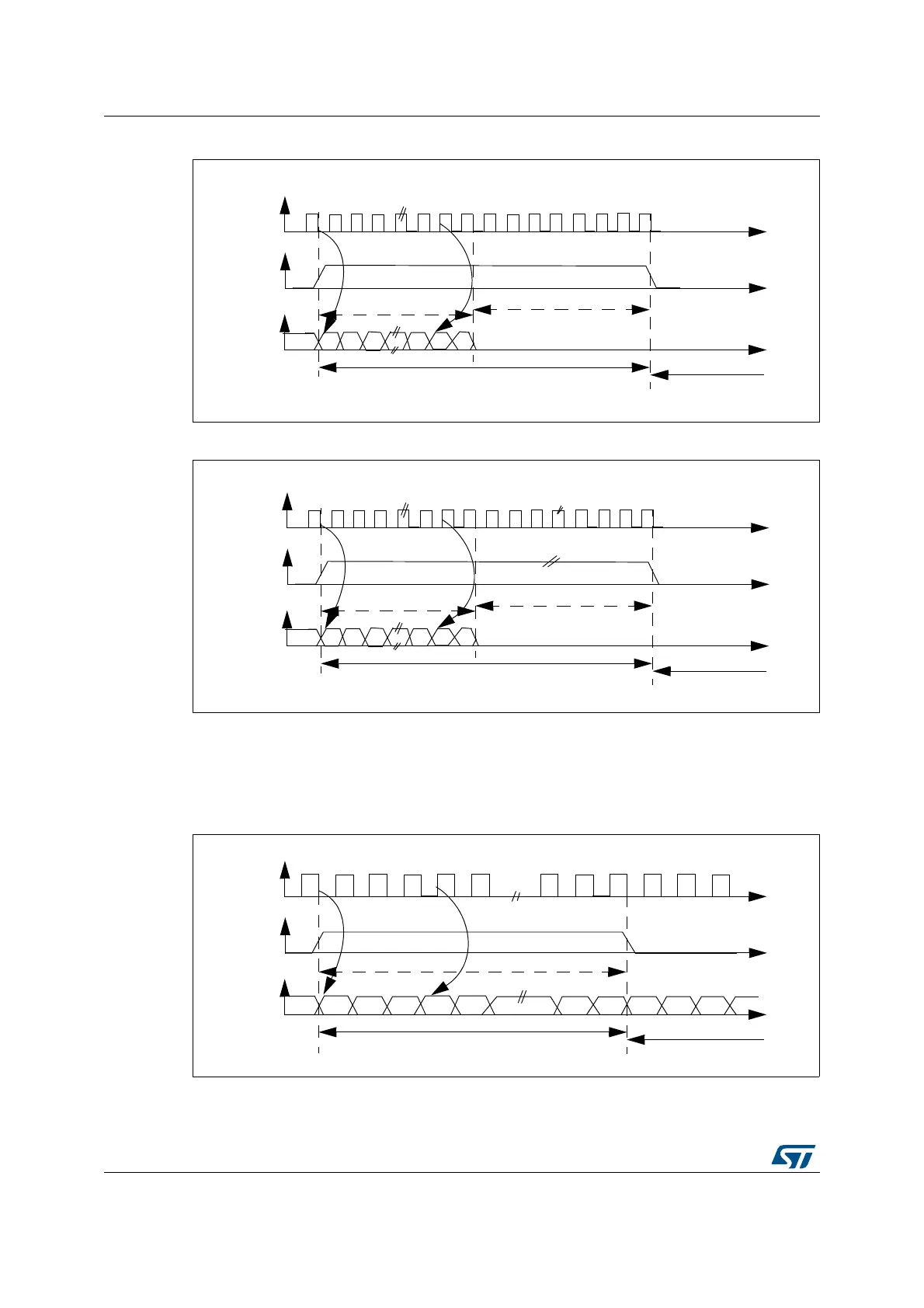

Figure 256. MSB Justified 24-bit frame length with CPOL = 0

Figure 257. MSB Justified 16-bit extended to 32-bit packet frame with CPOL = 0

LSB justified standard

This standard is similar to the MSB justified standard (no difference for the 16-bit and 32-bit

full-accuracy frame formats).

Figure 258. LSB justified 16-bit or 32-bit full-accuracy with CPOL = 0

Channel left 32-bit

Channel right

MSB

LSB

8-bit remaining

0 forced

24-bit data

Transmission

Reception

Channel left 32-bit

Channel right

MSB

LSB

16-bit remaining

0 forced

16-bit data

Transmission

Reception

MSB LSB MSB

Channel left

Channel right

May be 16-bit, 32-bit

Transmission

Reception
