ST STM32F105 series User Manual

DocID13902 Rev 15 664/1128
RM0008 Controller area network (bxCAN)
689

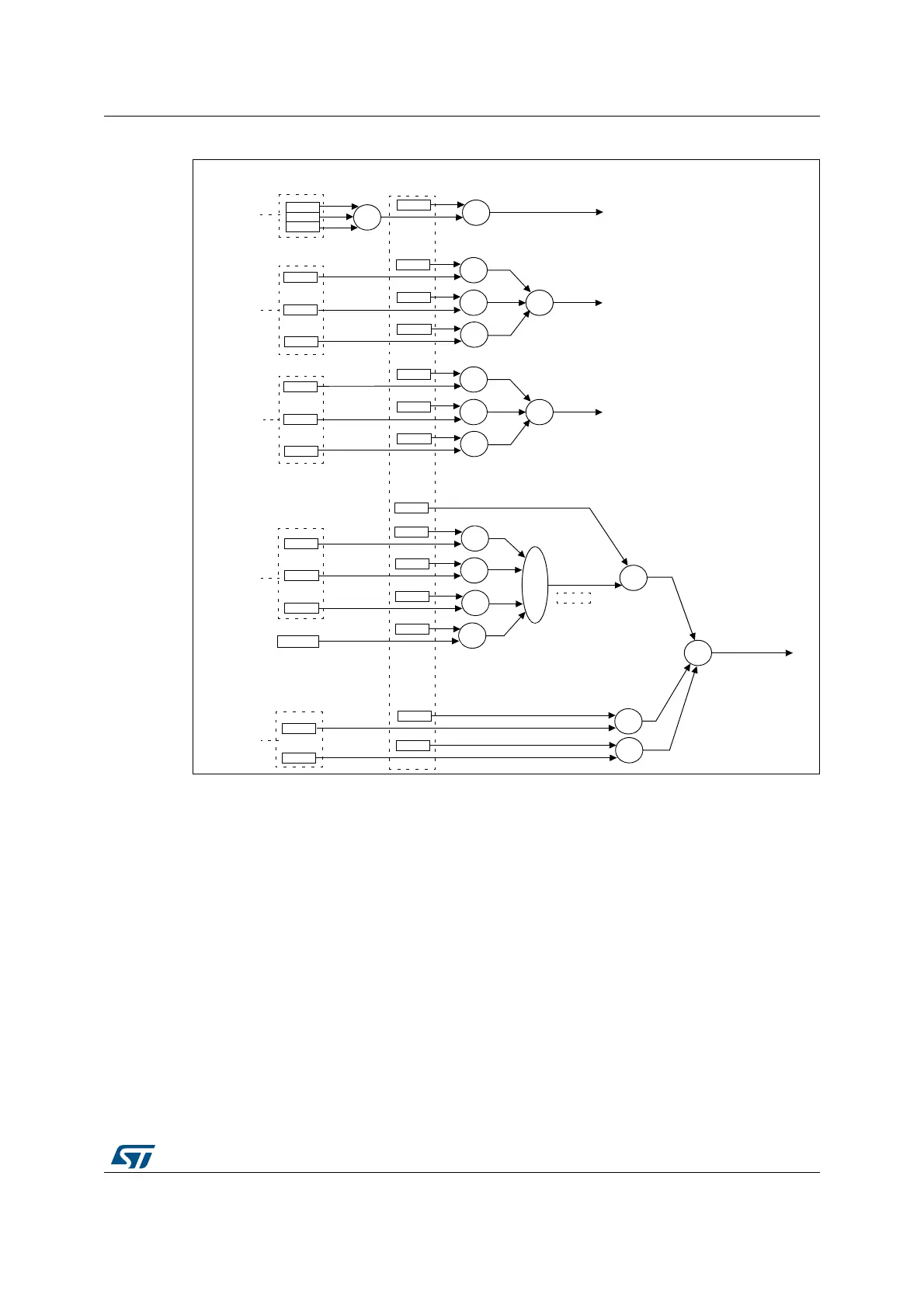

Figure 235. Event flags and interrupt generation
• The transmit interrupt can be generated by the following events:
– Transmit mailbox 0 becomes empty, RQCP0 bit in the CAN_TSR register set.
– Transmit mailbox 1 becomes empty, RQCP1 bit in the CAN_TSR register set.
– Transmit mailbox 2 becomes empty, RQCP2 bit in the CAN_TSR register set.
• The FIFO 0 interrupt can be generated by the following events:
– Reception of a new message, FMP0 bits in the CAN_RF0R register are not ‘00’.
– FIFO0 full condition, FULL0 bit in the CAN_RF0R register set.
– FIFO0 overrun condition, FOVR0 bit in the CAN_RF0R register set.
• The FIFO 1 interrupt can be generated by the following events:
– Reception of a new message, FMP1 bits in the CAN_RF1R register are not ‘00’.
– FIFO1 full condition, FULL1 bit in the CAN_RF1R register set.
– FIFO1 overrun condition, FOVR1 bit in the CAN_RF1R register set.
• The error and status change interrupt can be generated by the following events:
– Error condition, for more details on error conditions please refer to the CAN Error
Status register (CAN_ESR).
RQCP0
RQCP1
FMP1
CAN_TSR
+
TMEIE
CAN_IER
TRANSMIT
&
FMPIE1
FULL1
&
FFIE1
FOVR1
&
FOVIE1
&
+
CAN_RF1R
FIFO 1
EWGF
EWGIE
EPVF
EPVIE
BOFF
BOFIE
1≤LEC≤6
LECIE
&
&
&
&
CAN_ESR
+
&
ERRIE
INTERRUPT
INTERRUPT
FMP0
&
FMPIE0
FULL0
&
FFIE0
FOVR0
&
FOVIE0
+
CAN_RF0R
FIFO 0
INTERRUPT
RQCP2
WKUI
&
WKUIE
CAN_MSR
+
INTERRUPT
ERROR
STATUS CHANGE
ERRI
SLAKI
SLKIE
&
CAN_MSR
