Page 8 | Stellar
®
AutoTarper Owner’s Manual
9
8
10
6
ID QTYPART DESCRIPTION
6 46240
PIN 1.00X5.50 CLEVIS ZINC
1
8 0424
MACHY WASHER 1.00ID 10GA
2
9 47093
COTTER PIN .188X1.50
1
10 45305
CYLINDER 2.00X48.00 KPAT
1

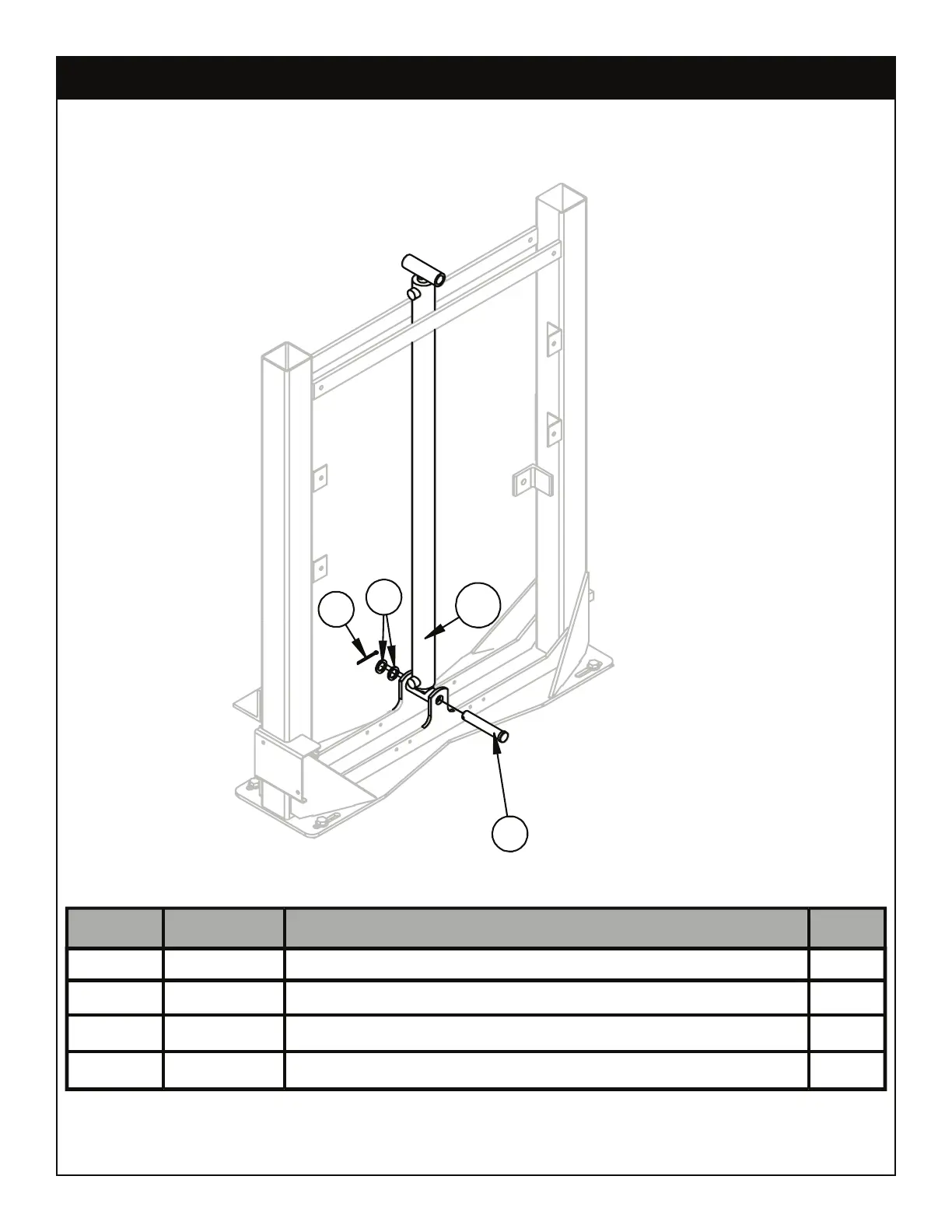

Step 2: Install gantry cylinder.
