AutoTarper Owner’s Manual | Page 23

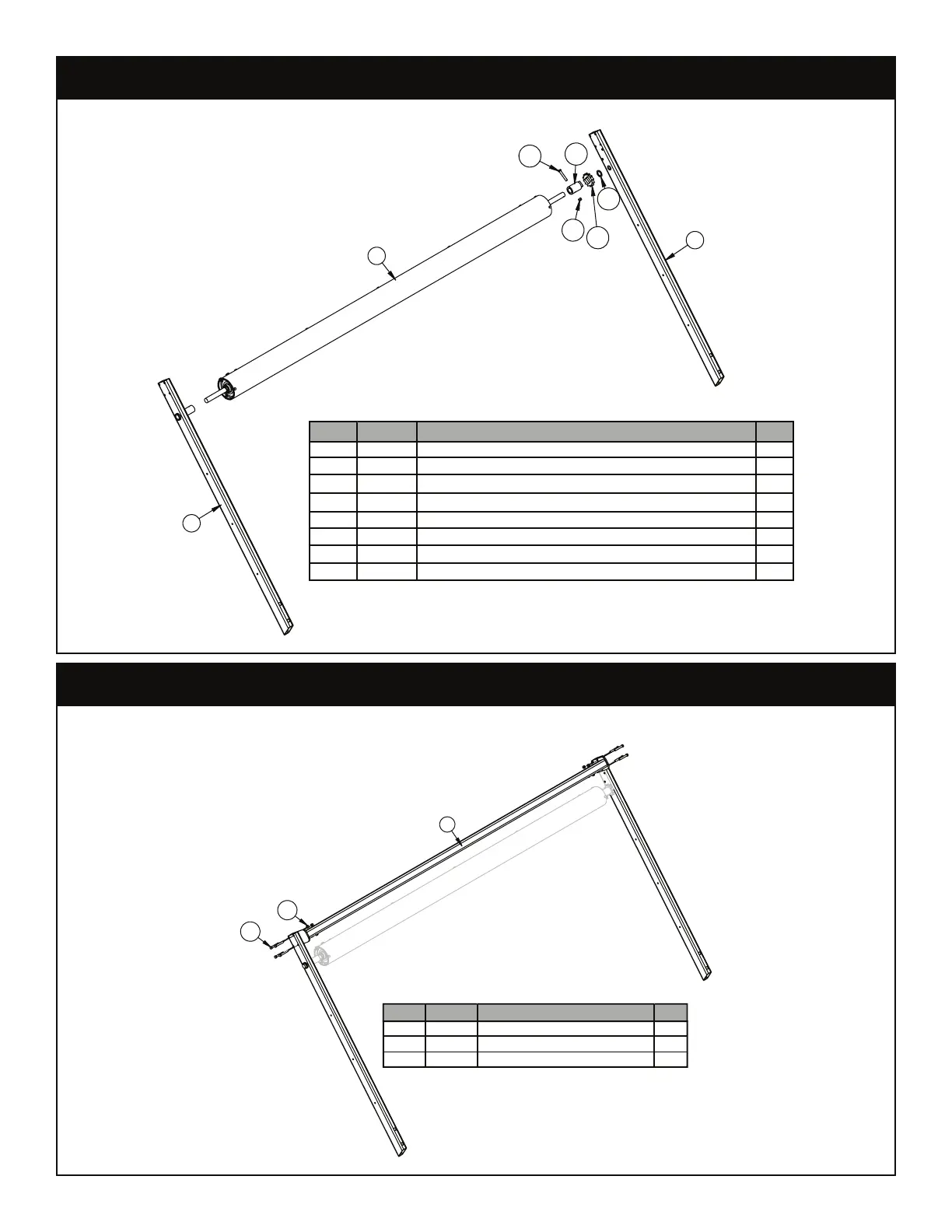

Step 23: Install roller assembly.
Step 24: Install torsion bar.
Slide the roller assembly into the upper arm weldments and install the cap screw as shown:
Install the torsion bar as shown:
3
5
34
35
21
19
12
1
ID QTYPART DESCRIPTION
179436 TUBE 3.00X1.50X0.19WX60.44 TARPER BOLT ON CS VERT 1
379435
ARM WLDMT UPPER SS TARPER BOLT ON VERT 1
542395
ASM TARP ROLLER KPAC 1
12 0867
MACHY WASHER 1.00ID 14GA 1
19 79722
PLATE GEAR RATCHET STOP SIAT NYLATRON 1
21 79724
COLLAR GEAR RATCHET STOP SIAT NYLATRON 1
34 0529
CAP SCR 0.38-16X2.50 HHGR5 1
135 0347
NUT 0.38-16 HHGR5 NYLOC
34
35
2
34
35
2
ID QTYPART DESCRIPTION
34 0529 CAP SCR 0.38-16X2.50 HHGR5 8
835 0347
NUT 0.38-16 HHGR5 NYLOC
279427 WLDMT TORSION BAR TARPER 1
