AutoTarper Owner’s Manual

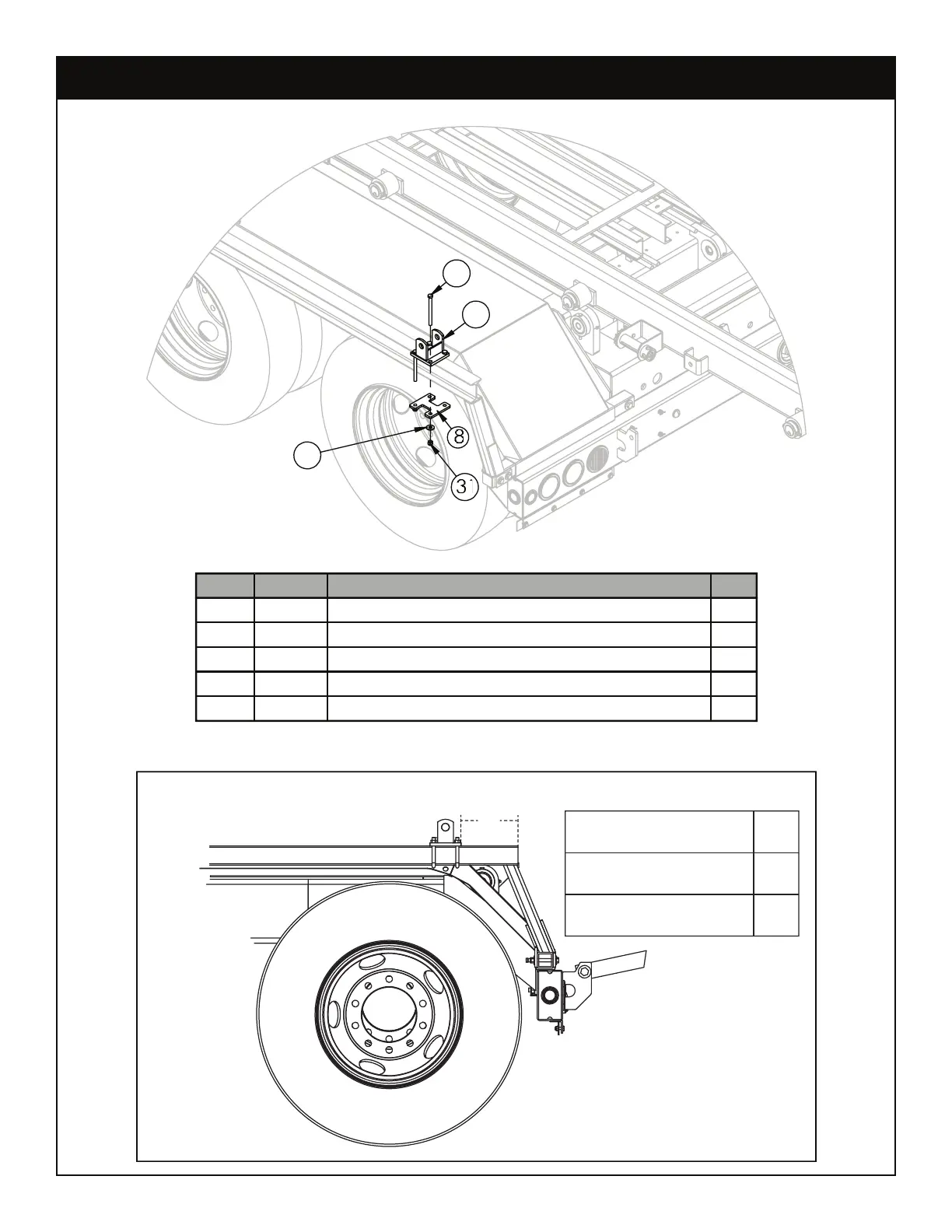

Step 18: Install slide cylinder mount.
Install the slide cylinder mount as shown (both sides):
29
24
30
29
24
8
30
31
ID QTYPART DESCRIPTION
879431 BRKT CYL MNT TARPER SLIDE 2
24
46002PC WLDMT CYL MNT LUG KPAC 2
29
C1002 CAP SCR 0.50-13X6.00 HHGR5 8
30 0352
WASHER 0.50 USS FLAT 8
31
C6106 NUT 0.50-13 HHGR5 NYLOC 8
X
X Values
Stellar® Model 174 Hoist9”
Stellar® Model 182 Hoist 17”
Stellar® Model 194 Hoist 29”
