AutoTarper Owner’s Manual

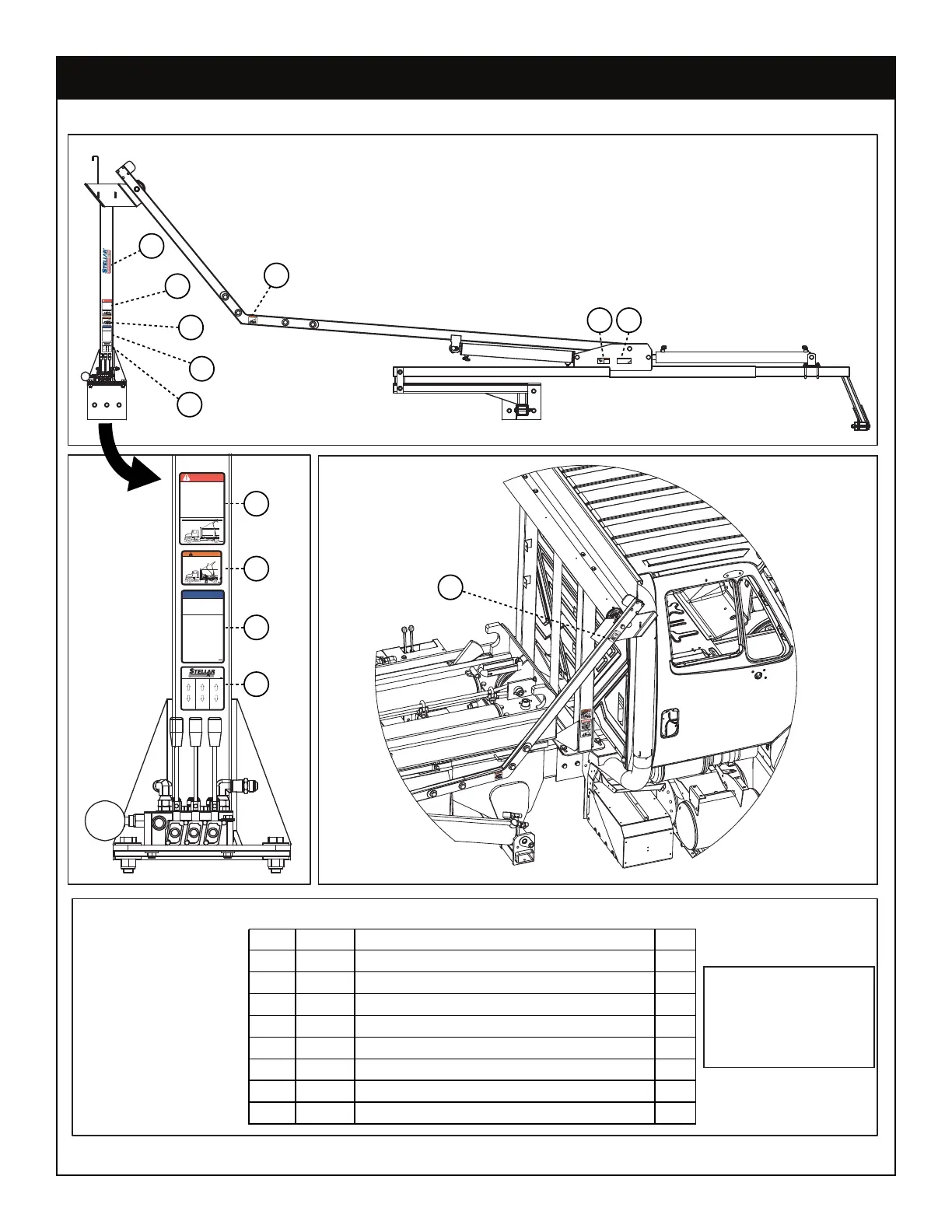

Step 38: Install Decal Package - PN 47490
DANGER
BE AWARE OF POWER
LINES AND OVERHEAD
OBSTRUCTIONS
CONTACT BY THE TARPER OR
CONTAINER COULD CAUSE
SERIOUS INJURY OR DEATH
TO THE OPERATOR AND OR
BYSTANDERS.
20 FT. CLEARANCE REQUIRED
45983
74-461
UP
GANTRY
45984
74-460
DOWN
COVER
ARMS
UNCOVER
Rephase
FWD
SLIDE
BACK
Rephase
®
NOTICE
1. DO NOT ATTEMPT TO OPERATE THIS EQUIPMENT
WITHOUT PROPER TRAINING.
2. MUST HAVE 20 FEET OF OVERHEAD CLEARANCE.
3. Observe and practice all safety and operating rules
as established by your company and those in the
tarper owner's manual.
45985
74-462
1. Tarp arm and pivot slide use slave (rephasing)
cylinders. To rephase you must retract cylinders
and hold valve retracted for a few seconds.
2. Be sure material is inside of the container sides
before tarping load.
3. After lifting tarp off of gantry, move tarp slides
forward to clear front corner of container.
4. Position gantry slightly below top front corner of
container.
5. Cautiously lower tarp onto container. Rest tarp on
back top corner for transport.
6. For transport of empty container or no container,
lower gantry to lowest position, laying tarp roll on
top of gantry and hold valve to rephase cylinders.
IMPORTANT:
If tarp does not roll up evenly, be sure to rephase
arm and slide cylinders. See Item 1 above.
OPERATION INSTRUCTIONS
45989
74-463
OPERATOR AND BYSTANDERS:
STAND CLEAR OF ARMS DURING OPERATION!
MOVEMENT OF ARMS MAY BE
QUICKER THAN EXPECTED.
CONTACT CAN CAUSE
SERIOUS BODILY
INJURY OR
DEATH.
WARNING
45989
74-463
OPERATOR AND BYSTANDERS:
STAND CLEAR OF ARMS DURING OPERATION!
MOVEMENT OF ARMS MAY BE
QUICKER THAN EXPECTED.
CONTACT CAN CAUSE
SERIOUS BODILY
INJURY OR
DEATH.
WARNING
WARNING
CRUSHING HAZARD
Moving parts can
crush and cut.
Keep hands and
arms clear.
25627
Escaping fluid under pressure can penetrate the skin causing serious injury
or death. Relieve pressure before disconnecting hydraulic lines, tighten all
connections before applying pressure, and inspect all lines before
each use. See "Safety" section in operation manual for additional
information.
If an accident occurs, see a doctor immediately. Any fluid
injected into the skin must be surgically removed within a
few hours or gangrene may result.
45726
74-276
WARNING
Inside and outside
of slide weldment.
(Both driver and passenger sides)
Both sides.
Both sides.
Both sides.
Both sides.
Both sides.
Both sides.
PNITEM DESCRIPTION QTY
25627
PN 47490
DECAL CRUSH POINT 4
45726 DECAL WARNING HYDRAULIC SAFETY 4
45983 DECAL DANGER AWARE OVERHEAD 2
45984 DECAL TARPER CONTROLS 1
45985 DECAL CAUTION - TARPER SAFETY 1
45987 DECAL PRE-LOAD SPRING 1
45989 DECAL WARN-STAND CLEAR TARP 4
C5910 DECAL STELLAR LOGO 3.75X9.00 2
1
2
3
4
5
6
7
8
8
3
1 2
7
7
4
3
7
4
5
5
Passenger side only.
6
DANGER
BE AWARE OF POWER
LINES AND OVERHEAD
OBSTRUCTIONS
CONTACT BY THE TARPER OR
CONTAINER COULD CAUSE
SERIOUS INJURY OR DEATH
TO THE OPERATOR AND OR
BYSTANDERS.
20 FT. CLEARANCE REQUIRED
45983
74-461
UP
GANTRY
45984
74-460
DOWN
COVER
ARMS
UNCOVER
Rephase
FWD
SLIDE
BACK
Rephase
®
NOTICE
1. DO NOT ATTEMPT TO OPERATE THIS EQUIPMENT
WITHOUT PROPER TRAINING.
2. MUST HAVE 20 FEET OF OVERHEAD CLEARANCE.
3. Observe and practice all safety and operating rules
as established by your company and those in the
tarper owner's manual.
45985
74-462
1. Tarp arm and pivot slide use slave (rephasing)
cylinders. To rephase you must retract cylinders
and hold valve retracted for a few seconds.
2. Be sure material is inside of the container sides
before tarping load.
3. After lifting tarp off of gantry, move tarp slides
forward to clear front corner of container.
4. Position gantry slightly below top front corner of
container.
5. Cautiously lower tarp onto container. Rest tarp on
back top corner for transport.
6. For transport of empty container or no container,
lower gantry to lowest position, laying tarp roll on
top of gantry and hold valve to rephase cylinders.
IMPORTANT:
If tarp does not roll up evenly, be sure to rephase
arm and slide cylinders. See Item 1 above.
OPERATION INSTRUCTIONS
45989
74-463
OPERATOR AND BYSTANDERS:
STAND CLEAR OF ARMS DURING OPERATION!
MOVEMENT OF ARMS MAY BE
QUICKER THAN EXPECTED.
CONTACT CAN CAUSE
SERIOUS BODILY
INJURY OR
DEATH.
WARNING
Rev Level: B
Date: 03/26/13
Change:
Replaced C5912 (Qty:1)
with C5910 (Qty:2
Last Revision
C5910
