AutoTarper Owner’s Manual | Page 9

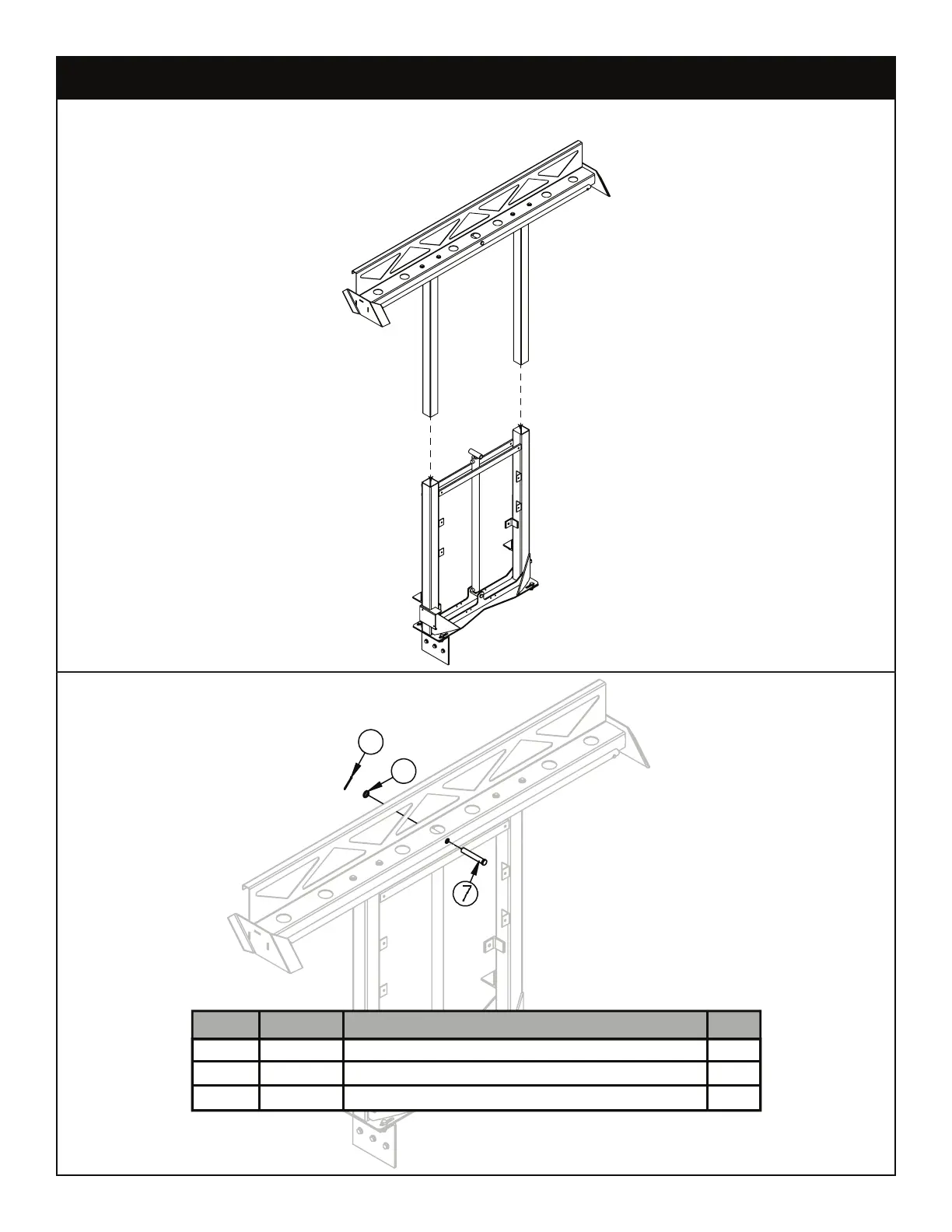

Slide the upper gantry into the lower gantry and attach the gantry cylinder as shown:
8
9
7
8
9
ID QTYPART DESCRIPTION
747091 PIN 1.00X6.00 CLEVIS ZINC 1
80424
MACHY WASHER 1.00ID 10GA 1
947093
COTTER PIN .188X1.50 1
Step 3: Install upper gantry.
