AutoTarper Owner’s Manual

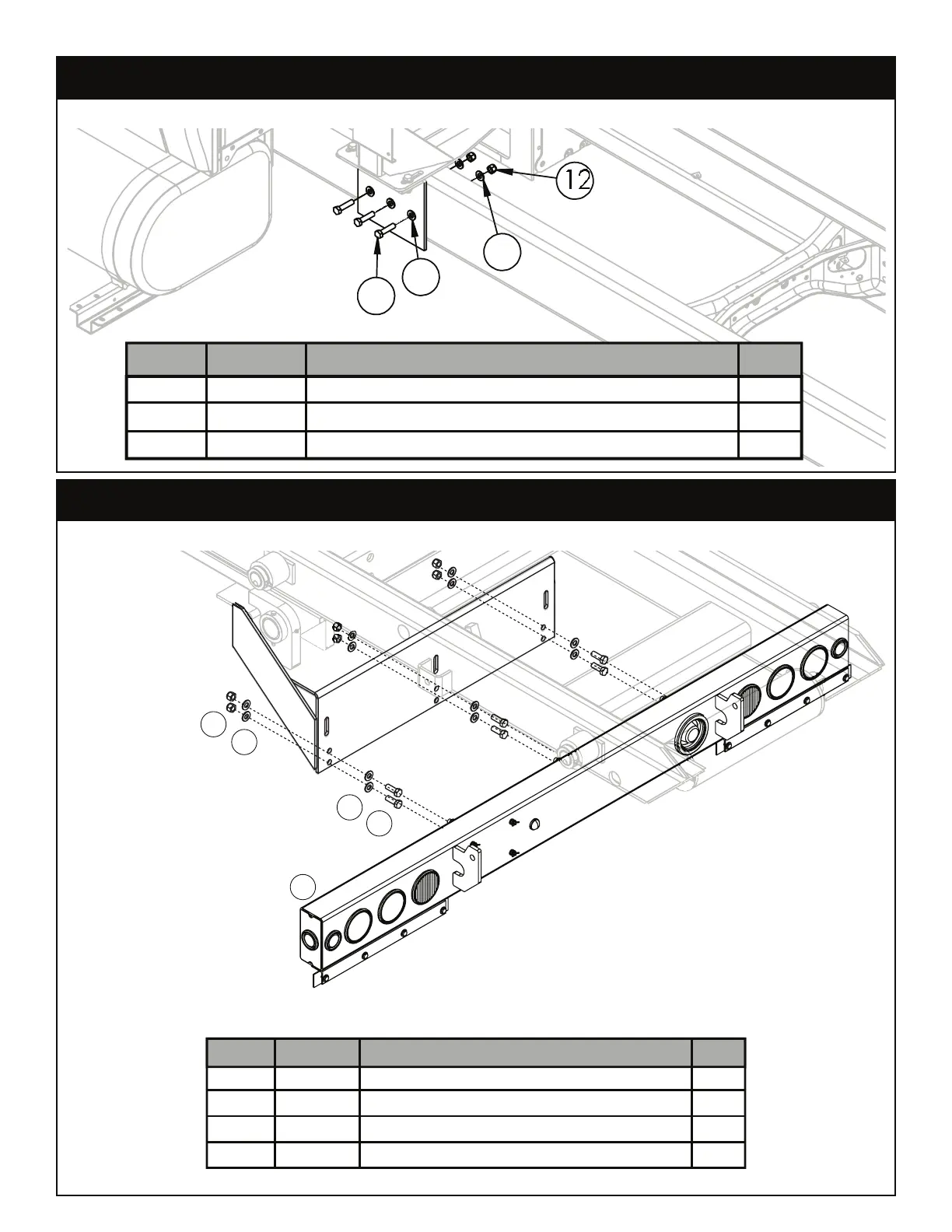

Secure the gantry base to the truck frame by using the hardware shown below:
13
11
13
13
11
12
13
ID QTYPART DESCRIPTION
11 C1026 CAP SCR 0.63-11X2.50 HHGR8 6
12 24868
NUT 0.63-11 HHGR8 NYLOC 6
13
C5902 WASHER 0.63 SAE FLAT YELLOW GR8 12
Step 7: Bolt gantry to the truck frame.
Bolt the bumper to the cable hoist subframe apron as shown:
2
3
3
4
1
1NA BUMPER 1
211693
CAP SCR 0.63-11X1.75 6
3
C5902 WASHER 0.63 USS FLAT 12
4
24868 NUT 0.63-11 6
ID QTYPART DESCRIPTION
Step 8: Install bumper.
