stellar labs AutoTarper - Step 29: Install Fittings

Stellar
®
AutoTarper Owner’s Manual | Page 27
Step 29: Install ttings.
Low Pressure System - SI60/SI75 Cable Models

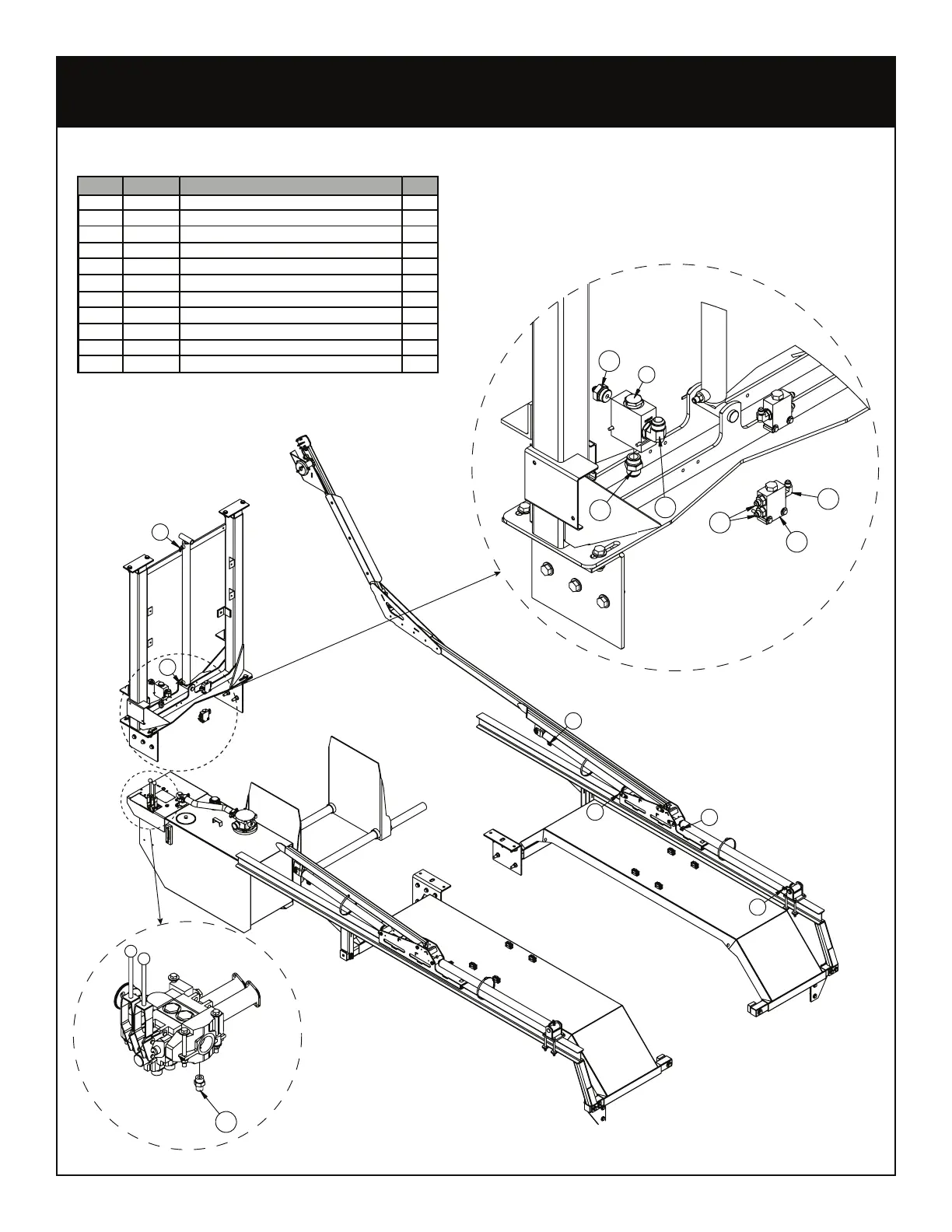

Install the hydraulic ttings as shown:
7
7
8
8
7
9
12
17
19
20
14
1
16
15
ID QTYPART DESCRIPTION
145348 PRIORITY FLOW DIVIDER 3.0GPM 1
747113
FTG 6-6 MJ-MAORB 90 5
875820
FTG 4-4 MJ-MAORB 90 4
947115
FTG 6-6 MJ-MORB STRAIGHT 1
12 4594
FTG 8-8 MJ-MORB STRAIGHT 3
14 46643
FTG 8-16 MJ-MORB STRAIGHT 1
15 46650
FTG 16-16 MJ-MORB STRAIGHT 1
16 47112
FTG 16-16 MJ-MAORB 90 1
17 47116
FTG 6-8 MJ-MORB STRAIGHT 10
19 79864
FTG 6-8 MJ-MAORB 90 2
20 79859
FLOW DIVIDER/COMBINER TARPER 2
