AutoTarper Owner’s Manual | Page 41
Step 34: Attach tarp to gantry.

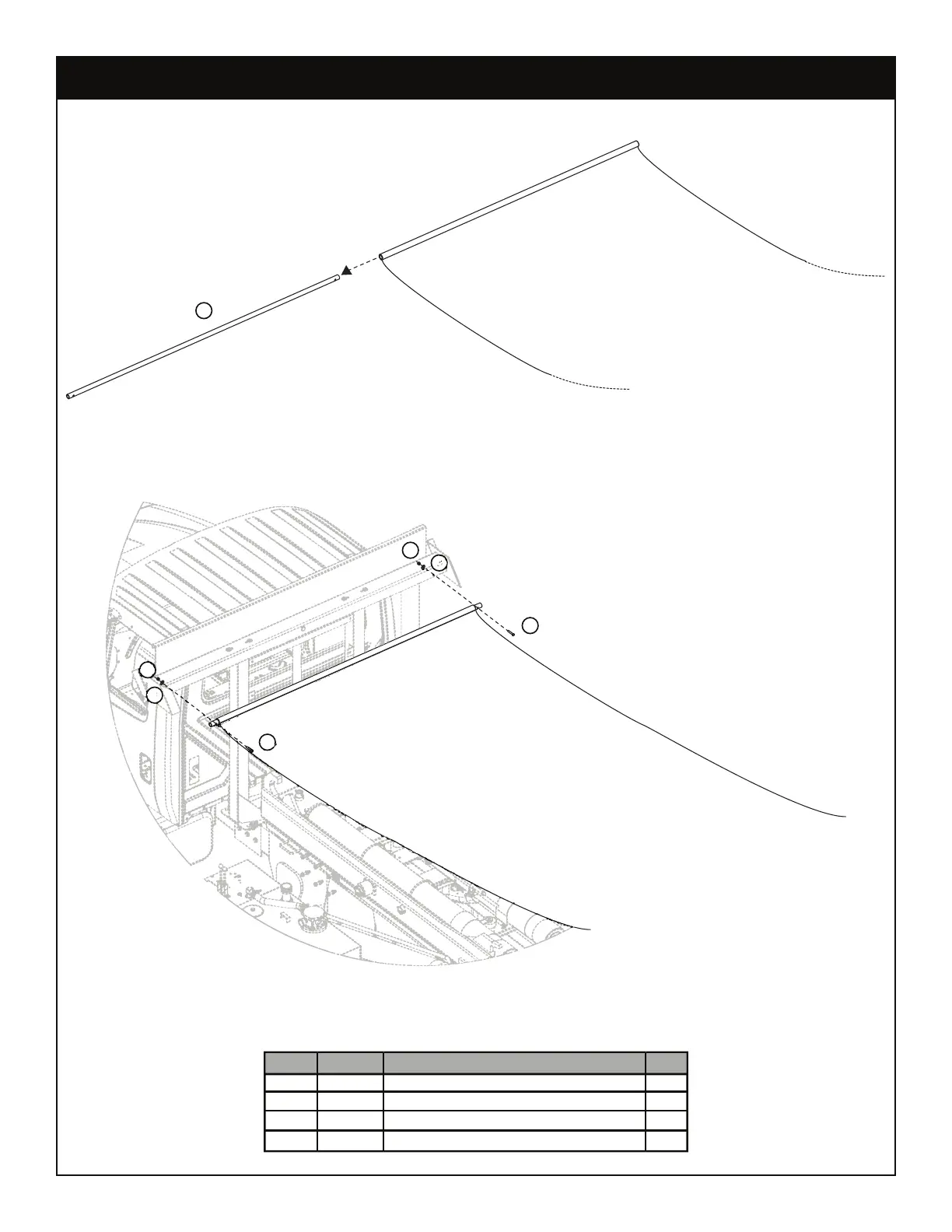

Attach the tarp to the gantry using the tarp tube as shown:
1
2
2
3
3
4
4
Slide Tarp Loop over Tarp Tube:
Bolt Tarp Tube to Gantry:
ID QTYPART DESCRIPTION
146001PC TARP TUBE EX HEAVY 1
2C0946 2
CAP SCR 0.38-16X2.25 HHGR5
3034
62
WASHER 0.38 USS FLAT
3034
72
NUT 0.38-16 HHGR5
