stellar labs AutoTarper - Step 10: Slide Fender Onto Rear Tube; Step 11: Bolt Slide Weldment to Rear Tube

Stellar
®
AutoTarper Owner’s Manual | Page 15

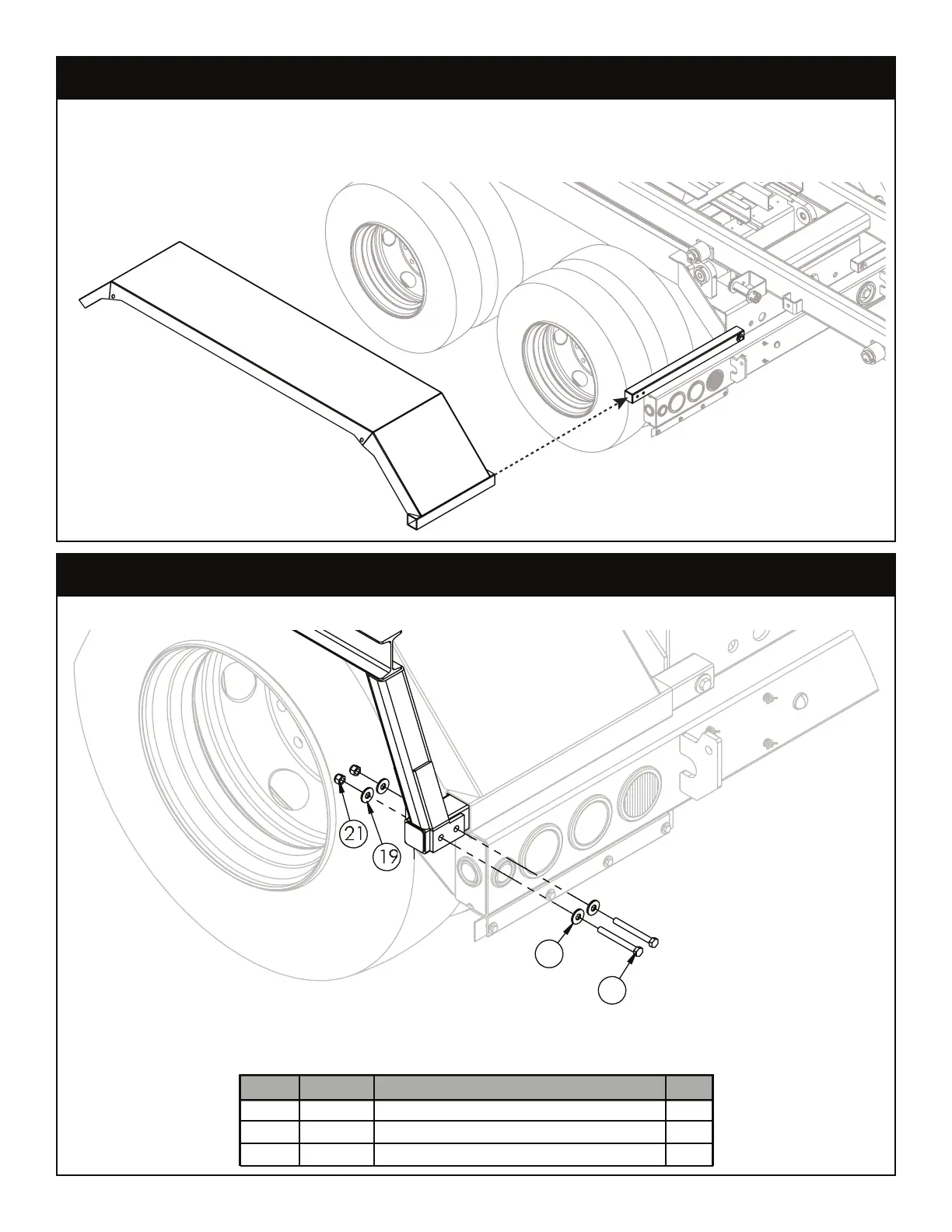

Bolt the slide weldment to the rear mounting tube as shown below (both sides):
19
22
21
19
19
22
ID QTYPART DESCRIPTION
19 0352 WASHER 0.50 USS FLAT
8
21
C6106 NUT 0.50-13 HHGR5 NYLOC 4
22 0507
CAP SCR 0.50-13X4.50 HHGR5 4
Step 11: Bolt slide weldment to rear tube.
Remove set screw from fender and slide onto rear mounting tube. Center the fender
over the wheels and temporarily support the front of the fender. Once centered over the
wheels, tighten the set screw (both sides):
Stellar® Tandem
Steel Fender Shown
(Not Included with AutoTarper)
Step 10: Slide fender onto rear tube.
