AutoTarper Owner’s Manual | Page 13

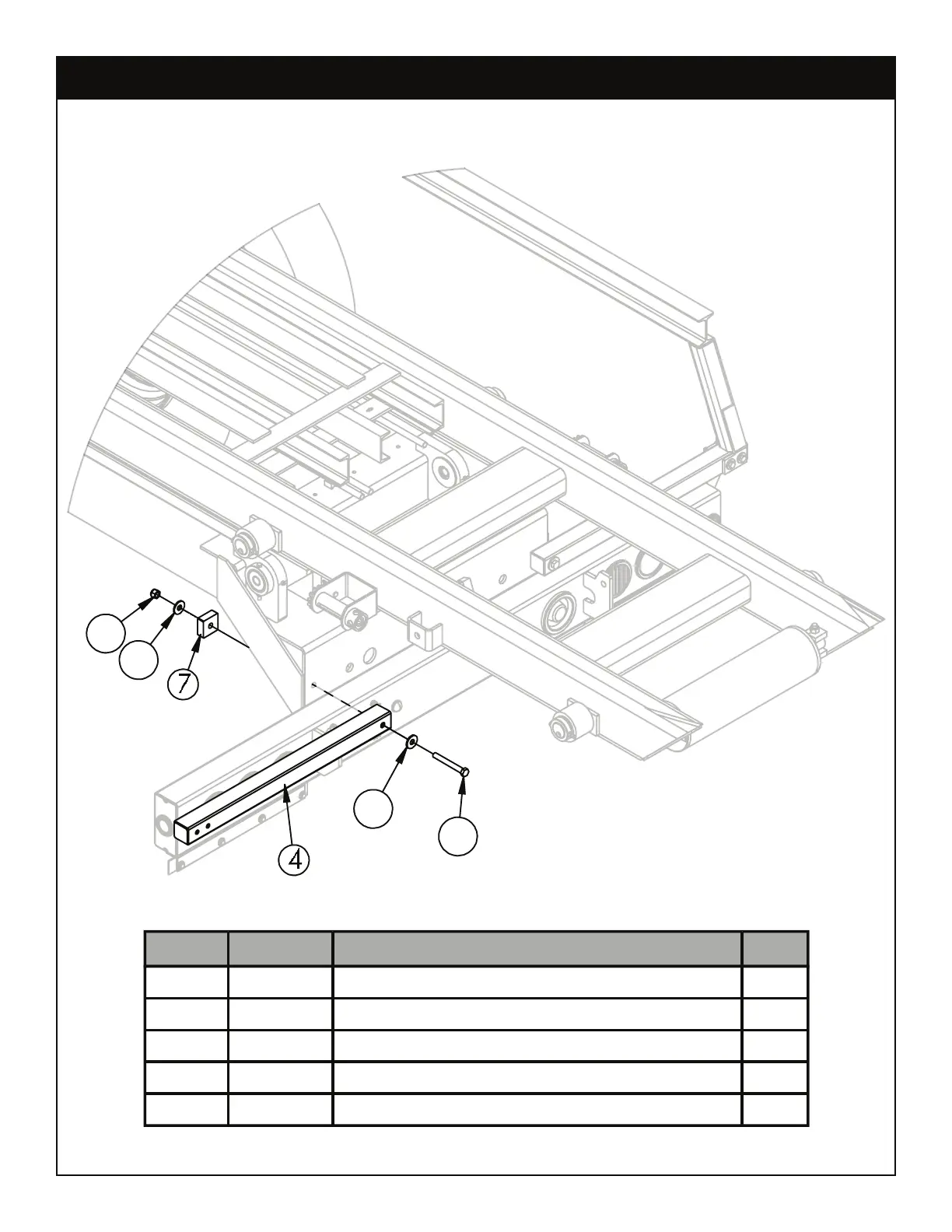

Bolt the bumper to the cable hoist subframe apron as shown (both sides):
4 79801 WLDMT TUBE 2.50X2.50X0.25WX35.00 2
7 47208
PLATE 1.00X2.50X2.50 SPACER KP60 2
10
C0966 CAP SCR 0.63-11X5.00 HHGR5 2
11
C1038 WASHER 0.63 USS FLAT 4
12 2826
NUT 0.63-11 HHGR5 NYLOC 2
12
11
1
1
10
2
0
2
2
12
11
7
11
10
4
ID QTYPART DESCRIPTION
Step 9: Install rear mounting tubes.
