AutoTarper Owner’s Manual | Page 1

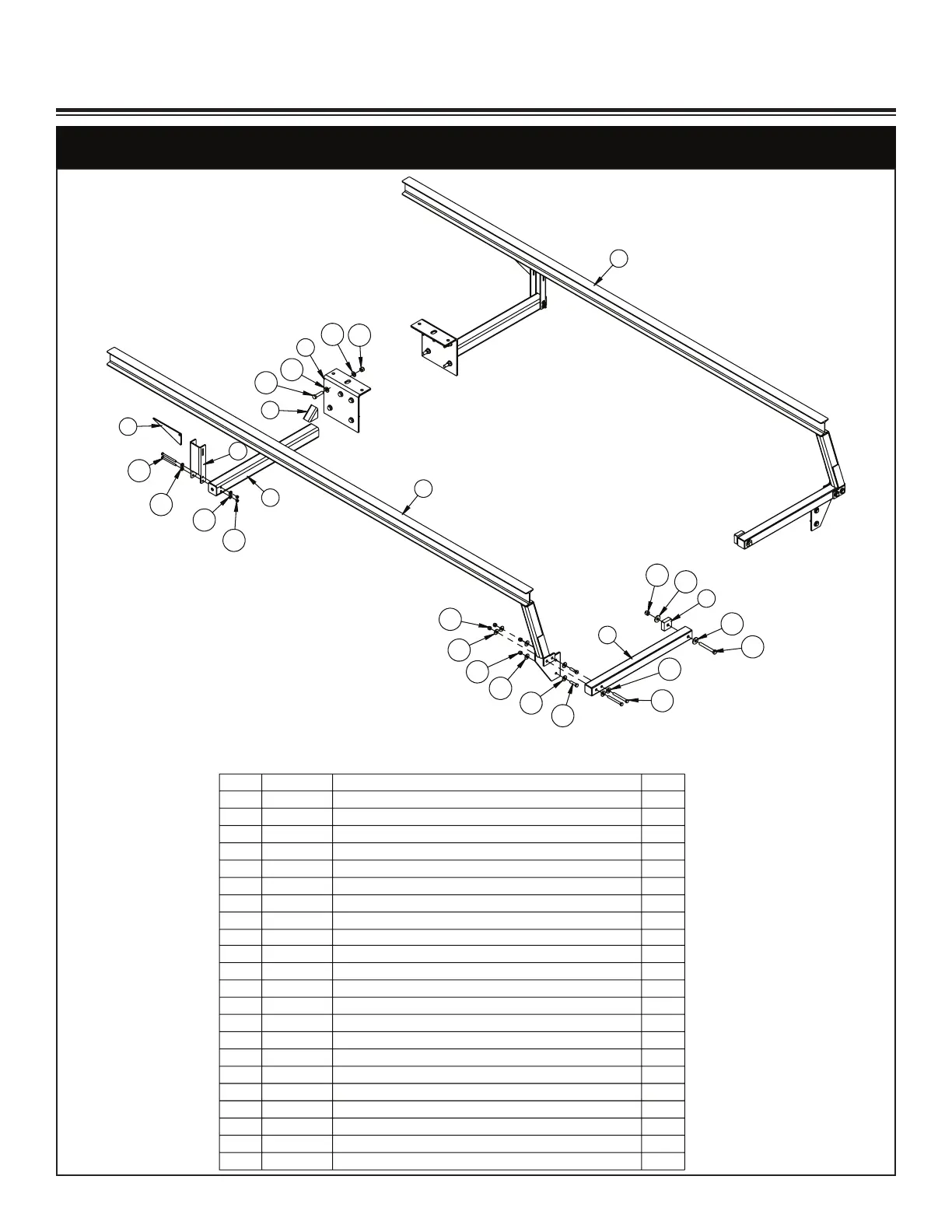

Chapter 1 - Assembly Drawings
15
14
3
14
13
8
2
5
16
17
17
18
19
21
21
19
19
20
19
22
10
11
7
11
12
4
1
6
9
ITEM PART DESCRIPTION QTY.
179415 SLIDE WLDMT SIAT SS I BEAM 1
279800
TUBE 3.00X3.00X0.25WX35.59 W/HOLES 2
346906
BRKT GANTRY MNT KPAC 2
479801
WLDMT TUBE 2.50X2.50X0.25WX35.00 2
579855
GUSSET 0.25X3.38X10.00 W/HOLE 2
679414
SLIDE WLDMT SIAT CS I BEAM 1
747208
PLATE 1.00X2.50X2.50 SPACER KP60 2
847209
BRKT FENDER KP60 2
980141
CHANNEL FORMED 0.25X2.00X3.63X11.00 W/HOLES 2
10
C0966 CAP SCR 0.63-11X5.00 HHGR5 2
11
C1038 WASHER 0.63 USS FLAT 4
12 2826
NUT 0.63-11 HHGR5 NYLOC 2
13
C1026 CAP SCR 0.63-11X2.50 HHGR8 10
14
C5902 WASHER 0.63 SAE FLAT YELLOW GR8 20
15 24868
NUT 0.63-11 HHGR8 NYLOC 10
16
C0954 CAP SCR 0.38-16X4.50 HHGR5 4
17 0346
WASHER 0.38 USS FLAT 8
18 0347
NUT 0.38-16 HHGR5 NYLOC 4
19 0352
WASHER 0.50 USS FLAT 16
20 0501
CAP SCR 0.50-13X2.00 HHGR5 4
21
C6106 NUT 0.50-13 HHGR5 NYLOC 8
22 0507
CAP SCR 0.50-13X4.50 HHGR5 4
PN 79444
Mounting Assembly - PN 79444
