AutoTarper Owner’s Manual | Page 29

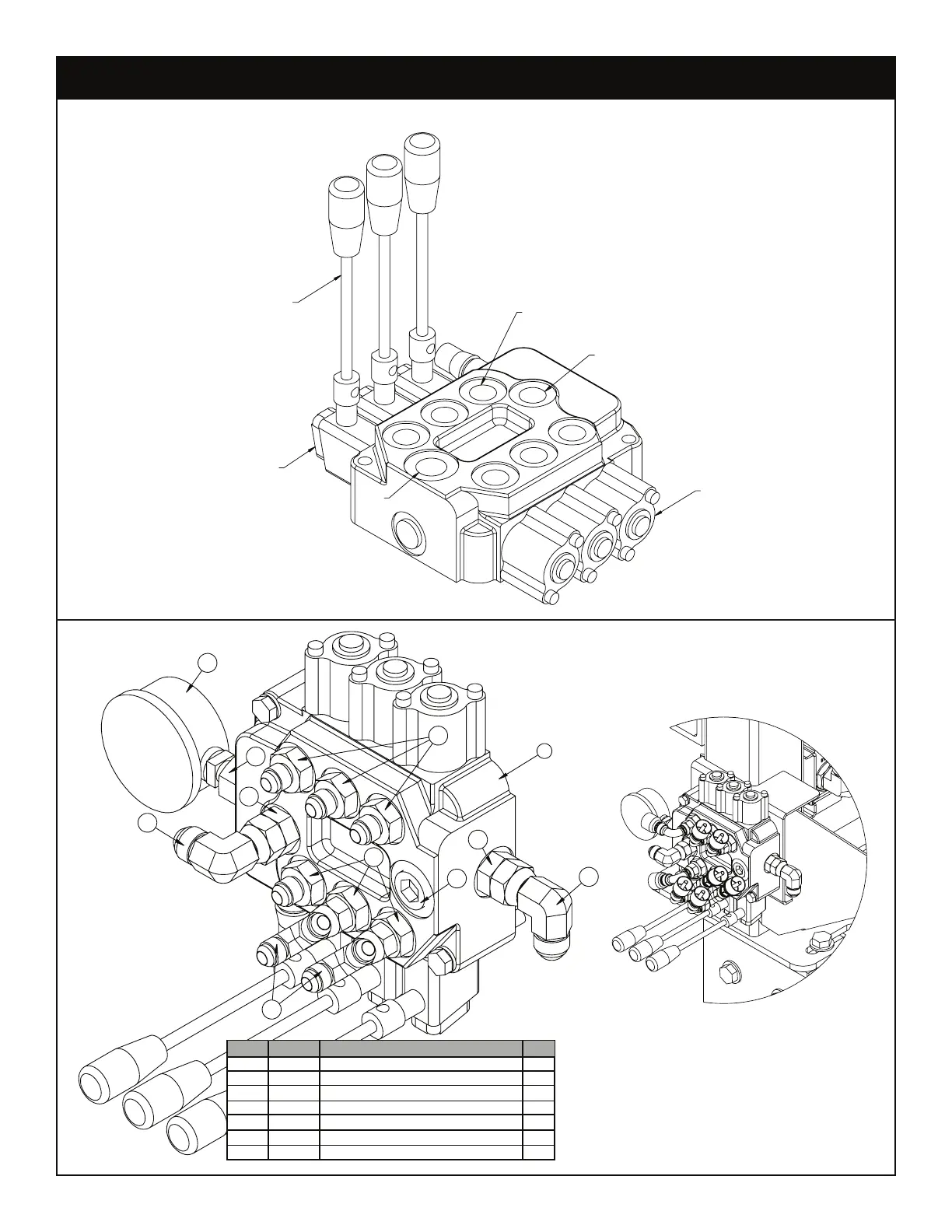

Step 30: Prep valve bank.
Assemble the valve bank components as shown:
10
11
17
12
18
13
12
13
22
17
2
NOTE: SEE ORIENTAION OF HOSE END FITTINGS
ON THE VALVE BANK TO RUN HOSES
ID QTYPART DESCRIPTION
246808 VB 3 SECT VDM6 KPAT 1
10 12159
FTG 8-4 MORB-FP STRAIGHT 1
11 10094
GAUGE OIL LF 2.5" 0-500 BM 1
12 4594
FTG 8-8 MJ-MORB STRAIGHT 3
13 47109
FTG 8-8 MJ-FJS 90 2
17 47116
FTG 6-8 MJ-MORB STRAIGHT 10
22 79860
FTG 6-6-6 MJ-FJS-MJ RUN TEE 2
LEVER CONTROL BOX - PN (54944)
HANDLE AND KNOB - PN (26130)
SPOOL SPRING KIT
WITH COVER PN 67261
ALL WORK PORTS ARE #8
#10
#8
VALVE BANK SPOOL SEAL KIT - PN 68276 (QTY. 3)
