stellar labs AutoTarper - Gantry Assembly - PN 79446

Page 4 | Stellar
®
AutoTarper Owner’s Manual
17
16
3
15
4
20
19
19
18
8
9
7
10
8
9
6
13
14
13
12
5
13
11
12
1
2
2
ITEM PART DESCRIPTION QTY.
179438 WLDMT GANTRY GUIDE SIAT GEN2 1
256500
WLDMT GANTRY SLIDE TUBE SIAT 2
379441
WLDMT GANTRY RACK SIAT GEN2 1
446001
TUBE EX HEAVY TARP KPAC 1
546906
BRKT GANTRY MNT KPAC 2
646240
PIN 1.00X5.50 CLEVIS ZINC 1
747091
PIN 1.00X6.00 CLEVIS ZINC 1
80424
MACHY WASHER 1.00ID 10GA 3
947093
COTTER PIN .188X1.50 2
10 45305
CYLINDER 2.00X48.00 KPAT 1
11
C1026 CAP SCR 0.63-11X2.50 HHGR8 6
12 24868
NUT 0.63-11 HHGR8 NYLOC 10
13
C5902 WASHER 0.63 SAE FLAT YELLOW GR8 20
14
C1025 CAP SCR 0.63-11X2.00 HHGR8 4
15
C0946 CAP SCR 0.38-16X2.25 HHGR5 2
16 0346
WASHER 0.38 USS FLAT 2
17 0347
NUT 0.38-16 HHGR5 NYLOC 2
18 0500
CAP SCR 0.50-13X1.75 HHGR5 4
19 0352
WASHER 0.50 USS FLAT 8
20
C6106 NUT 0.50-13 HHGR5 NYLOC 4
PN 79446

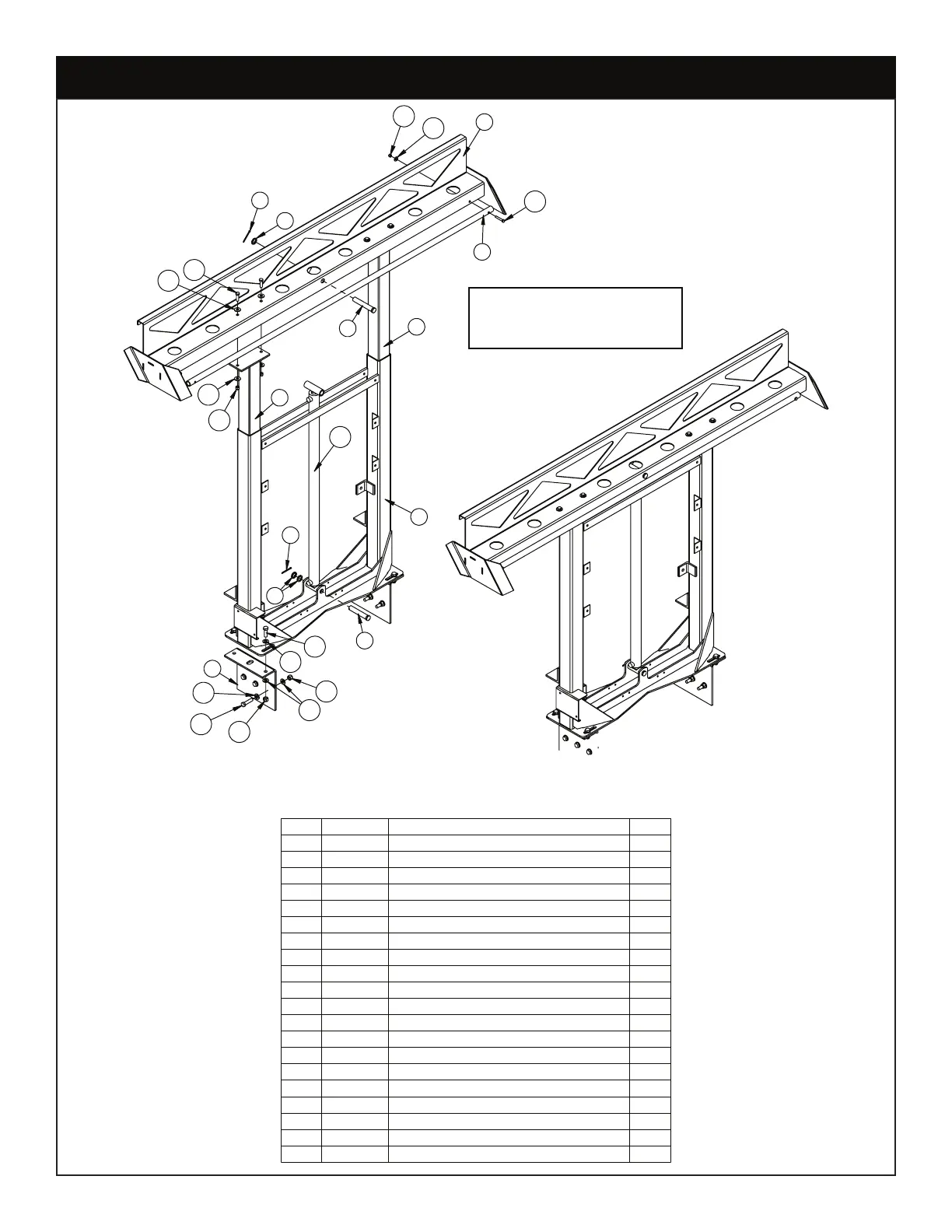

Gantry Assembly - PN 79446
Note: Gantry Cylinder
uses Seal Kit PN 59511
