AutoTarper Owner’s Manual

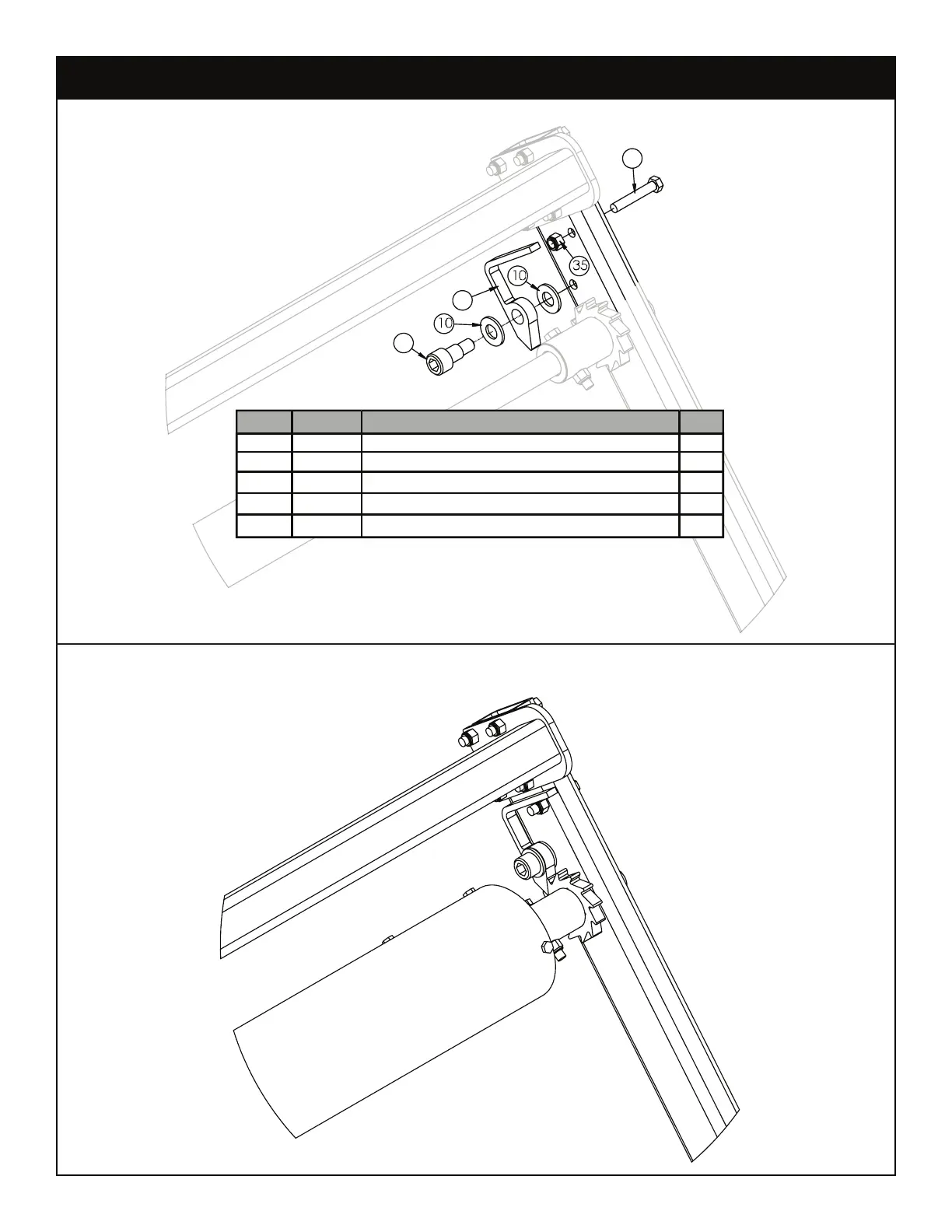

Step 25: Install ratchet stop assembly.
Install the ratchet stop assembly as shown:
15
20
36
5
0
6
15
10
20
10
35
36
ID QTYPART DESCRIPTION
10 79409 WEAR PAD TARPER SLIDE TOP 4
15 79727
BOLT SHOULDER 0.63X0.75 0.50-13X0.75 1
20 79723
LEVER GEAR RATCHET STOP SIAT NYLATRON 1
35 0347
NUT 0.38-16 HHGR5 NYLOC 11
36
C0946
CAP SCR 0.38-16X2.25 HHGR5
2
