Stonex R25/R25LR Total Station - User Manual 79

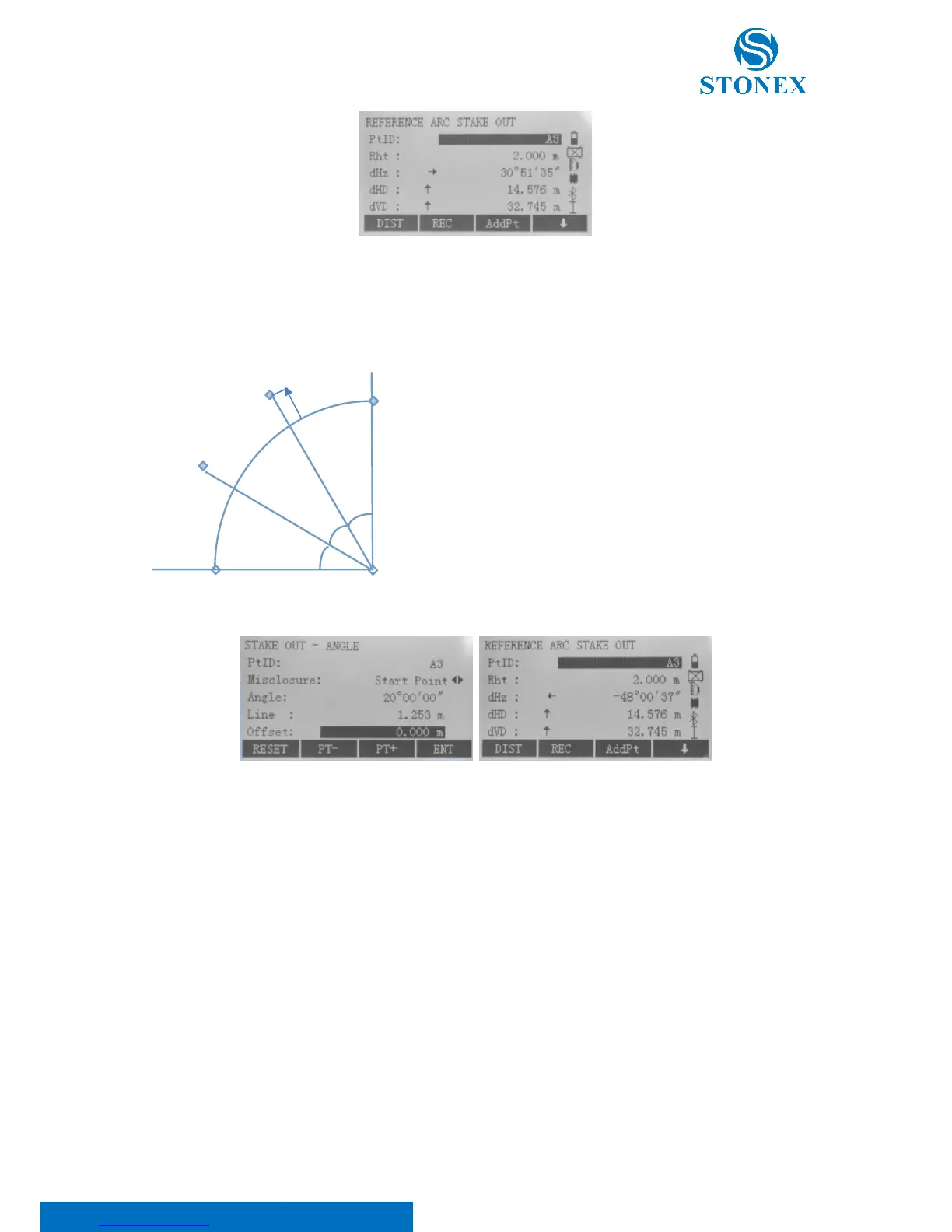

4. Stake Out Angle
This allows to stake out series of angles which are determined by the points of arc and whose values are equal angle.
The contents and the softkey functions are the same as described in "Stake Out Arc" section.
SP: Start point of arc
EP: End point of arc
CP: Centre point of circle
P: Point(s) to stake out
R: Radius
α: Angle
Off: Vertical distance from arc
R
SP
CP
P
P
EP
α
α
α
Offset
