CAUTION
The pressure of the cooling fluid supplied to the machine must be max. 2 bar.
3. Connect the cable from the external pump to the electrical power
socket of the recirculation unit inside the compartment.
Wiring: For specifications see the section Technical data.
Note
If you are using the AUX connection, contact Struers
Service more information on the connection and the
required flow.
4. Connect the external pump control to the AUX connection on the
rear of the machine.A
5.12 Adjusting disc cooling and OP-flushing
You can set the level of disc cooling and flushing time in the software
If you need to adjust the rate of disc cooling:
1. Loosen the locknut and turn the regulator screw as needed.
2. Tighten the locknut.
Hint
If needed, use the throttle valves to adjust the maximum water flow for disc cooling
and flushing after OP.
The level of disc cooling and flushing time is set in the software. See Options ►30.

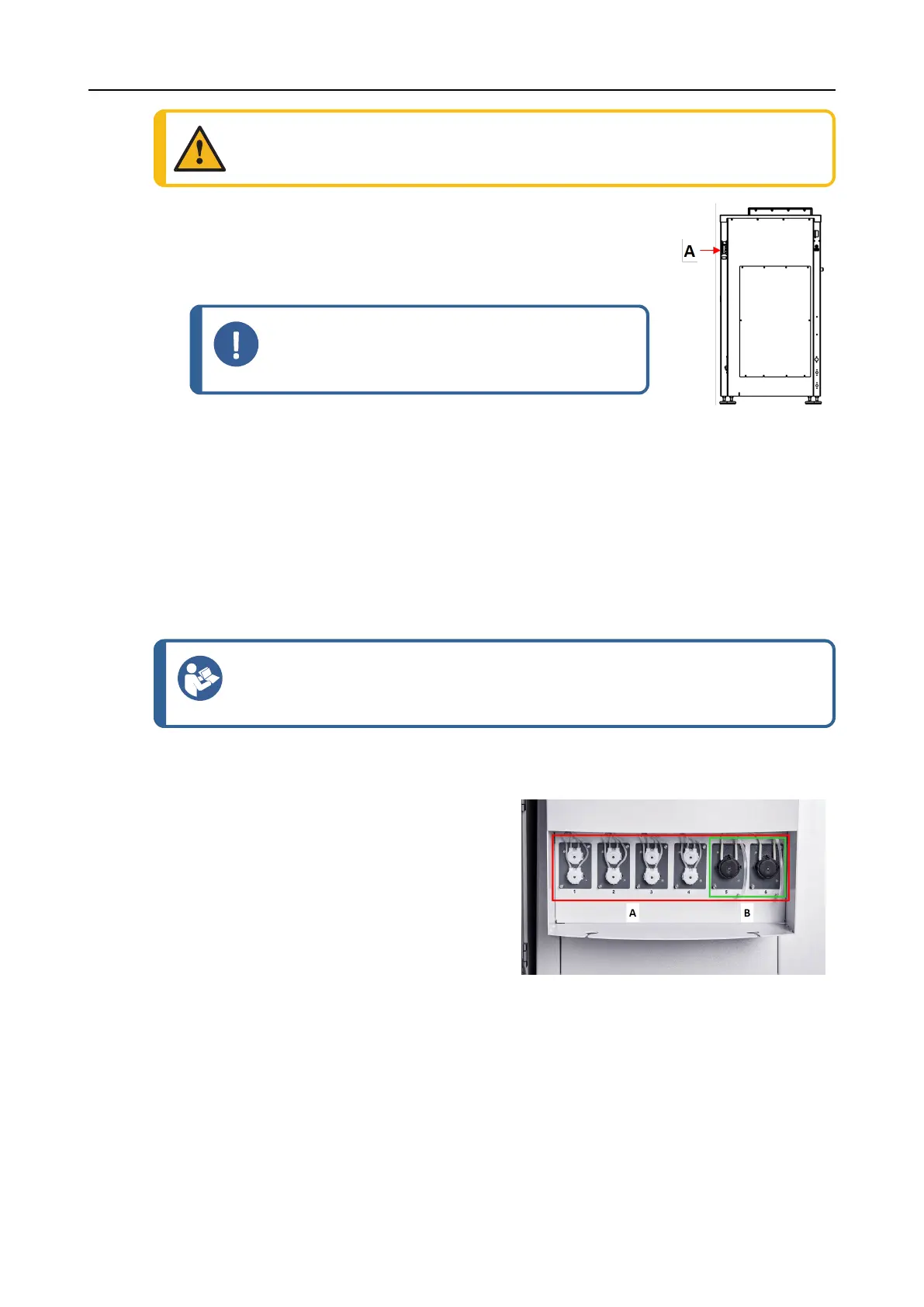

5.13 The dosing pump units
You can configure up to 6 pumps:
A DP-pumps
Up to 6 pumps, positions 1 to 6 (shown in
the red box)
B OP-pumps
Up to 2 pumps, positions 5 and 6 (shown in
the green box)
Mounting the dosing pump units
1. Remove the cover plates.
2. Insert the pump units in the correct position in the bottle units and push until they are firmly
secured.
3. Secure the units with the attached screws.
20 AbraPol-30
5 Installation
