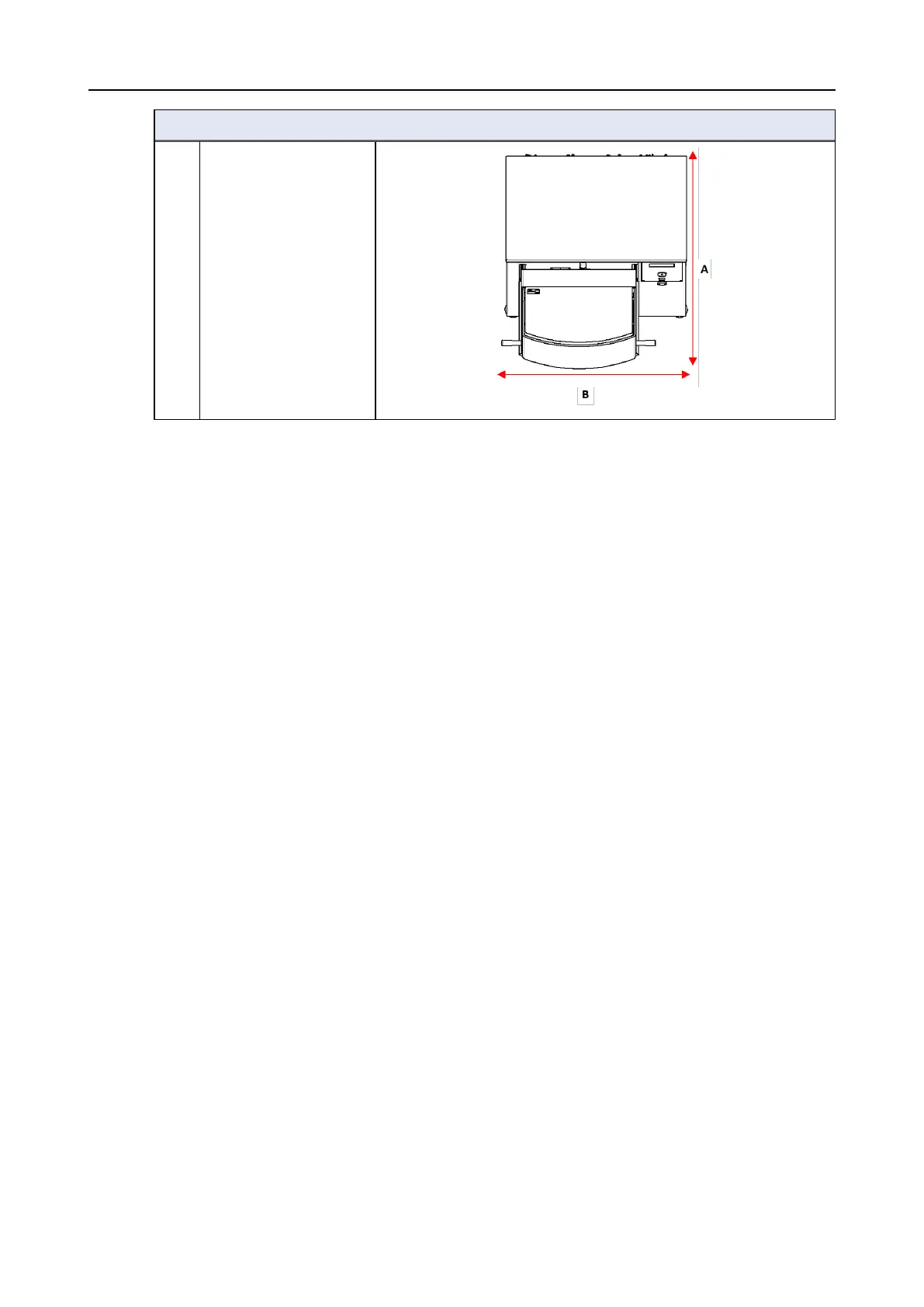

Footprint
A:
B:
100 cm/3'3"
86 cm/2'10"
10.5 Recommended space
Space in front of the machine
• Make sure that there is enough room in front of the
machine.
100 cm/40”
Space at the sides of the machine
• Recommended space at the sides of the machine. 100 cm/40"
Space at the rear of the machine
• The machine can be placed against a wall.
• Make sure that there is enough room behind the machine for access to the compressed air
connection.
10.6 Transport and storage
If, at any time after the installation, you have to move the unit or place it in storage, there is a number
of guidelines we recommend that you follow.
• Package the unit securely before transportation.
Insufficient packaging could cause damage to the unit and will void the warranty. Contact
Struers Service.
• Struers recommends that all original packaging and fittings are kept for future use.
