The machine is delivered without a power supply cable.
To install the electrical power supply, the following is needed:
• Electrical power supply cables,4-lead or 5-lead,three
phases and one earth connection

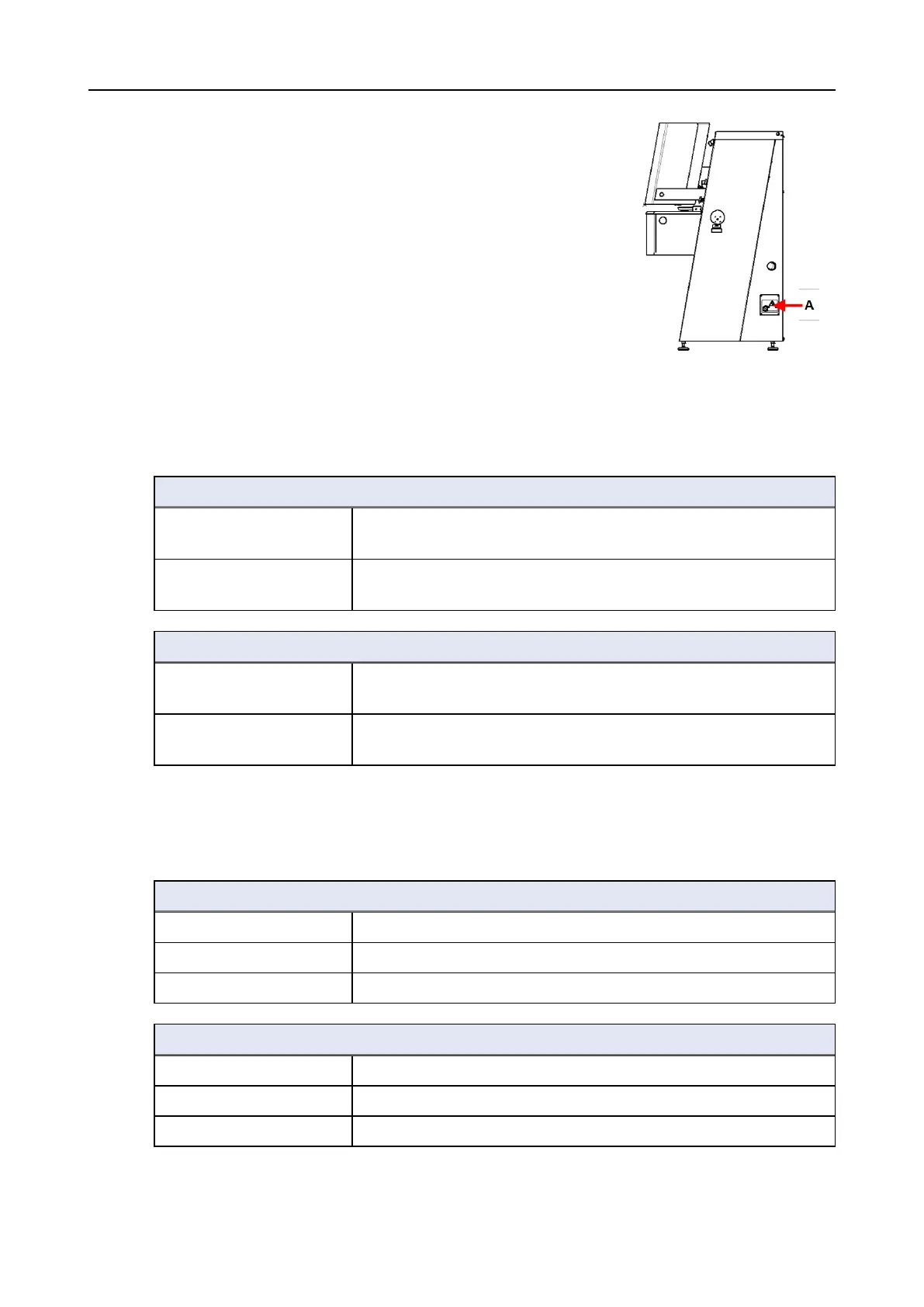

Connect the cable to the electrical connection box on the right
hand side of the machine (A).
Recommended power supply cable specifications
Local standards can override the recommendations for the main electrical power supply cable.If
needed, contact a qualified electrician to verify which option is suitable for the local installation setup.
Voltage/frequency: 3 x 200-240 V/50-60 Hz
Min. fuse:
25 A
Minimum cable size at minimum fuse:
3 x AWG12/2.5 mm
2
+ PE
Max. fuse:
35 A
Minimum cable size at maximum fuse:
3 x AWG12/2.5 mm
2
+ PE
Voltage/frequency: 3 x 380-480 V/50-60 Hz
Min. fuse:
15 A
Minimum cable size at minimum fuse:
3 x AWG14/1.5 mm
2
+ PE
Max. fuse:
35 A
Minimum cable size at maximum fuse:
3 x AWG12/2.5 mm
2
+ PE
Electrical data
The other end of the cable can be fitted with an approved plug or hard-wired into the power supply
according to the electrical specifications and local regulations.
Voltage/frequency: 3 x 200-240 V/50-60 Hz
Power consumption 200-240 V: 3 kW
Output, main motor 200-240 V: 2.2 kW
Max. load 200-240 V: 20 A
Voltage/frequency: 3 x 380-480 V/50-60 Hz
Power consumption 380-480 V/50-60 Hz: 3 kW
Output, main motor 380-480 V/50-60 Hz: 2.2 kW
Max. load 380-480 V/50-60 Hz: 11 A
