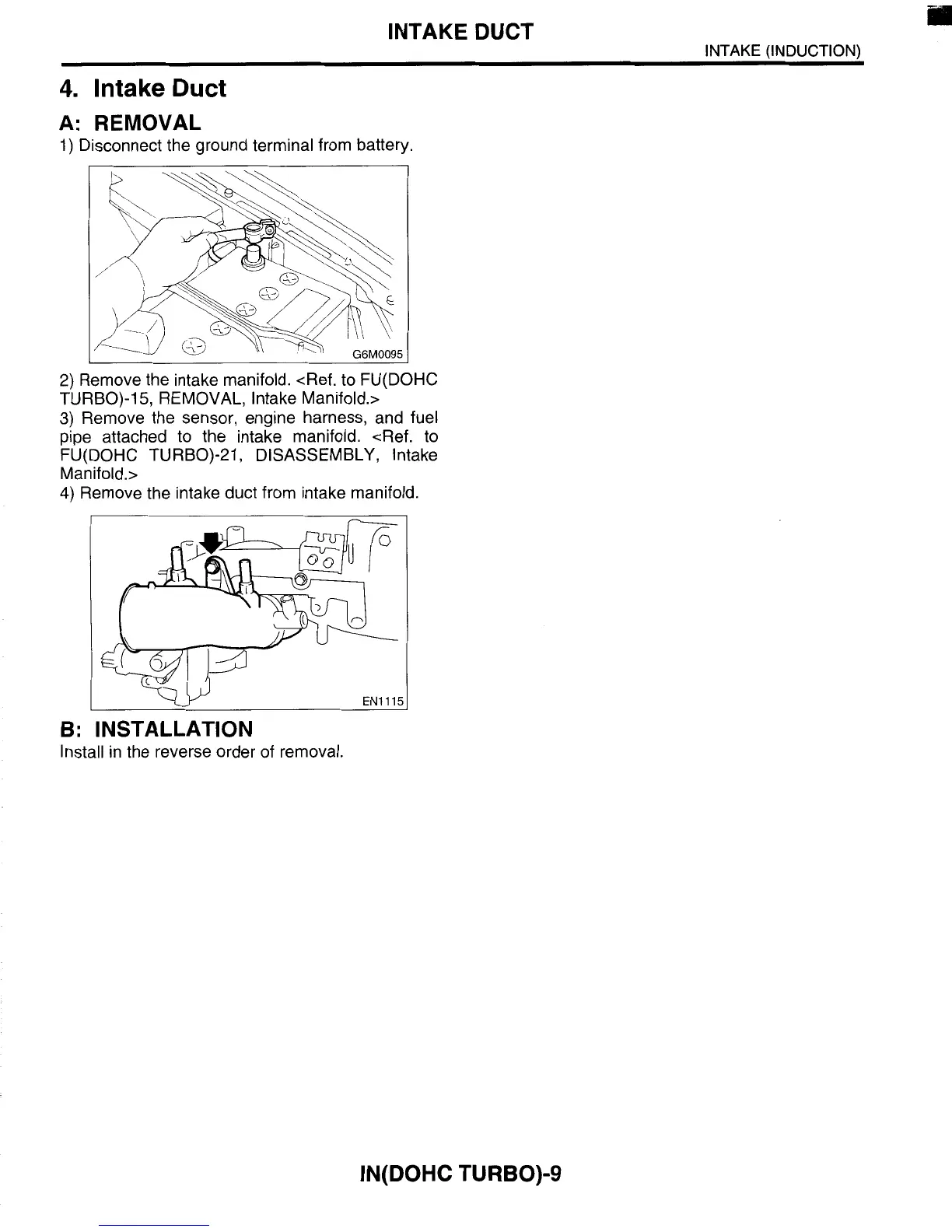

INTAKE (INDUCTION)
INTAKE DUCT
4.
Intake
Duct
A: REMOVAL
1) Disconnect the ground terminal from battery.
2) Remove the intake manifold. <Ref. to FU(D0HC
TURBO)-1
5,
REMOVAL, Intake Manifold.>
3)
Remove the sensor, engine harness, and fuel
pipe attached to the intake manifold. <Ref.
to
FU(D0HC TURBO)-21, DISASSEMBLY, Intake
Manifold.>
4)
Remove the intake duct from intake manifold.
ENIll!
B:
INSTALLATION
Install in the reverse order of removal.
IN(D0HC TURBO)-9
