ENGINE MOUNTING
MECHANICAL

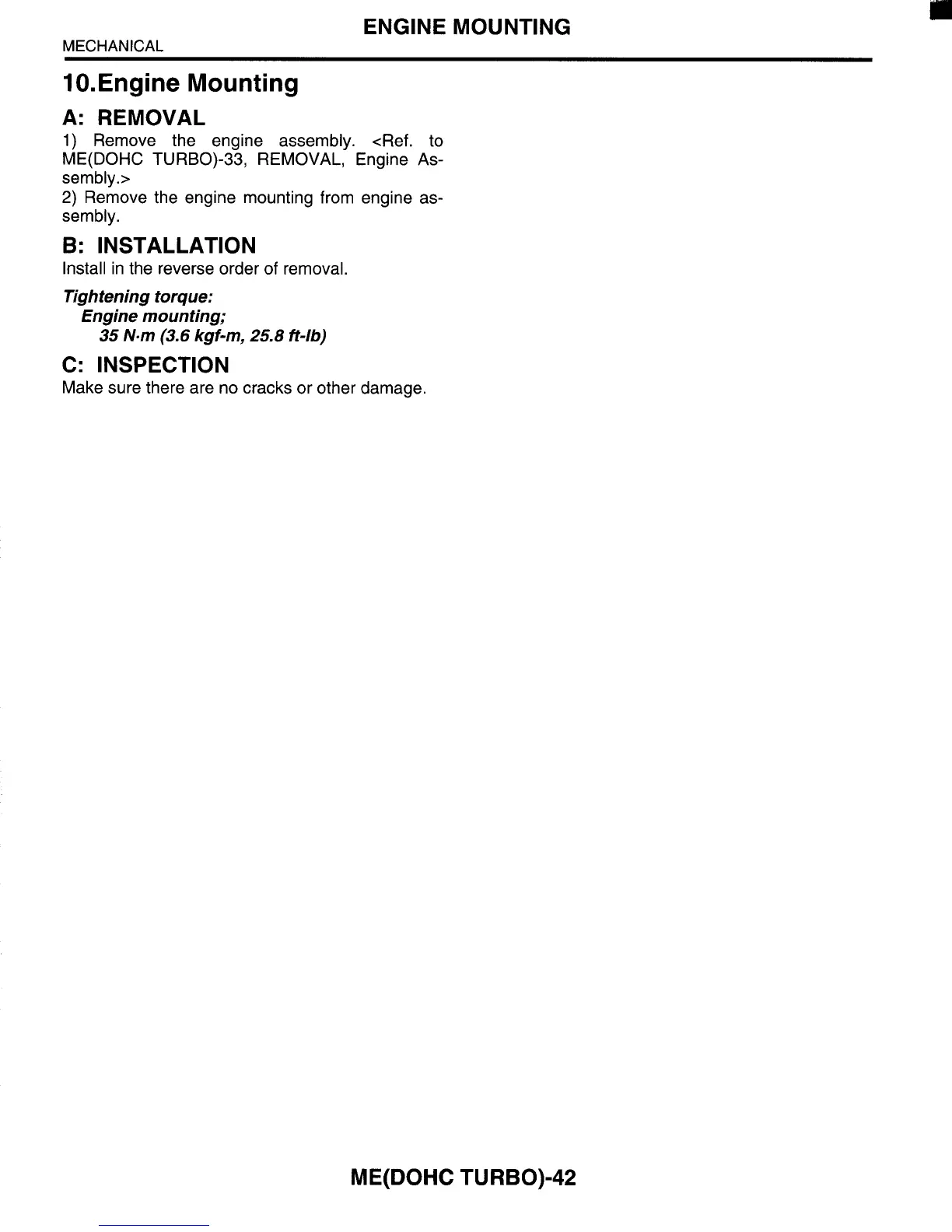

10.Engine Mounting
A:
REMOVAL
1)
Remove the engine assembly. <Ref. to
ME(D0HC TURBO)-33, REMOVAL, Engine As-
sembly.>
2) Remove the engine mounting from engine as-
sembly.
B:
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Engine mounting;
C: INSPECTION
Make sure there are no cracks or other damage
35
N-m
(3.6
kgf-m,
25.8
ft-lb)
ME(D0HC TURBO)-42
