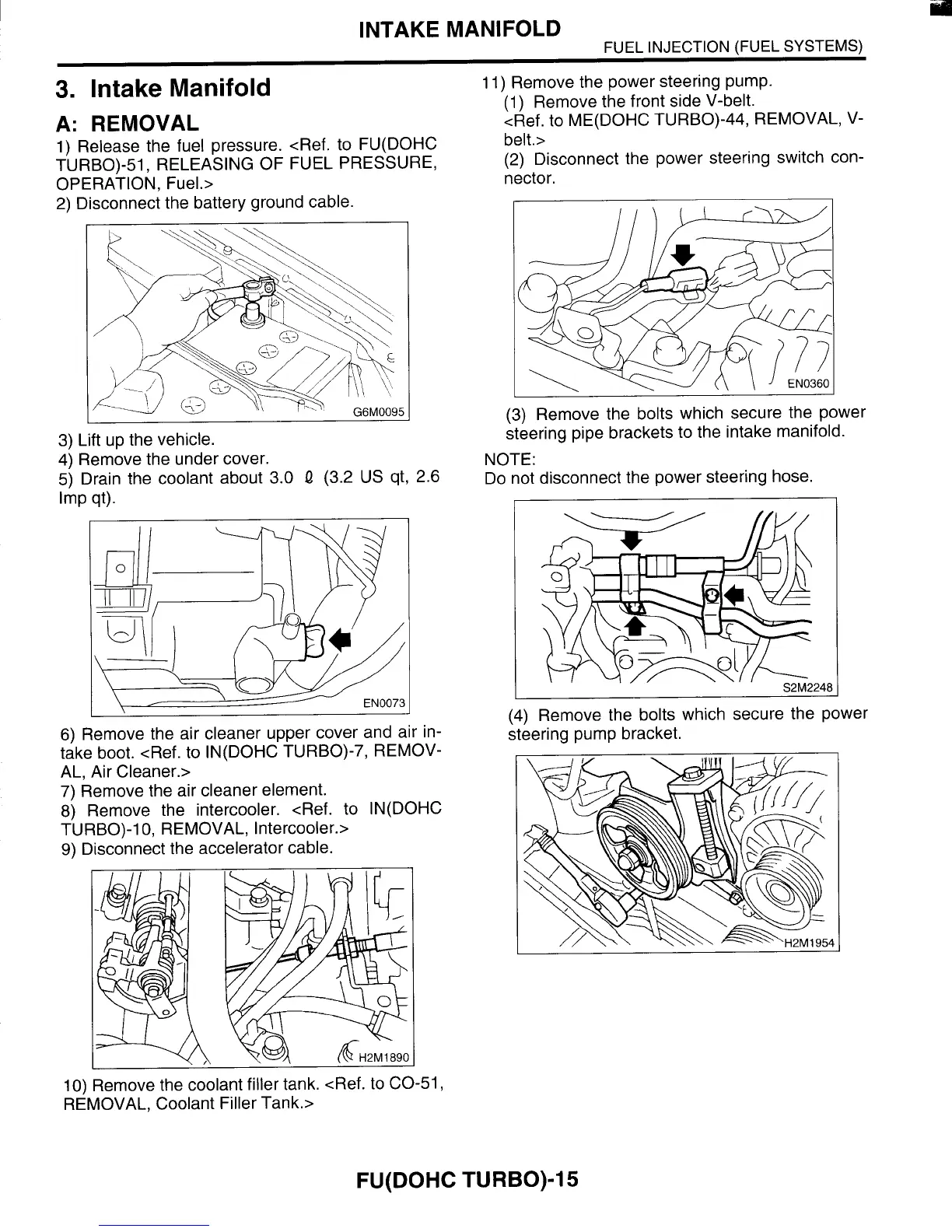

FUEL INJECTION (FUEL SYSTEMS)
INTAKE MANIFOLD
3.
Intake
Manifold
A: REMOVAL
1)
Release the fuel pressure. <Ref. to FU(D0HC
OPERATION, Fuel.>
2)
Disconnect the battery ground cable.
TURBO)-51, RELEASING OF FUEL PRESSURE,
3)
Lift up the vehicle.
4) Remove the under cover.
5)
Drain the coolant about
3.0
0
(3.2
US qt,
2.6
Imp qt).
6)
Remove the air cleaner upper cover and air in-
take boot. <Ref. to IN(D0HC TURBO)-7, REMOV-
AL, Air Cleaner.>
7)
Remove the air cleaner element.
8) Remove the intercooler. <Ref. to IN(D0HC
TURBO)-1
0,
REMOVAL, Intercooler.>
9)
Disconnect the accelerator cable.
10)
Remove the coolant filler tank. <Ref.
to
CO-51,
REMOVAL, Coolant Filler Tank.>
11)
Remove the power steering pump.
(1)
Remove the front side V-belt.
<Ref. to ME(D0HC TURBO)-44, REMOVAL, V-
belt.>
(2)
Disconnect the power steering switch con-
nector.
(3)
Remove the bolts which secure the power
steering pipe brackets to the intake manifold.
NOTE:
Do
not disconnect the power steering hose.
(4) Remove the bolts which secure the power
steering pump bracket.
FU(D0HC TURBO)-15
