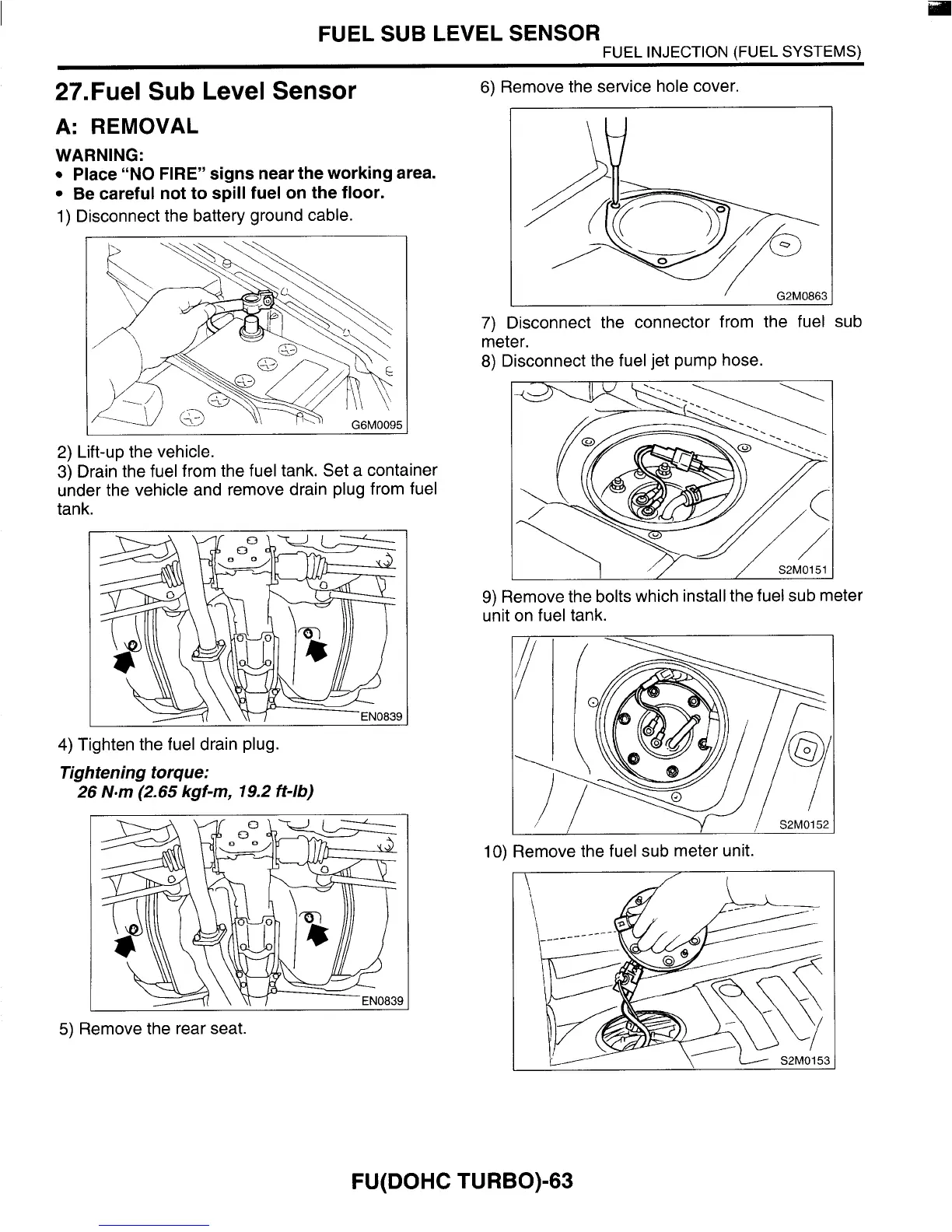

Subaru 2002 Impreza - Fuel Sub Level Sensor

FUEL SUB LEVEL SENSOR
FUEL INJECTION (FUEL SYSTEMS)
27.Fuel Sub Level Sensor
A: REMOVAL
WARNING:
Place “NO FIRE” signs near the working area.
Be careful not to spill fuel on the floor.
1) Disconnect the battery ground cable.
2) Lift-up the vehicle.
3) Drain the fuel from the fuel tank. Set a container
under the vehicle and remove drain plug from fuel
tank.
4) Tighten the fuel drain plug.
Tightening torque:
26
N.m (2.65 kgf-m, 79.2 ft-lb)
5) Remove the rear seat.
6) Remove the service hole cover.
G2M0863
/
7) Disconnect the connector from the fuel
meter.
8) Disconnect the fuel jet pump hose.
// / S2M0151
sub
9) Remove the bolts which install the fuel sub meter
unit on fuel tank.
10) Remove the fuel sub meter unit.
\
FU(D0HC TURBO)-63
