TIMING BELT ASSEMBLY
MECHANICAL

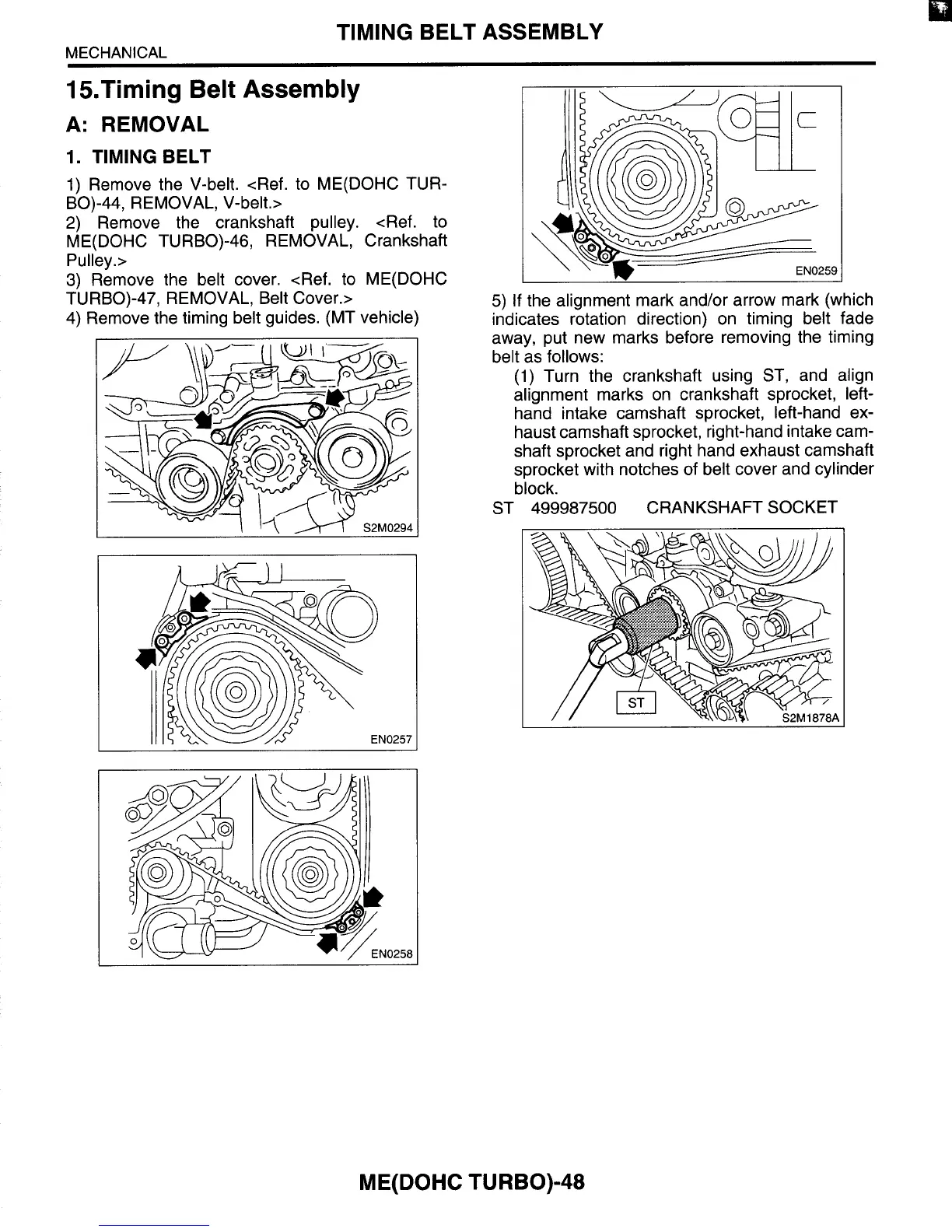

15Timing Belt Assembly
A: REMOVAL
1. TIMING BELT
1) Remove the V-belt. <Ref. to ME(D0HC TUR-
BO)-44, REMOVAL, V-belt.>
2) Remove the crankshaft pulley. <Ref. to
ME(D0HC TURBO)-46, REMOVAL, Crankshaft
Pulley.>
3) Remove the belt cover. <Ref. to ME(D0HC
TURBO)-47, REMOVAL, Belt Cover.>
4) Remove the timing belt guides. (MT vehicle)
EN0257
5) If the alignment mark and/or arrow mark (which
indicates rotation direction) on timing belt fade
away, put new marks before removing the timing
belt as follows:
(1) Turn the crankshaft using ST, and align
alignment marks on crankshaft sprocket, left-
hand intake camshaft sprocket, left-hand ex-
haust camshaft sprocket, right-hand intake cam-
shaft sprocket and right hand exhaust camshaft
sprocket with notches of belt cover and cylinder
block.
ST 499987500 CRANKSHAFT SOCKET
ME(D0HC TURBO)-48
