FUEL DELIVERY, RETURN AND EVAPORATION LINES
FUEL INJECTION (FUEL SYSTEMS)
3) Open the fuel filler flap lid and remove the fuel
filler cap.
4) Remove the floor mat. <Ref. to El-55, REMOV-
AL, Floor Mat.>
5) Remove the fuel delivery pipes and hoses, fuel
return pipes and hoses, evaporation pipes and
hos-

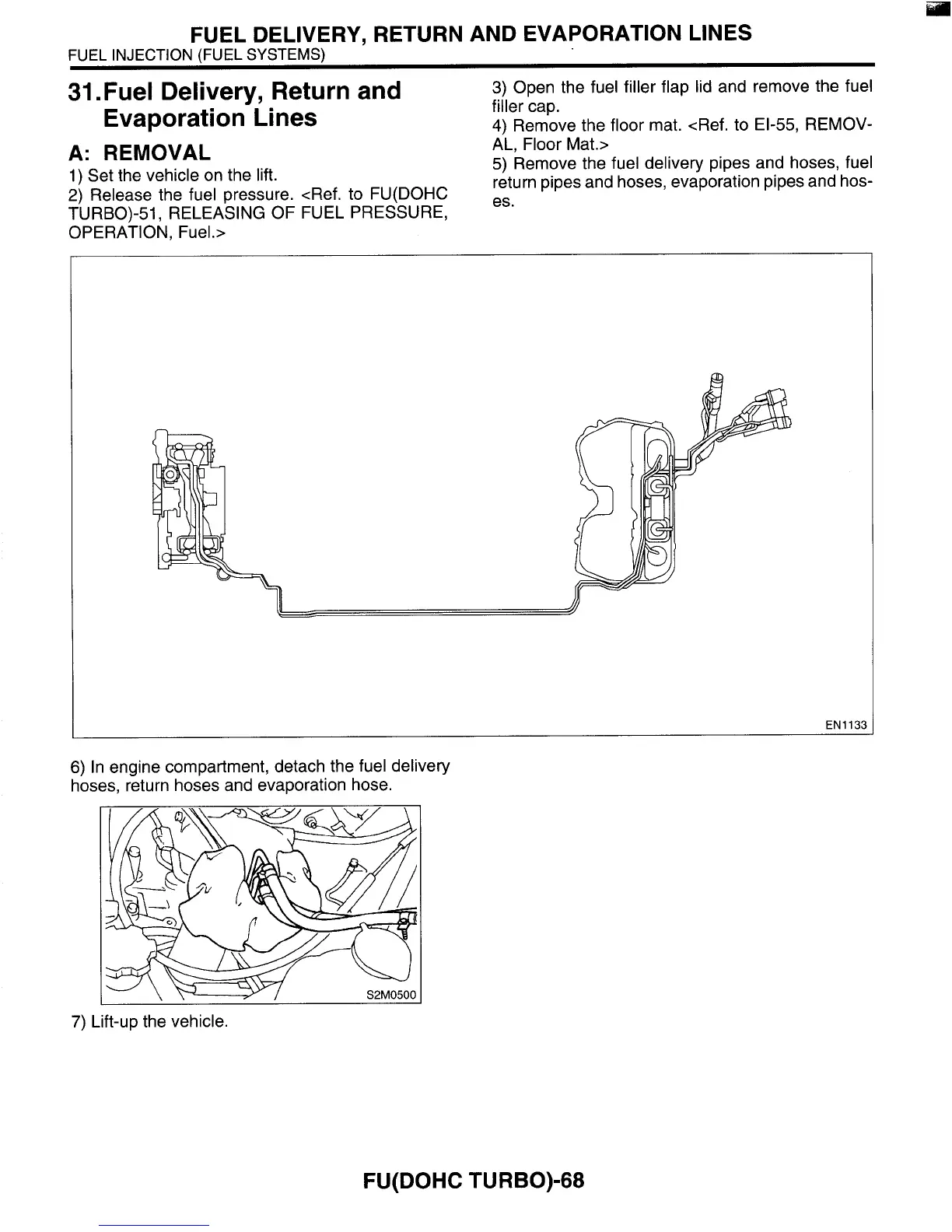

31 .Fuel Delivery, Return and
Evaporation Lines
A: REMOVAL
1) Set the vehicle on the lift.
2) Release the fuel pressure. <Ref. to FU(D0HC
OPERATION, Fuel.>
TURBO)-51, RELEASING OF FUEL PRESSURE,
EN1133
6) In engine compartment, detach the fuel delivery
hoses, return hoses and evaporation hose.
7) Lift-up the vehicle.
FU(D0HC TURBO)-68
