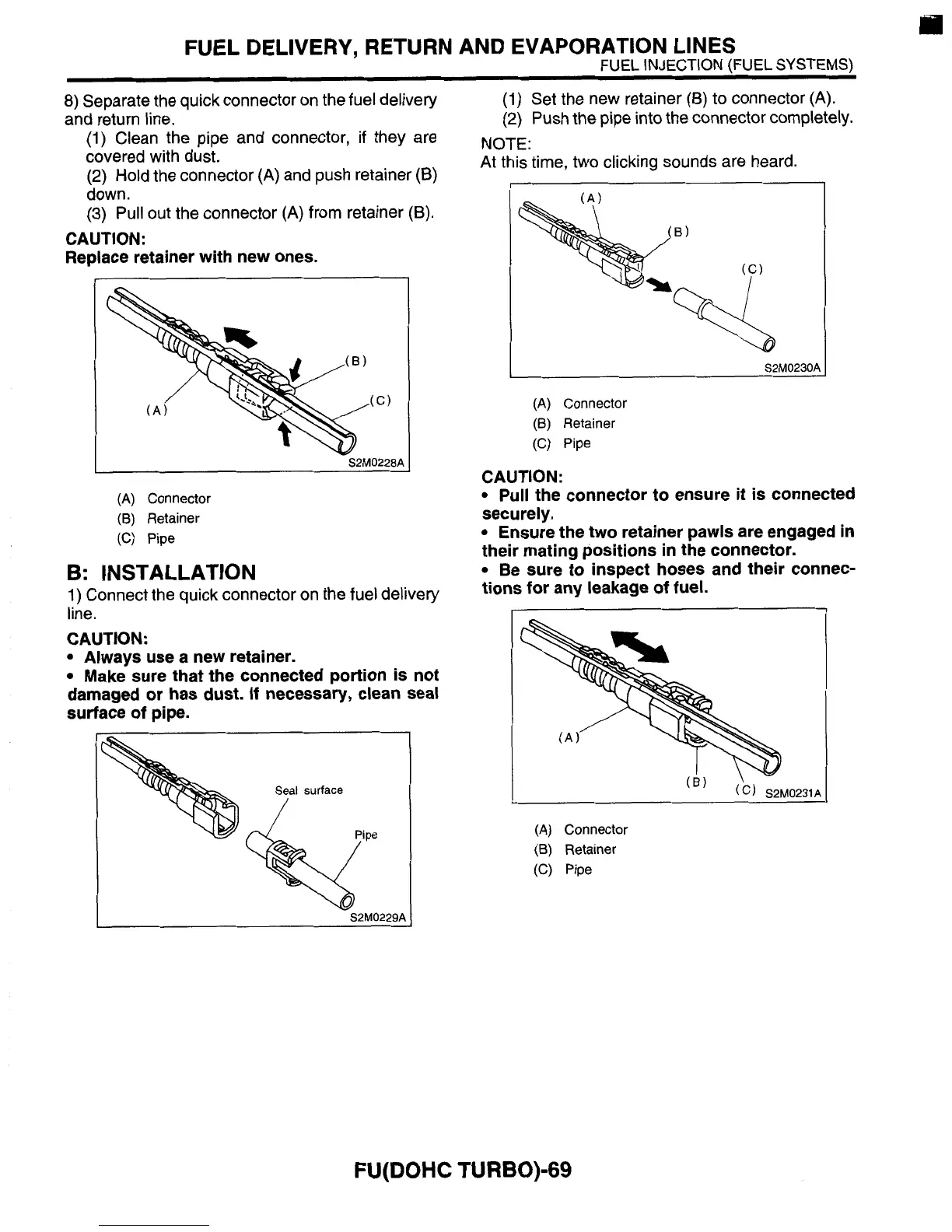

FUEL DELIVERY, RETURN AND EVAPORATION LINES
FUEL INJECTION (FUEL SYSTEMS)
8) Separate the quick connector on the fuel delivery
and return line.
(1)
Clean the pipe and connector,
if
they are
covered with dust.
(2)
Hold
the connector
(A)
and push retainer
(B)
down.
(3)
Pull out the connector
(A)
from retainer
(B).
CAUTION:
Replace retainer with new ones.
(C)
S2M0228P
(A)
Connector
(6)
Retainer
(C) Pipe
B:
INSTALLATION
1)
Connect the quick connector on the fuel delivery
line.
CAUTION:
Always use a new retainer.
Make sure that the connected
portion
is not
damaged
or
has
dust.
If
necessary, clean seal
surface of pipe.
I
S2M0229f
(1)
Set the new retainer
(B)
to connector
(A).
(2)
Push the pipe into the connector completely.
NOTE:
At this time, two clicking sounds are heard.
(C)
I
S2M0230E
(A)
Connector
(B)
Retainer
(C) Pipe
CAUTION:
Pull the connector to ensure
it
is
connected
securely.
Ensure the
two
retainer pawls are engaged
in
their mating positions
in
the connector.
Be sure
to
inspect hoses and their connec-
tions
for any leakage
of
fuel.
(A)
Connector
(6)
Retainer
(C) Pipe
FU(D0HC TURBO)-69
