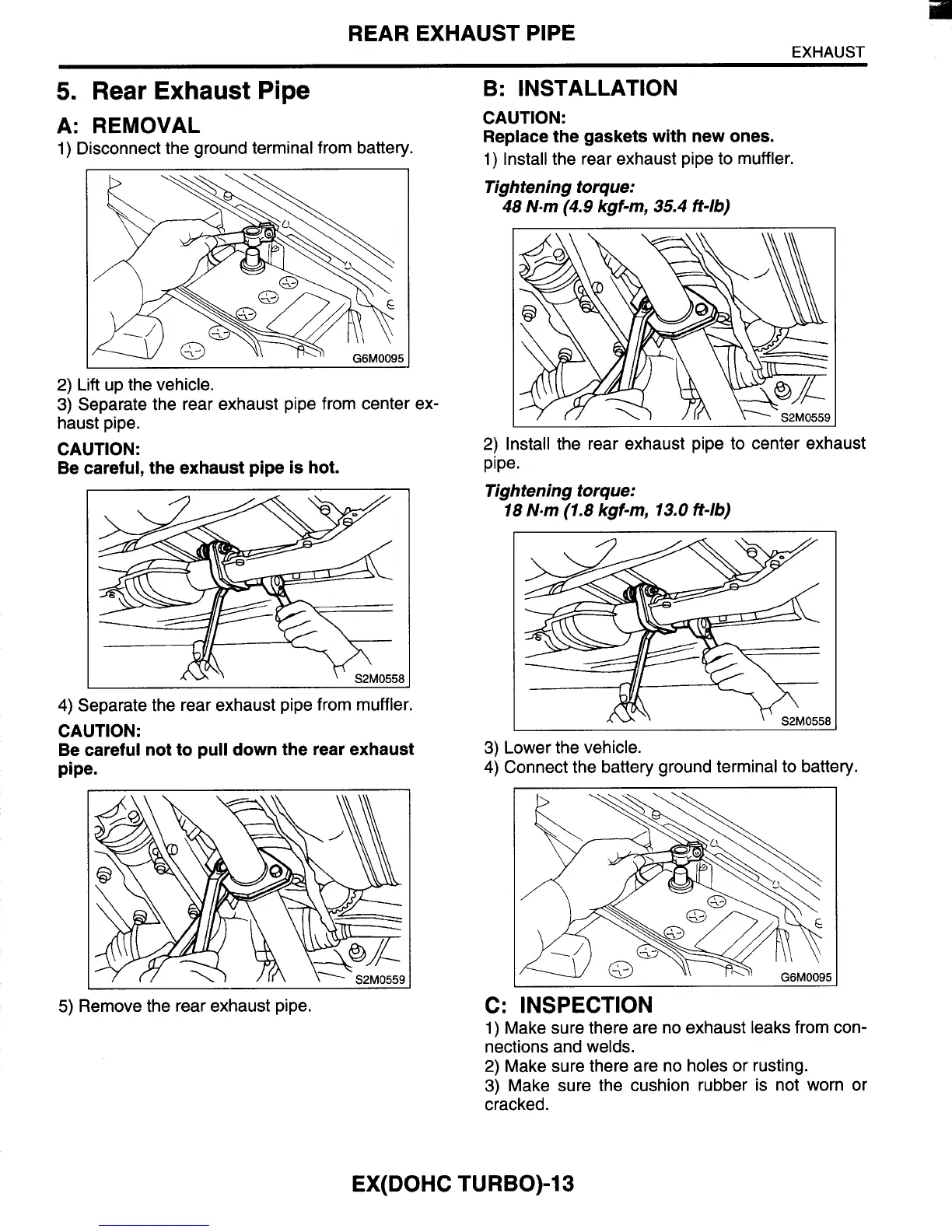

REAR EXHAUST PIPE
EXHAUST
5.
Rear
Exhaust
Pipe
A: REMOVAL
1)
Disconnect the ground terminal from battery.
2)
Lift up the vehicle.
3)
Separate the rear exhaust pipe from center ex-
haust pipe.
CAUTION:
Be careful, the exhaust pipe is hot.
4)
Separate the rear exhaust pipe from muffler.
CAUTION:
Be careful not to pull down the rear exhaust
pipe.
~~
5)
Remove the rear exhaust pipe.
B: INSTALLATION
CAUTION:
Replace the gaskets with new ones.
1)
Install the rear exhaust pipe to muffler.
Tightening torque:
48 N.m (4.9 kgf-m, 35.4 ft-lb)
2)
Install the rear exhaust pipe to center exhaust
pipe.
Tightening torque:
18 N-m (1.8 kgf-m, 13.0 ft-lb)
3)
Lower the vehicle.
4)
Connect the battery ground terminal to battery.
C: INSPECTION
1)
Make sure there are no exhaust leaks from con-
nections and welds.
2)
Make sure there are no holes or rusting.
3)
Make sure the cushion rubber is not worn or
cracked.
EX(D0HC TURBO)-13
