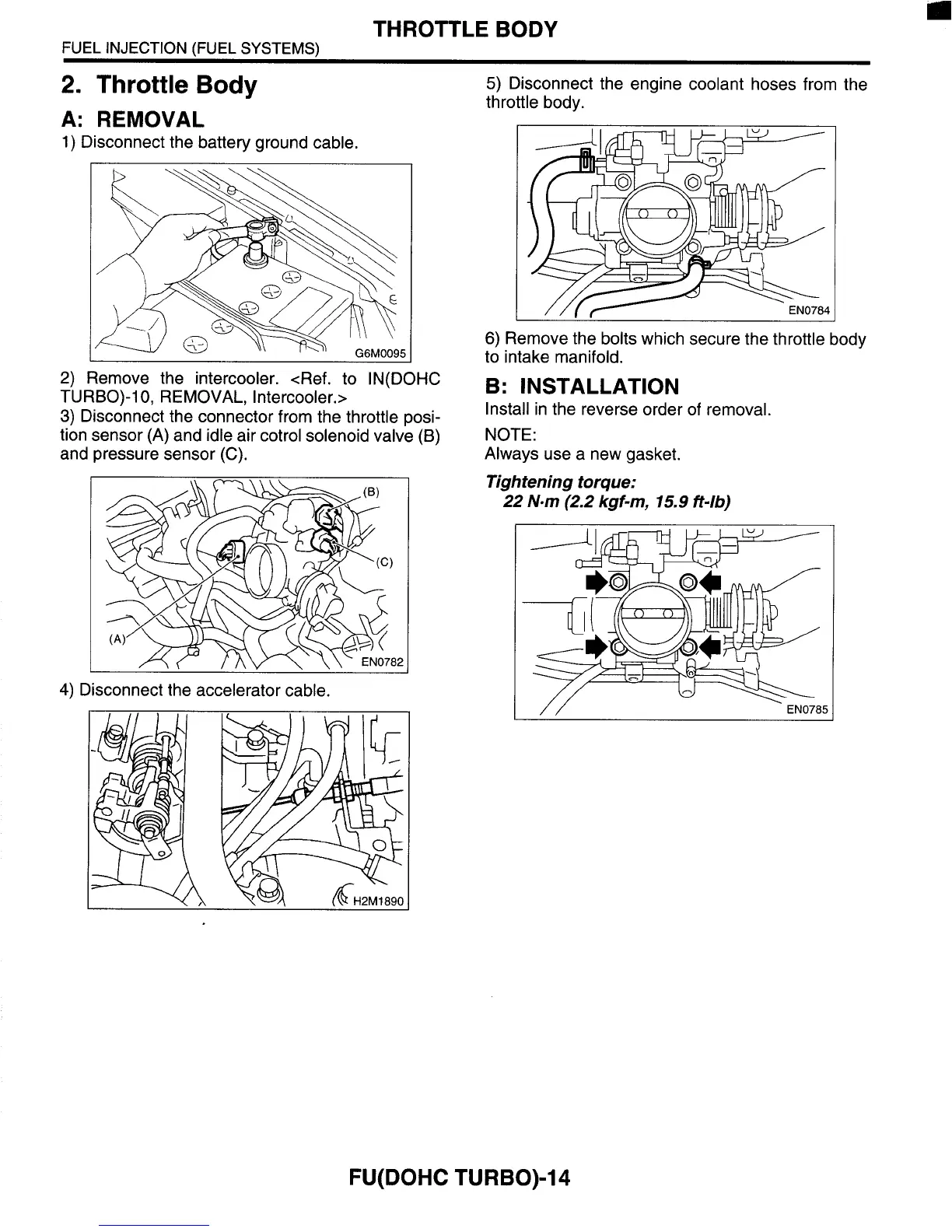

THROTTLE BODY
FUEL INJECTION (FUEL SYSTEMS)
2.
Throttle
Body
A:
REMOVAL
1) Disconnect the battery ground cable.
2)
Remove the intercooler. <Ref. to IN(D0HC
TURBO)-1
0,
REMOVAL, Intercooler.>
3)
Disconnect the connector from the throttle posi-
tion sensor (A) and idle air cotrol solenoid valve (B)
and pressure sensor (C).
4) Disconnect the accelerator cable.
5)
Disconnect the engine coolant hoses from the
throttle body.
6)
Remove the bolts which secure the throttle body
to intake manifold.
6:
INSTALLATION
Install in the reverse order of removal.
NOTE:
Always use a new gasket.
Tightening torque:
22
N-m
(2.2
kgf-m,
15.9
Mb)
//
EN0785
FU(D0HC TURBO)-14
