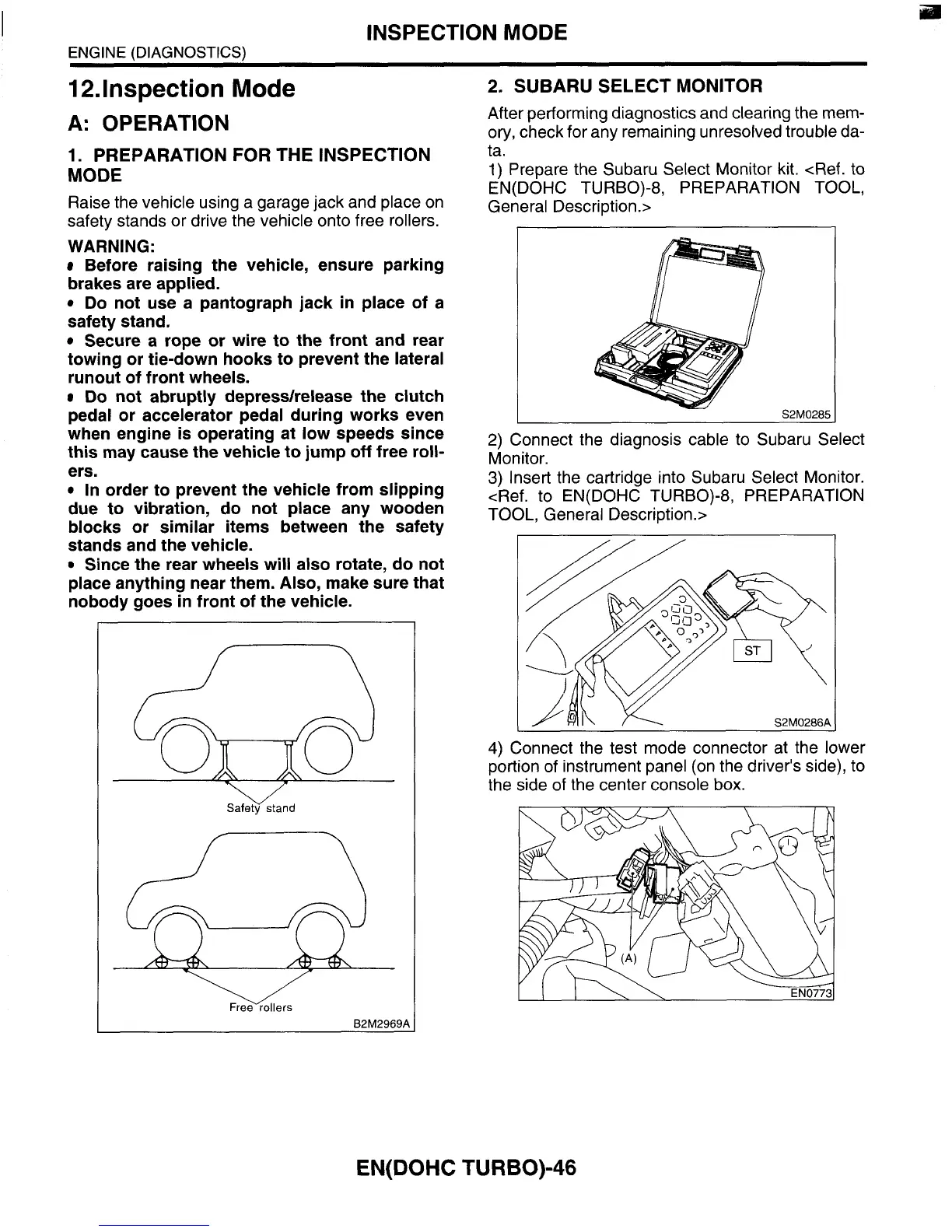

INSPECTION MODE
ENGINE (DIAGNOSTICS)
12.lnspection
Mode
A: OPERATION
1.
PREPARATION FOR
THE
INSPECTION
MODE
Raise the vehicle using a garage jack and place on
safety stands or drive the vehicle onto free rollers.
WARNING:
Before raising the vehicle, ensure parking
brakes are applied.
Do
not use a pantograph jack in place of a
safety stand.
Secure a rope or wire to the front and rear
towing or tie-down hooks to prevent the lateral
runout of front wheels.
Do
not abruptly depresshelease the clutch
pedal or accelerator pedal during works even
when engine is operating at low speeds since
this may cause the vehicle to jump
off
free roll-
ers.
In order to prevent the vehicle from slipping
due to vibration, do not place any wooden
blocks or similar items between the safety
stands and the vehicle.
Since the rear wheels will also rotate, do not
place anything near them.
Also,
make sure that
nobody goes
in
front of the vehicle.
Safeystand
02M2969P
2.
SUBARU SELECT MONITOR
After performing diagnostics and clearing the mem-
ory,
check for any remaining unresolved trouble da-
ta.
1)
Prepare the Subaru Select Monitor kit. <Ref. to
General Description.>
EN(D0HC TURBO)-8, PREPARATION TOOL,
S2M0285
2)
Connect the diagnosis cable to Subaru Select
Monitor.
3)
Insert the cartridge into Subaru Select Monitor.
<Ref. to EN(D0HC TURBO)-8, PREPARATION
TOOL, General Description.>
4) Connect the test mode connector at the lower
portion of instrument panel (on the driver's side), to
the side
of
the center console box.
EN(D0HC TURBO)-46
