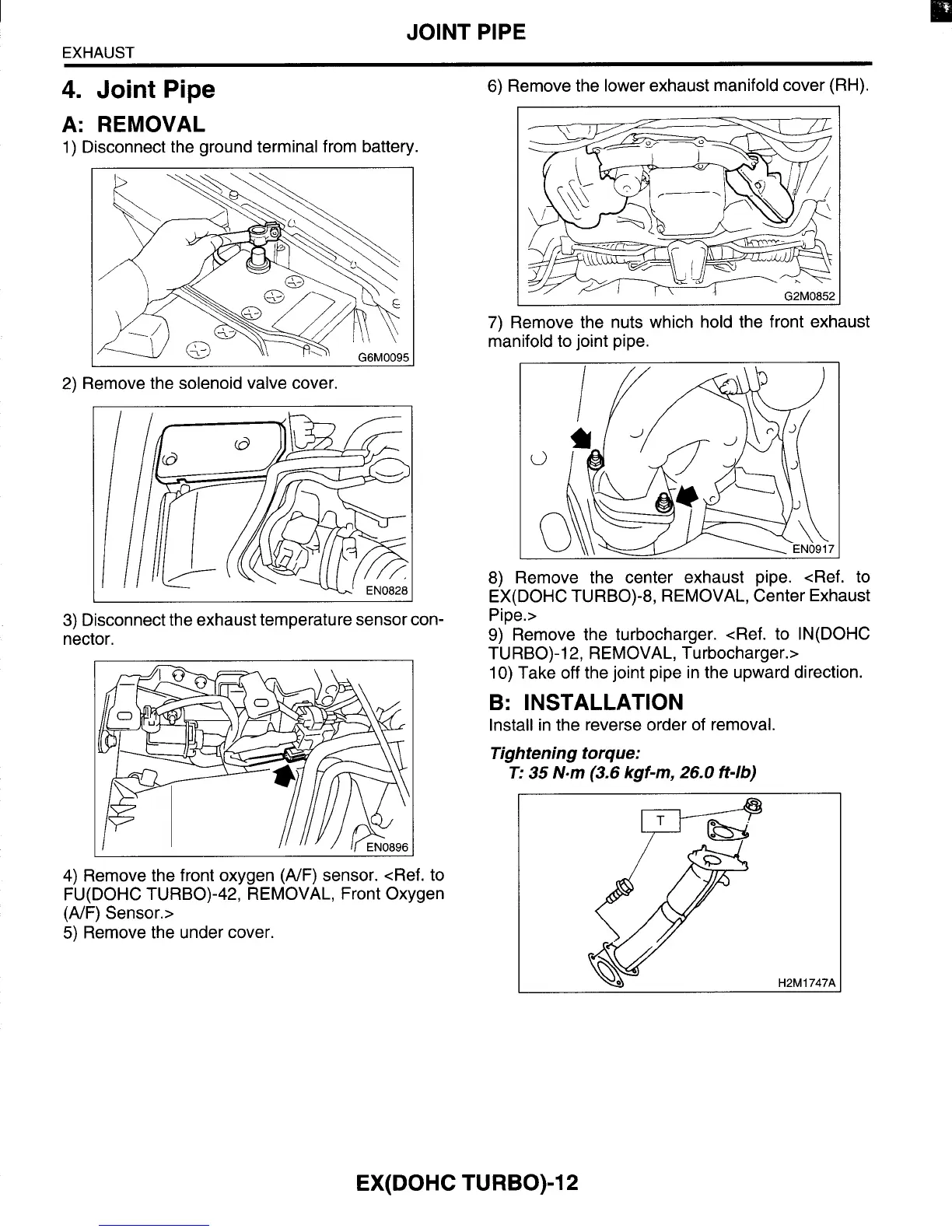

JOINT PIPE
EXHAUST
4.
Joint
Pipe
A:
REMOVAL
1
)
Disconnect the ground terminal from battery
2) Remove the solenoid valve cover.
3)
Disconnect the exhaust temperature sensor con-
nector.
4) Remove the front oxygen (NF) sensor. <Ref.
to
FU(D0HC TURBO)-42, REMOVAL, Front Oxygen
(NF) Sensor.>
5)
Remove the under cover.
6)
Remove the lower exhaust manifold cover (RH).
7)
Remove the nuts which hold the front exhaust
manifold to joint pipe.
8) Remove the center exhaust pipe. <Ref. to
EX(D0HC TURBO)-8, REMOVAL, Center Exhaust
Pipe.>
9)
Remove the turbocharger. <Ref. to IN(D0HC
TURBO)-12, REMOVAL, Turbocharger.>
10)
Take off the joint pipe in the upward direction.
B:
INSTALLATION
Install in the reverse order of removal.
Tightening
torque:
T: 35
N-m
(3.6 kgf-m, 26.0 ff-lb)
EX(D0HC
TURBO)-12
