ENGINE CONTROL MODULE
I
FUEL INJECTION (FUEL SYSTEMS)

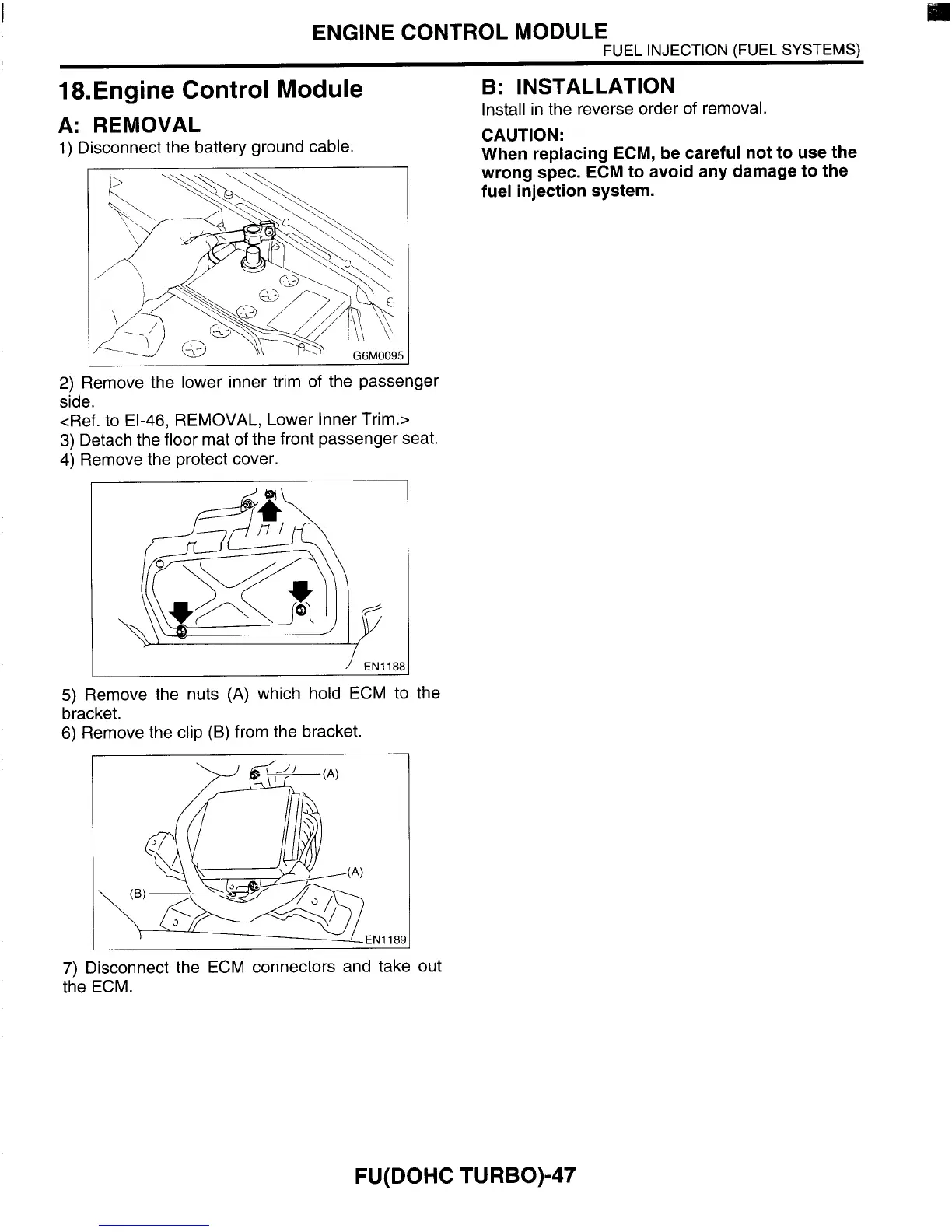

18.Engine Control Module
A: REMOVAL
1) Disconnect the battery ground cable.
2) Remove the lower inner trim of the passenger
side.
<Ref. to El-46, REMOVAL, Lower Inner Trim.>
3) Detach the floor mat of the front passenger seat.
4) Remove the protect cover.
I EN118E
5) Remove the nuts (A) which hold ECM to the
bracket.
6) Remove the clip (B) from the bracket.
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
When replacing
ECM, be careful not to use the
wrong spec.
ECM to avoid any damage to the
fuel injection system.
7) Disconnect the ECM connectors and take out
the ECM.
FU( DOHC TU RB0)-47
