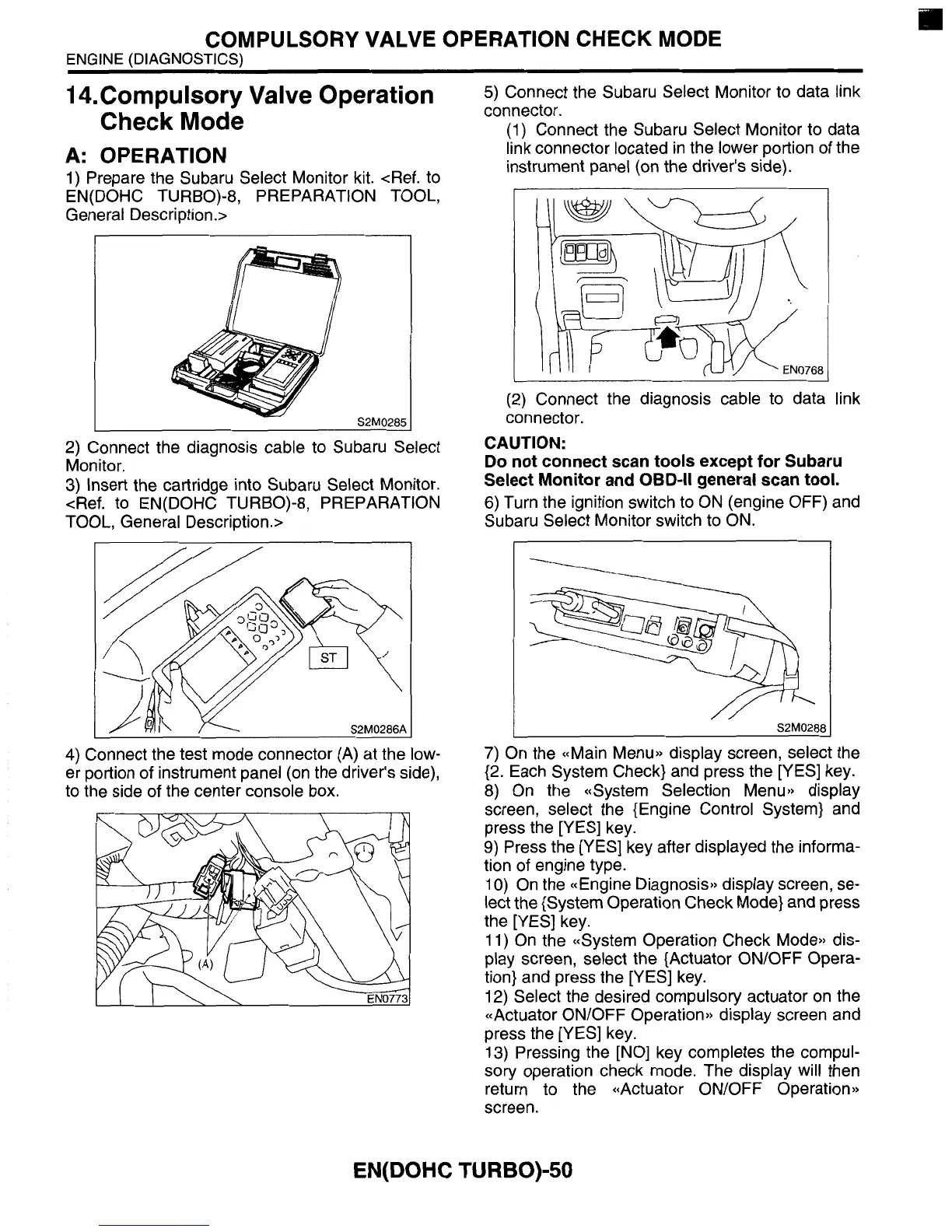

COMPULSORY VALVE OPERATION CHECK MODE
ENGINE
(DIAGNOSTICS)
14.Compulsory Valve Operation
A:
OPERATION
1)
Prepare the Subaru Select Monitor kit. <Ref. to
General Description.>
Check Mode
EN(D0HC TURBO)-8, PREPARATION TOOL,
S2M0285
~
2)
Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge into Subaru Select Monitor.
<Ref. to EN(D0HC TURBO)-8, PREPARATION
TOOL, General Description.>
S2M0286A
4) Connect the test mode connector (A) at the low-
er portion
of
instrument panel (on the driver's side),
to the side
of
the center console box.
5)
Connect the Subaru Select Monitor to data link
connector.
(1) Connect the Subaru Select Monitor to data
link connector located in the lower portion of the
instrument panel (on the driver's side).
I
I
(2)
Connect the diagnosis cable to data link
connector.
CAUTION:
Do
not connect scan tools except for Subaru
Select Monitor and
OBD-ll
general scan tool.
6)
Turn the ignition switch
to
ON (engine OFF) and
Subaru Select Monitor switch
to
ON.
I
S2M0288
I
7)
On the ((Main Menu)) display screen, select the
(2.
Each System Check} and press the [YES] key.
8) On the ((System Selection Menu)) display
screen, select the {Engine Control System} and
press the [YES] key.
9) Press the [YES] key after displayed the informa-
tion
of
engine type.
10) On the ((Engine Diagnosis)) display screen, se-
lect the {System Operation Check Mode} and press
the [YES] key.
11)
On the ((System Operation Check Mode)) dis-
play screen, select the {Actuator ON/OFF Opera-
tion} and press the [YES] key.
12)
Select the desired compulsory actuator on the
((Actuator ON/OFF Operation)) display screen and
press the [YES] key.
13) Pressing the [NO] key completes the compul-
sory operation check mode. The display will then
return to the ((Actuator ON/OFF Operation))
screen.
EN(D0HC TURBO)-50
