SUBARU SELECT MONITOR
ENG IN E (DIAGNOSTICS)

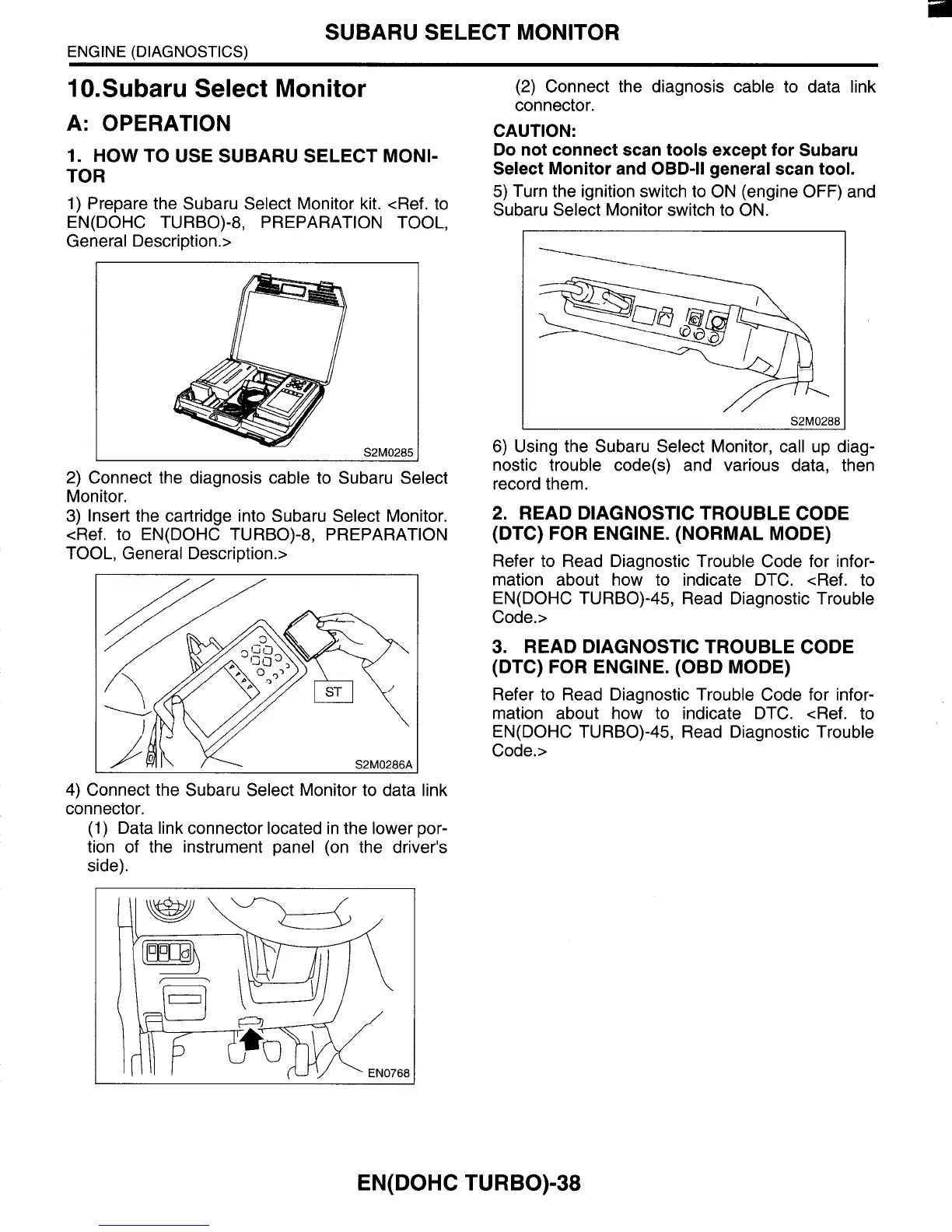

1O.Subaru Select Monitor
A: OPERATION
TOR
1) Prepare the Subaru Select Monitor kit. <Ref. to
General Description.>
1. HOW TO USE SUBARU SELECT MONI-
EN(D0HC TURBO)-8, PREPARATION TOOL,
2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge into Subaru Select Monitor.
<Ref. to EN(D0HC TURBO)-8. PREPARATION
TOOL, General Description.>
4) Connect the Subaru Select Monitor to data link
connector.
(1) Data link connector located in the lower por-
tion of the instrument panel (on the driver's
side).
(2) Connect the diagnosis cable to data link
connector.
CAUTION:
Do not connect scan tools except for Subaru
Select Monitor and
OBD-ll general scan tool.
5) Turn the ignition switch to ON (engine OFF) and
Subaru Select Monitor switch to ON.
I 52M0288 I
6) Using the Subaru Select Monitor, call up diag-
nostic trouble code(s) and various data, then
record them.
2. READ DIAGNOSTIC TROUBLE CODE
(DTC)
FOR ENGINE. (NORMAL MODE)
Refer to Read Diagnostic Trouble Code for infor-
mation about how to indicate DTC. <Ref. to
EN(D0HC TURBO)-45, Read Diagnostic Trouble
Code.>
3. READ DIAGNOSTIC TROUBLE CODE
(DTC)
FOR ENGINE. (OBD MODE)
Refer to Read Diagnostic Trouble Code for infor-
mation about how to indicate DTC. <Ref.
to
EN(D0HC TURBO)-45, Read Diagnostic Trouble
Code.>
EN( DOHC TU RB0)-38
