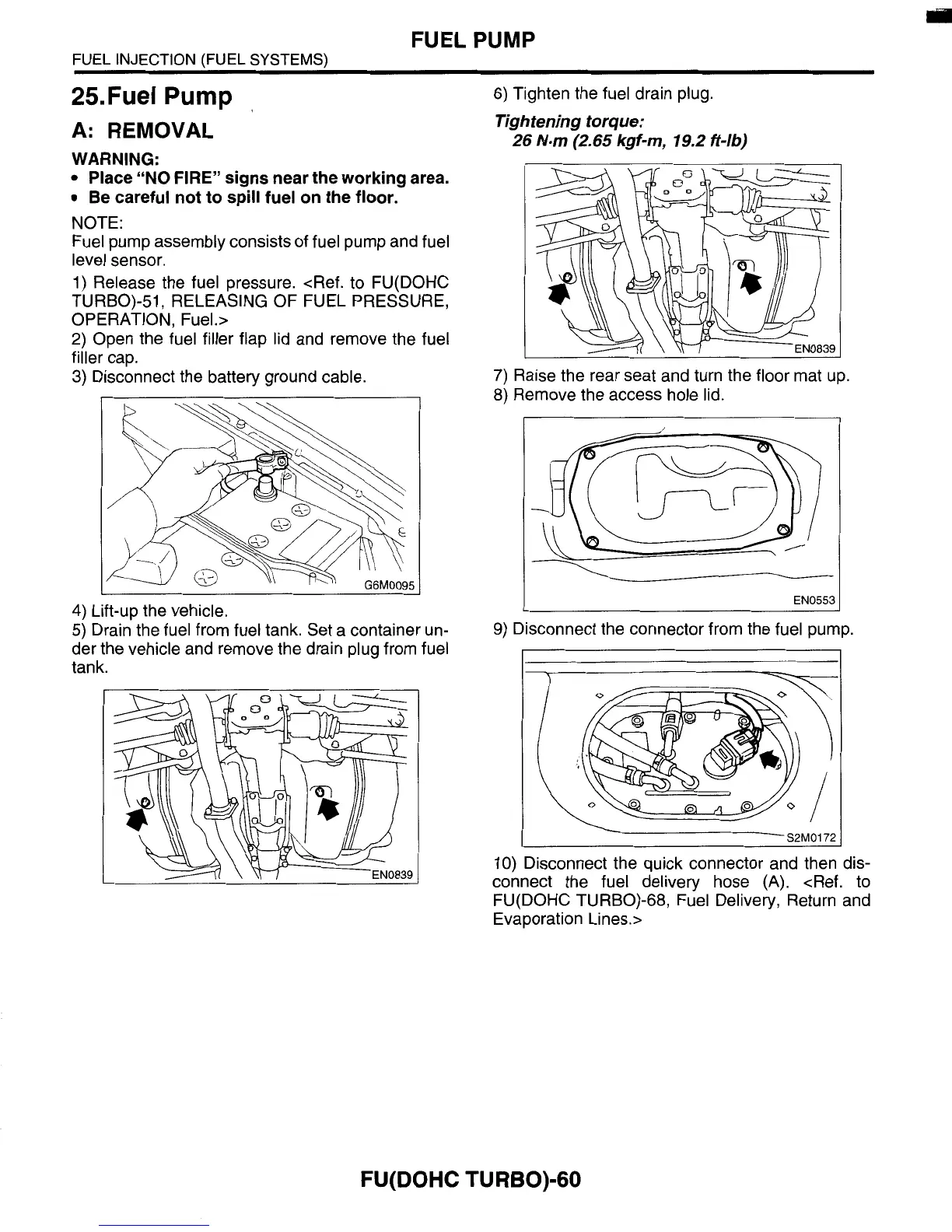

FUEL PUMP
FUEL
INJECTION
(FUEL
SYSTEMS)
25.Fuel
Pump
A:
REMOVAL
WARNING:
Place “NO FIRE” signs near the working area.
Be
careful not to
spill
fuel on the floor.
NOTE:
Fuel pump assembly consists of fuel pump and fuel
level sensor.
1)
Release the fuel pressure. <Ref. to FU(D0HC
OPERATION, Fuel.>
2)
Open the fuel filler flap lid and remove the fuel
filler cap.
3)
Disconnect the battery ground cable.
TURBO)-51, RELEASING OF FUEL PRESSURE,
4) Lift-up the vehicle.
5)
Drain the fuel from fuel tank. Set a container un-
der the vehicle and remove the drain plug from fuel
tank.
6)
Tighten the fuel drain plug.
Tigh tening torque:
26
N.m
(2.65
kgf-m,
19.2
ff-lb)
7)
Raise the rear seat and turn the floor mat up.
8) Remove the access hole lid.
I
I\
\
I
I
I1
I
.
EN0552
9)
Disconnect the connector from the fuel pump.
10)
Disconnect the quick connector and then dis-
connect the fuel delivery hose (A). <Ref. to
FU(D0HC TURBO)-68, Fuel Delivery, Return and
Evaporation Lines.>
