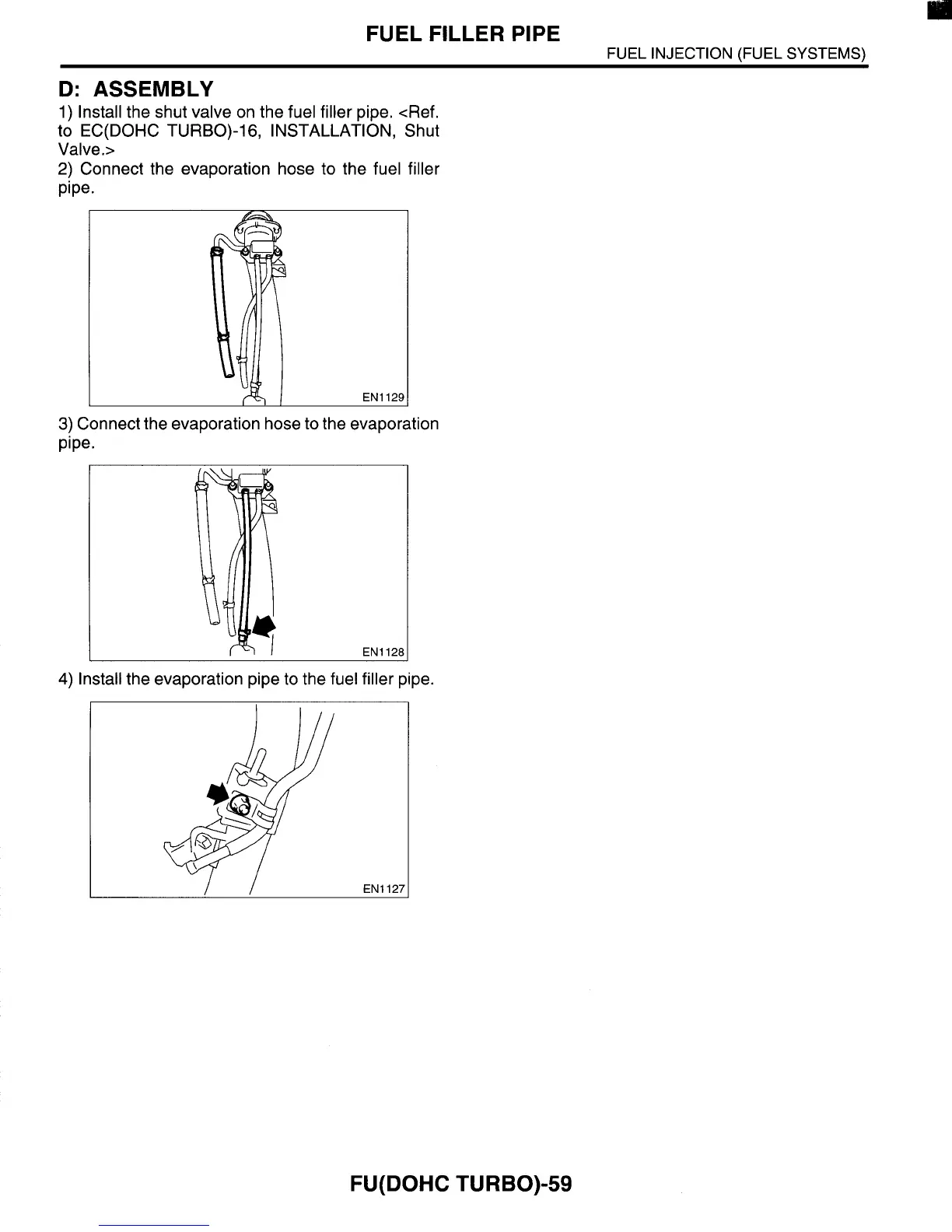

FUEL FILLER PIPE
FUEL INJECTION (FUEL SYSTEMS)
D:
ASSEMBLY
1) Install the shut valve on the fuel filler pipe. <Ref.
Valve.>
2)
Connect the evaporation hose
to
the fuel filler
pipe.
to EC(D0HC TURBO)-16, INSTALLATION, Shut
3)
Connect the evaporation hose to the evaporation
pipe.
4) Install the evaporation pipe to the fuel filler pipe.
FU(D0HC TURBO)-59
