FUEL FILLER PIPE
FUEL INJECTION (FUEL SYSTEMS)

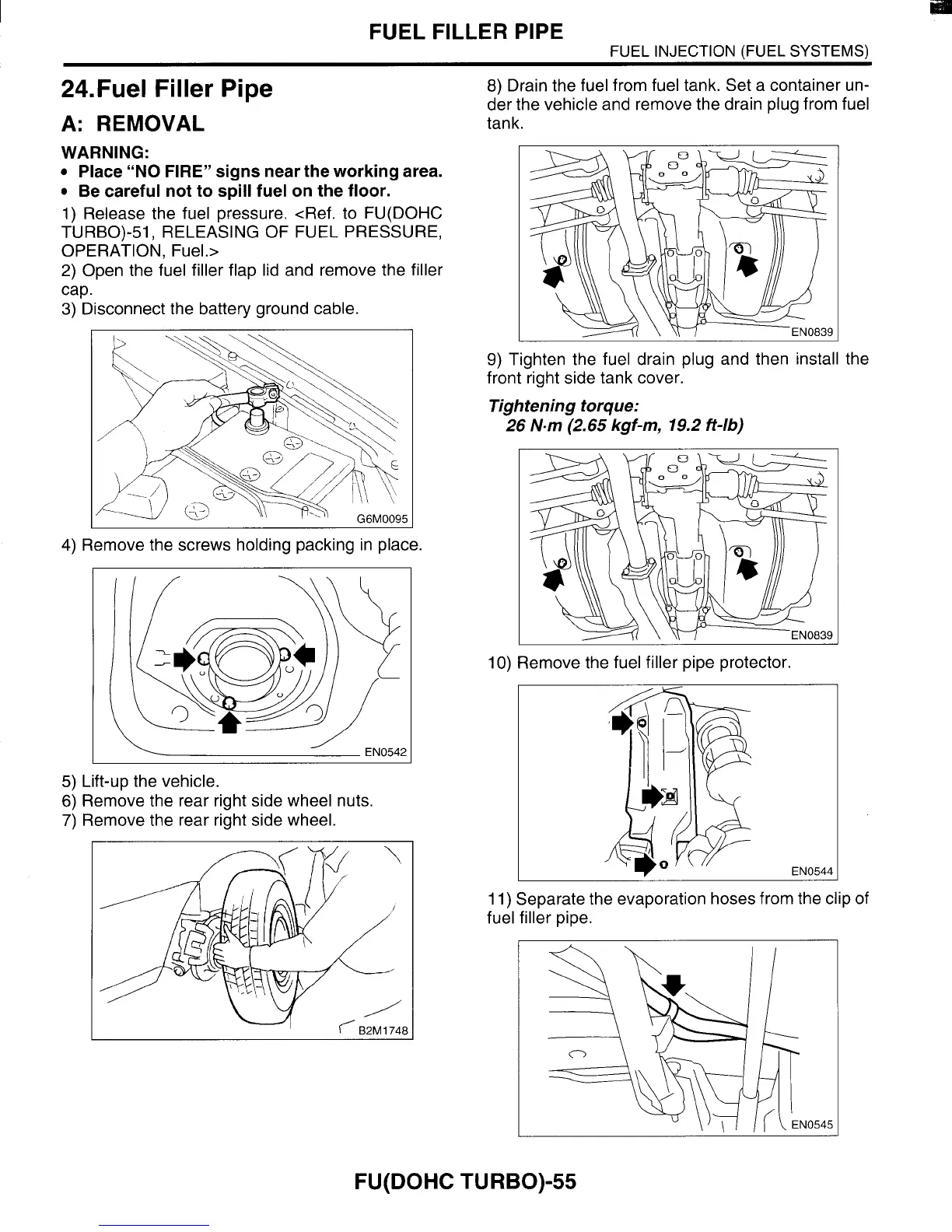

24.Fuel Filler Pipe
A: REMOVAL
WARNING:
Place “NO FIRE” signs near the working area.
Be careful not to spill fuel on the floor.
1) Release the fuel pressure. <Ref. to FU(D0HC
OPERATION, Fuel.>
2) Open the fuel filler flap lid and remove the filler
cap.
3) Disconnect the battery ground cable.
TURBO)-51, RELEASING OF FUEL PRESSURE,
4) Remove the screws holding packing in place.
’ EN0542
5) Lift-up the vehicle.
6) Remove the rear right side wheel nuts.
7) Remove the rear right side wheel.
8) Drain the fuel from fuel tank. Set a container un-
der the vehicle and remove the drain plug from fuel
tank.
9) Tighten the fuel drain plug and then install the
front right side tank cover.
Tightening torque:
26 N-m (2.65 kgf-m, 19.2 ff-lb)
IO) Remove the fuel filler pipe protector.
EN0544
11) Separate the evaporation hoses from the clip of
fuel filler pipe.
FU(D0HC TURBO)-55
